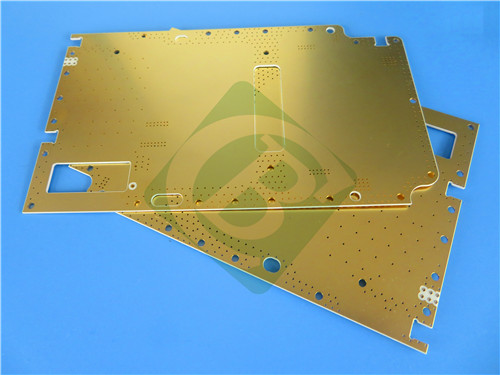

Rogers RO3210 2-Layer 30mil PCB High-Frequency Ceramic Board for Automotive Radar and Wireless Systems
Rogers RO3210 2-Layer 30mil PCB High-Frequency Ceramic Board for Automotive Radar and Wireless Systems
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers RO3210 PCB Material Properties
Rogers RO3210 PCB utilizes advanced ceramic-filled laminates reinforced with woven fiberglass, delivering exceptional electrical performance and mechanical stability. These high-frequency circuit materials combine the surface smoothness of non-woven PTFE laminates for precise line etching with the structural rigidity of woven-glass reinforcements. RO3210 laminates maintain excellent dimensional stability while supporting standard PTFE circuit board processing techniques, making them ideal for high-frequency applications requiring both electrical precision and mechanical reliability.
2. PCB Construction & Specifications
Board Type: 2-Layer Rigid PCB
Base Material: Rogers RO3210 High-Frequency Laminate
Quality Standard: IPC-Class-2
Board Dimensions: 16mm x 8mm (±0.15mm)
Finished Thickness: 0.8mm
Copper Weight: 1oz (35μm) outer layers
Minimum Trace/Space: 4/7 mils
Minimum Hole Size: 0.3mm
Blind Vias: Not Applicable
Via Plating Thickness: 20μm
Surface Finish: Immersion Gold
Solder Mask: Green (Top), None (Bottom)
Silkscreen: White (Top), None (Bottom)
Electrical Test: 100% tested prior to shipment
3. PCB Stackup Configuration
Layer 1: Copper - 35μm
Core: Rogers RO3210 Laminate - 0.762mm (30mil)
Layer 2: Copper - 35μm
4. PCB Statistics
Components: 3
Total Pads: 10
Thru Hole Pads: 6
Top SMT Pads: 4
Bottom SMT Pads: 0
Vias: 5
Nets: 2
5. Artwork & Standards
Type of artwork supplied: Gerber RS-274-X
Quality standard: IPC-Class-2
Availability: worldwide
6. Material Features
Dielectric Constant: 10.2 ± 0.5
Dissipation Factor: 0.0027 @ 10GHz
CTE Values: X-axis 13 ppm/°C, Y-axis 13 ppm/°C, Z-axis 34 ppm/°C
Decomposition Temperature: 500°C (TGA)
Thermal Conductivity: 0.81 W/mk
Flammability Rating: V0 UL 94
7. Performance Benefits
Woven glass reinforcement for improved rigidity and handling
Uniform electrical and mechanical performance for complex multi-layer structures
Low in-plane expansion coefficient matched to copper
Compatibility with epoxy multi-layer board hybrid designs
Reliable surface mounted assemblies
Excellent dimensional stability for high production yields
Superior surface smoothness for finer line etching tolerances
8. Target Applications
Automotive collision avoidance systems
Automotive GPS satellite antennas
Wireless telecommunications systems
Microstrip patch antennas for wireless communications
Direct broadcast satellites
Datalink on cable systems
Remote meter readers
Power backplanes
LMDS and wireless broadband
Base station infrastructure
9. Global Availability
This Rogers RO3210 based PCB solution is available for worldwide manufacturing and distribution, supporting both prototype development and volume production requirements across global markets.
10. Quality Assurance
100% electrical testing prior to shipment
IPC-Class-2 quality standards compliance
High-frequency performance validation
Mechanical stability testing
Thermal reliability verification
