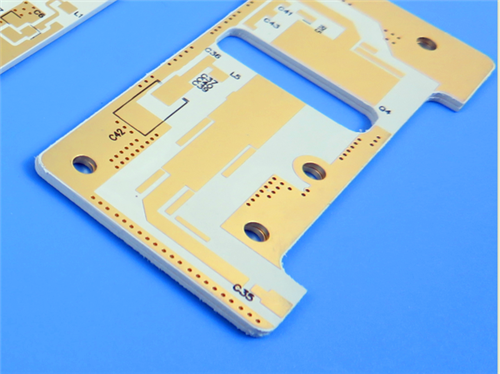

Rogers RO3010 2-Layer PCB 0.635mm High-Dk Circuit Board for RF and Microwave Applications
Rogers RO3010 2-Layer PCB 0.635mm High-Dk Circuit Board for RF and Microwave Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1.Rogers RO3010 PCB Introduction
Rogers RO3010 PCB utilizes advanced ceramic-filled PTFE composite materials that provide a higher dielectric constant with consistent electrical and mechanical stability. This 2-layer 0.635mm thick circuit board offers reliable performance for broadband components and supports circuit miniaturization requirements. Rogers RO3010 material maintains stable characteristics across a wide frequency range, making it suitable for various RF and microwave applications while offering cost-effective manufacturing solutions.
2.PCB Construction Details
Base Material: RO3010
Layer Count: 2-layer
Board Dimensions: 45mm x 65mm (1 PC)
Minimum Trace/Space: 4/4 mils
Minimum Hole Size: 0.3mm
Finished Board Thickness: 0.8mm
Finished Copper Weight: 1 oz outer layers
Via Plating Thickness: 20 μm
Surface Finish: Immersion Gold
Top Silkscreen: Black
Bottom Silkscreen: No
Top Solder Mask: No
Bottom Solder Mask: No
Electrical Test: 100% Tested Prior to Shipment
3.PCB Stackup: 2-Layer Rigid Construction
Copper Layer 1: 35 μm
Rogers RO3010 Substrate: 25mil (0.635mm)
Copper Layer 2: 35 μm
4.PCB Assembly Statistics
Components: 11
Total Pads: 31
Thru Hole Pads: 21
Top SMT Pads: 10
Bottom SMT Pads: 0
Vias: 12
Nets: 2
5.Artwork and Quality Standards
Artwork Format: Gerber RS-274-X
Accepted Standard: IPC-Class-2
Availability: Worldwide
6.Rogers RO3010 Material Features
Dielectric Constant: 10.2 ±0.30 at 10 GHz/23°C
Dissipation Factor: 0.0022 at 10 GHz/23°C
Coefficient of Thermal Expansion: 13 ppm/°C (X), 11 ppm/°C (Y), 16 ppm/°C (Z) from -55 to 288°C
Thermal Decomposition Temperature: >500°C
Thermal Conductivity: 0.95 W/m·K
Moisture Absorption: 0.05%
Operating Temperature Range: -40°C to +85°C
7.Material Benefits
Dimensional stability with expansion coefficient matched to copper
Cost-effective laminate pricing for volume manufacturing
ISO 9001 Certified manufacturing
Compatible with multi-layer board designs
8.Typical Applications
Automotive radar systems
Global positioning satellite antennas
Cellular telecommunications power amplifiers and antennas
Wireless communication patch antennas
Direct broadcast satellite systems
Cable datalink systems
Remote meter reading equipment
Power backplane applications
- 9.Conclusion
Rogers RO3010 PCB provides a stable high-dielectric constant solution for RF and microwave circuits, combining reliable electrical performance with practical manufacturing economics for various communication and automotive applications.
