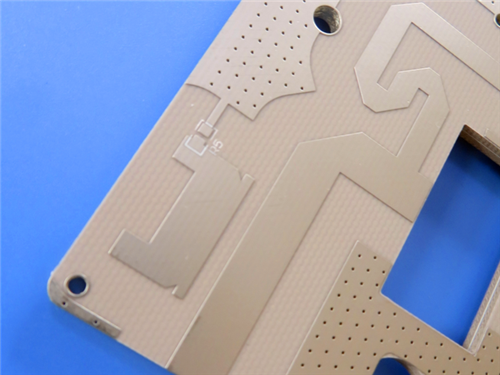

Rogers DiClad 870 2-Layer 93mil Low Dk PCB with Immersion Gold for Radar Feed Networks and Phased Array Systems
Rogers DiClad 870 2-Layer 93mil Low Dk PCB with Immersion Gold for Radar Feed Networks and Phased Array Systems
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
1. Rogers DiClad 870 PCB Introduction
Rogers DiClad 870 PCB utilizes woven fiberglass reinforced PTFE composites with optimized material composition to achieve lower dielectric constant values. By incorporating fewer woven fiberglass plies and higher PTFE content, these laminates deliver reduced dielectric constant and dissipation factors while maintaining mechanical integrity at standard thickness levels, providing enhanced high-frequency performance for advanced RF applications.
2. PCB Construction Details
Specification Category |
Details |
Base Material |
Rogers DiClad 870 |
Layer Count |
2 Layers |
Board Dimensions |
83mm x 35mm (±0.15mm) |
Finished Thickness |
2.5mm |
Copper Weight |
1 oz Outer Layers |
Min. Trace/Space |
5/9 mils |
Min. Hole Size |
0.3mm |
Blind Vias |
None |
Surface Finish |
Immersion Gold |
Solder Mask/Silkscreen |
None |
Electrical Test |
100% |
3. Stackup Structure
This 2-layer configuration employs a substantial DiClad 870 core measuring 2.362mm (93mil) thickness, positioned between two 35μm copper layers to create a robust 2.5mm thick circuit board structure suitable for demanding RF environments.
4. Board Statistics
Components: 11
Total Pads: 40 (24 Thru-Hole, 16 Top SMT)
Vias: 19
Nets: 2
Files: Gerber RS-274-X
Standard: IPC-Class-2
Availability: Worldwide
5. DiClad 870 PCB Material Features
Dielectric Constant: 2.33 @ 10GHz/1MHz
Dissipation Factor: 0.0013 @ 10GHz, 0.0009 @ 1MHz
Thermal Coefficient of Dk: -161 ppm/°C
CTE: X 17/Y 29/Z 217 ppm/°C
Moisture Absorption: 0.02%
Copper Peel Strength: 14 lbs/in
Arc Resistance: >180 seconds
Flammability: UL 94-V0
6. DiClad 870 Key Benefits
Minimum moisture absorption among PTFE composites
Stable dielectric constant across broad frequency spectrum
Wider line widths enabled by low Dk for reduced insertion loss
Excellent thermal stability and mechanical reliability
Optimal balance of electrical and mechanical properties
7. Typical Applications
Radar Feed Networks
Commercial Phased Array Networks
Low Loss Base Station Antennas
Guidance Systems
Digital Radio Antennas
Filters, Couplers and LNAs
