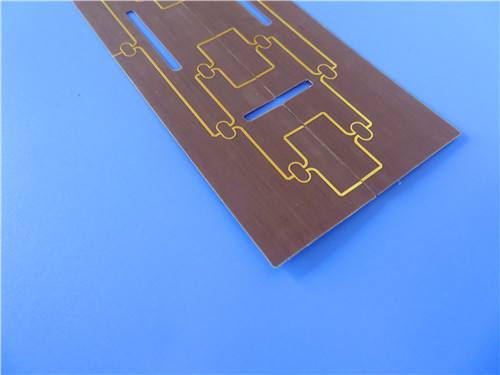

5mil F4BTMS300 laminate 2-layer Immersion Gold PCB for Aerospace Radar Satellite Communication Use

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.



1. Product Introduction

F4BTMS300 2-layer 5mil core high frequency PCB is an aerospace-grade high-reliability microwave circuit board belonging to the upgraded F4BTMS substrate series, optimized and iterated on the basis of traditional F4BTM dielectric materials. This premium polytetrafluoroethylene (PTFE) PCB substrate is structurally reinforced with ultra-thin ultra-fine fiberglass fabric and uniformly filled with high-density nano-ceramic particles, achieving revolutionary upgrades in material formulation and manufacturing technology. Effectively suppressing the glass weave effect during electromagnetic wave transmission, F4BTMS300 substrate features ultra-low dielectric loss, minimized X/Y/Z anisotropy and excellent thermal dimensional stability, delivering stable electrical performance across broadband high-frequency bands up to 40GHz. Standard equipped with RTF low-roughness copper foil, F4BTMS300 2-layer rigid PCB reduces high-frequency conductor loss while maintaining outstanding peel strength, and supports copper or aluminum substrate bonding assembly. Fully processable with conventional PTFE laminate production techniques and compliant with strict IPC-Class-2 quality standards, every finished board undergoes 100% electrical testing before shipment, serving as a high-performance domestic substitute for imported aerospace-grade microwave substrates for global military, aerospace and satellite communication systems.

2. Core Product Features

  1. Precise & Consistent Dielectric Performance: F4BTMS300 substrate provides tight dielectric constant tolerance and excellent batch-to-batch consistency, delivering stable Dk value of 3 at 10GHz and ultra-low dissipation factor of 0.0013 at 10GHz, 0.0015 at 20GHz. It maintains reliable low-loss characteristics throughout frequency ranges up to 40GHz, fully meeting stringent performance demands of phase-sensitive high-frequency applications.
  2. Superior Temperature & Frequency Stability: Features mild temperature variation coefficients for both dielectric constant and dissipation factor, sustaining stable frequency and phase performance within -55℃ to 150℃ wide temperature range. The ultra-low thermal coefficient of Dk effectively prevents electrical parameter drift caused by ambient temperature fluctuations.
  3. Low-Anisotropy & Low-CTE Structural Stability: Optimized X/Y/Z-axis low thermal expansion coefficients and minimized substrate anisotropy ensure excellent thermal dimensional stability, protecting plated through-hole copper structures from thermal stress damage and greatly improving long-term circuit reliability.
  4. Aerospace-Grade Environmental Adaptability: Boasts outstanding radiation resistance to retain stable dielectric and physical properties after dose irradiation, paired with ultra-low outgassing performance that fully complies with aerospace vacuum volatile testing standards. The ultra-low 0.025% moisture absorption rate avoids electrical degradation in humid and vacuum environments.
  5. High Thermal Conductivity & Low-Loss Copper Design: Delivers elevated thermal conductivity of 0.67 W/mk to support stable operation of high-power RF and microwave devices. Adopting standard RTF low-roughness copper foil configuration, it significantly reduces high-frequency conductor loss while maintaining durable bonding peel strength.

3. Product Performance Benefits

  1. Eliminated Glass Weave Effect & Ultra-Low Signal Loss: Unique composite structure of sparse ultra-fine fiberglass fabric and homogeneous nano-ceramic PTFE resin minimizes electromagnetic wave propagation interference, effectively reducing dielectric loss and improving signal integrity for high-precision RF, microwave and phase-sensitive antenna circuits.
  2. Aerospace & Military Extreme Environment Reliability: Integrated advantages of radiation resistance, vacuum low outgassing, low water absorption and wide-temperature stable dielectric properties enable stable operation in extreme aerospace, vacuum and high-low temperature alternating environments, satisfying military-grade quality requirements.
  3. Excellent Processability & High Fabrication Yield: Low substrate anisotropy and superior dimensional stability reduce etching shrinkage and thermal deformation errors during production. Compatible with conventional PTFE PCB manufacturing processes, the material supports fine-line circuitry, dense hole arrays, ultra-thin board fabrication and multi-layer PCB production with high finished product accuracy.
  4. Flexible Assembly & Structural Compatibility: Supports copper and aluminum base bonding assembly, matching premium ENIG surface finish to adapt to diverse high-precision packaging and heat-dissipation structural designs for high-end communication and power microwave equipment.
  5. High-Value Imported Material Substitution: As an upgraded domestic aerospace-grade PTFE ceramic-filled substrate, F4BTMS300 delivers equivalent or superior comprehensive performance compared with foreign mainstream microwave laminates, providing cost-effective, high-reliability substitution solutions for high-end aerospace and military PCB projects.

4. PCB Construction Details

PCB Electrical Properties Tables
Click to expand/collapse the table
Parameter Item Technical Specification
Base Material F4BTMS300 High-Frequency Composite Dielectric Material
Layer Count 2 Layers
Board Dimensions 66.04mm x 78mm (1 Piece), Tolerance +/- 0.15mm
Minimum Trace/Space 4/6 mils
Minimum Hole Size 0.35mm
Blind Vias No Blind Vias Design
Finished Board Thickness 0.25mm
Outer Layer Finished Copper Weight 1 OZ (1.4 mils)
Via Plating Thickness 20 μm
Surface Finish ENIG (Electroless Nickel Immersion Gold)
Top Silkscreen No Silkscreen
Bottom Silkscreen No Silkscreen
Top Solder Mask No Solder Mask
Bottom Solder Mask No Solder Mask
Pre-Shipment Test 100% Electrical Testing

5. PCB Stackup Structure

This 2-layer rigid high frequency PCB adopts ultra-thin 5mil F4BTMS300 core substrate stackup, featuring compact structure, uniform dielectric distribution and excellent high-frequency signal stability:

1. Copper_layer_1: 35 μm
2. F4BTMS300 Core Substrate: 0.127mm (5mil)
3. Copper_layer_2: 35 μm

6. PCB Statistical Parameters

  1. Total Components: 42
  2. Total Pads: 38
  3. Thru Hole Pads: 23
  4. Top SMT Pads: 15
  5. Bottom SMT Pads: 0
  6. Total Vias: 26
  7. Total Nets: 2

7. Production & Quality Standards

  1. Artwork Supply Format: Gerber RS-274-X
  2. Manufacturing Quality Standard: IPC-Class-2
  3. Supply Scope: Worldwide Supply & Service

8. Typical Application Scenarios

Supported by ultra-low dielectric loss, 40GHz broadband stable performance, radiation resistance, vacuum low outgassing and military-grade thermal stability, 5mil F4BTMS300 2-layer high frequency PCB is widely applied in high-end aerospace and defense electronic fields. Core application scenarios include aerospace vehicle equipment, spaceborne and cabin onboard electronic devices, general microwave and RF systems, military radar hardware, antenna feeder networks, phase-sensitive antennas, phased array antenna systems and high-precision satellite communication terminal equipment.

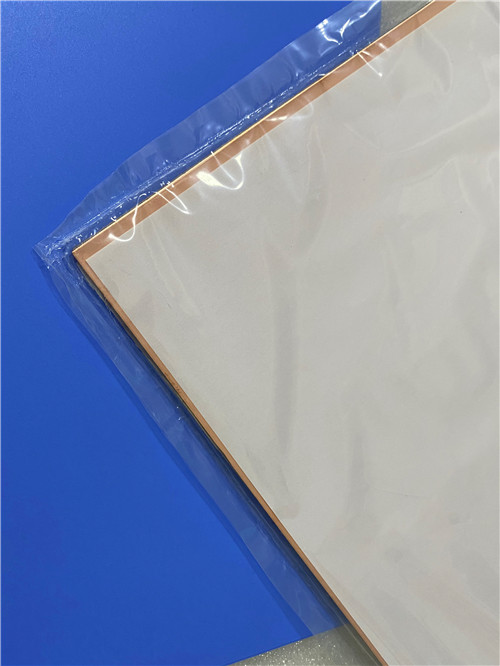

9. F4BTMS300 Copper Clad Laminate (CCL) Knowledge

9.1 F4BTMS300 Thermoset Microwave Laminate Introduction

F4BTMS300 Copper Clad Laminate is an upgraded aerospace-grade PTFE microwave substrate optimized from classic F4BTM series materials, specially developed for high-reliability military and aerospace high-frequency circuit applications. This advanced PCB material adopts a innovative composite formula, consisting of polytetrafluoroethylene (PTFE) resin homogenously blended with massive nano-ceramic particles and sparsely reinforced with ultra-thin ultra-fine fiberglass fabric. The unique material structure greatly eliminates traditional glass weave effect during electromagnetic transmission, effectively reducing dielectric loss and substrate anisotropy while upgrading dielectric strength, thermal conductivity and broadband frequency adaptability up to 40GHz. Pre-laminated with standard RTF low-roughness copper foil, the laminate lowers high-frequency conductor loss and retains excellent peel strength. It supports copper and aluminum substrate compound bonding and fully adapts to conventional PTFE PCB manufacturing processes, providing highly processable and dimensionally stable substrate solutions for ultra-thin, fine-line and high-density high frequency PCB production.

9.2 Core Structural & Physical Properties of F4BTMS300 Laminate

  1. 40GHz Broadband Low-Loss Dielectric Stability: Features tight dielectric constant tolerance and consistent batch performance, maintaining ultra-stable Dk and ultra-low dissipation factor from low frequency up to 40GHz. It guarantees precise and stable phase performance for phase-sensitive microwave and RF circuit systems.
  2. Wide-Temperature Dielectric Consistency: Possesses mild temperature variation coefficients for dielectric constant and loss factor, retaining stable electrical performance throughout -55℃ to 150℃ operating temperature range, suitable for variable-temperature aerospace working conditions.
  3. Low-Anisotropy Low-CTE Thermal Stability: Optimized X/Y/Z-axis low thermal expansion design minimizes thermal stress and dimensional deviation during PCB processing and long-term service, ensuring high reliability of plated through-hole structures and overall board flatness.
  4. Aerospace-Grade Radiation & Vacuum Resistance: Delivers excellent anti-radiation performance to stabilize dielectric and physical properties after irradiation, paired with ultra-low outgassing characteristics that meet aerospace vacuum environment testing standards, ideal for space equipment applications.
  5. High Thermal Conductivity & Moisture Insulation: Elevated thermal conductivity enables efficient heat dissipation for high-power microwave devices, while ultra-low water absorption prevents performance attenuation caused by humid and vacuum environments, enhancing long-term environmental adaptability.

9.3 Key Functional Advantages of F4BTMS300 Substrate

  1. Suppressed Glass Weave Effect & Higher Signal Purity: Nano-ceramic filled and ultra-fine fiberglass reinforced composite structure effectively offsets electromagnetic interference caused by traditional glass weave, achieving purer high-frequency signal transmission and higher circuit stability than ordinary F4 series substrates.
  2. Military & Aerospace Extreme Condition Tolerance: Integrated advantages of radiation resistance, vacuum low outgassing, wide-temperature dielectric stability and low moisture absorption ensure reliable operation in extreme space, aviation and military service environments.
  3. Superior Processability for High-Precision Circuits: Compatible with conventional PTFE PCB production techniques, the substrate supports fine-line circuitry, dense hole arrays, ultra-thin board fabrication and multi-layer backplane manufacturing, delivering high processing accuracy and finished yield.
  4. Versatile Structural & Assembly Compatibility: Flexible bonding with copper and aluminum base materials enhances heat dissipation capability for high-power devices, matching ENIG surface finish to meet diverse high-precision assembly and packaging requirements.
  5. Cost-Effective Import Substitution Solution: Upgraded F4BTMS300 substrate integrates ceramic and fiberglass reinforcement advantages, achieving aerospace-grade high-frequency performance to replace expensive imported microwave laminates and reduce overall project costs.

9.4 Laminate Typical Application Fields

As a new-generation ceramic-filled PTFE microwave PCB material reinforced by ultra-thin ultra-fine fiberglass, F4BTMS300 laminate is dedicated to high-end aerospace, space and military defense electronic systems. It is widely used for manufacturing aerospace equipment, spaceborne and cabin onboard devices, microwave RF systems, military radar hardware, antenna feeder networks, phase-sensitive antennas, phased array antennas and high-precision satellite communication equipment.

11. Product Summary

F4BTMS300 2-layer 5mil PCB is a new-generation aerospace-grade ceramic-filled PTFE microwave circuit board optimized for 40GHz broadband high-frequency and phase-sensitive application scenarios. Adopting upgraded nano-ceramic filled and ultra-fine fiberglass reinforced substrate formula, this ultra-thin 0.25mm rigid PCB eliminates traditional glass weave effect, delivers ultra-low dielectric loss, excellent batch consistency and wide-temperature stable dielectric performance. Equipped with RTF low-roughness copper foil and premium ENIG surface finish, the board features outstanding radiation resistance, vacuum low outgassing, low moisture absorption and high thermal conductivity. Fully compatible with conventional PTFE PCB manufacturing processes and compliant with IPC-Class-2 standards with 100% pre-shipment electrical testing, F4BTMS300 high-reliability PCB serves as a cost-effective imported material substitute, perfectly suited for aerospace equipment, military radar, phased array antenna and satellite communication high-frequency circuit systems.

10. F4BTMS300 DataSheet

Click to expand/collapse the table
Property TEST CONDITIONS UNITS TYPICAL VALUES (F4BTMS300)
Dielectric Constant (Typical Value) 10 GHz - 3.00
Dielectric Constant Tolerance - - ±0.04
Dielectric Constant (Design Value) 10 GHz - 3.0
Dissipation Factor (Typical Value) 10 GHz - 0.0013
Dissipation Factor (Typical Value) 20 GHz - 0.0015
Dissipation Factor (Typical Value) 40 GHz - 0.0019
Thermal Coefficient of Dielectric Constant -55°C to 150°C ppm/°C -20
Copper Peel Strength 1 OZ RTF Copper Foil N/mm >1.2
Volume Resistivity Normal Condition MΩ·cm ≥1×10⁸
Surface Resistivity Normal Condition ≥1×10⁸
Dielectric Strength (Z-direction) 5KW, 500V/s KV/mm >40
Breakdown Voltage (XY-direction) 5KW, 500V/s KV >52
Coefficient of Thermal Expansion (X, Y-direction) -55°C to 288°C ppm/°C 10~11
Coefficient of Thermal Expansion (Z-direction) -55°C to 288°C ppm/°C 22
Thermal Stress Resistance 260°C, 10s, 3 cycles - No Delamination
Moisture Absorption 20±2°C, 24 hours % 0.025
Density Normal Temperature g/cm³ 2.28
Long-Term Operating Temperature Temperature & Humidity Chamber °C -55~+260
Thermal Conductivity Z-direction W/(m·K) 0.58
Flame Retardancy - UL-94 V-0
Material Composition - - PTFE, Ultra-Thin Ultra-Fine Glass Fiber, Ceramic
