What circuit boards do we do?(48) RO4830 High Frequency PCB
What circuit boards do we do?(48)
RO4830 High Frequency PCB
Shot 1: Introduction
Rogers' RO4830 high frequency laminates are thermoset materials that provide a dependable and cost-effective substitute for traditional PTFE based laminates.
RO4830 thermoset laminates are particularly suitable for millimeter wave applications that require cost-efficiency, such as automotive radar sensors operating in the 76-81 GHz frequency range. These laminates can be manufactured using standard FR-4 processes and are specifically designed for use as cap layers in FR-4 multi-layer board designs commonly employed in PCB applications for 76-81 GHz automotive radar sensors.
Shot 2: Features

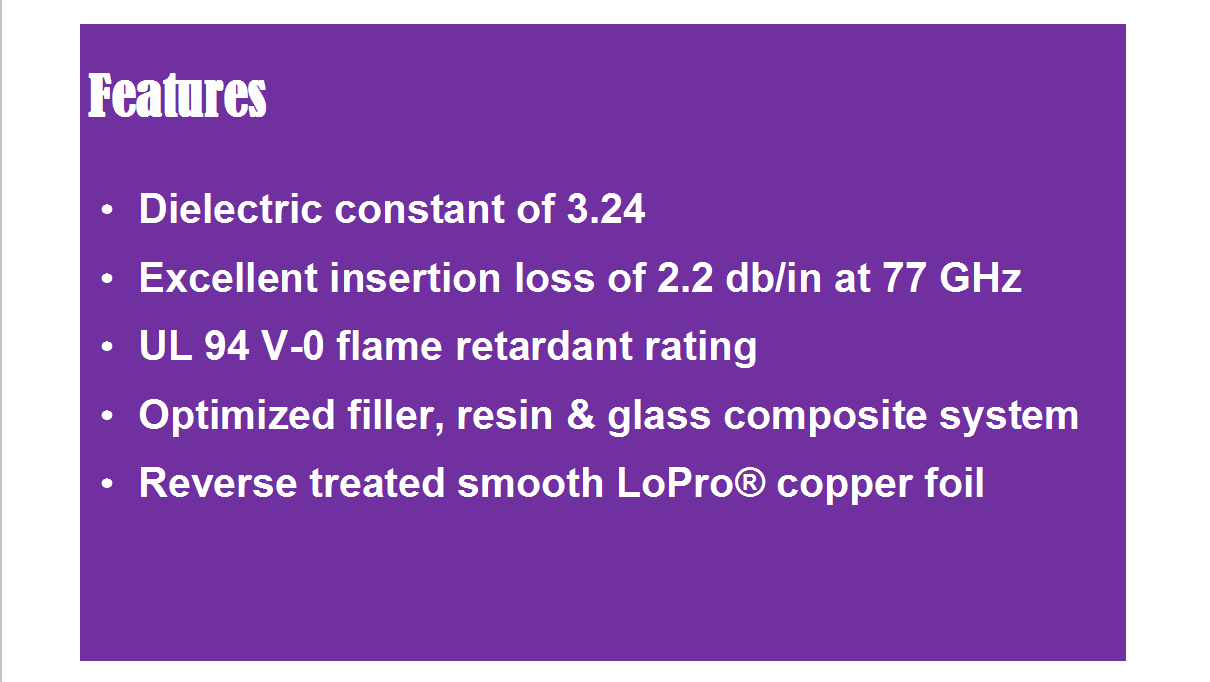

RO4830 has a dielectric constant of 3.24, making it an excellent choice for high-frequency applications.
It exhibits an impressive insertion loss of just 2.2 dB/in for 5mil thickness and reduced to 1.8 dB/in for 9.4mil thickness at 77 GHz. This low insertion loss helps to maintain signal integrity even at high frequencies, resulting in reliable and accurate data transmission.
The laminates hold a UL 94 V-0 flame retardant rating and feature an optimized filler, resin, and glass composite system.
The laminates utilize reverse treated smooth LoPro® copper foil to improves signal quality and contributes to more efficient and consistent electrical performance.
Shot 3: PCB Capability
We offer a wide range of capabilities to meet your specific needs.
Rogers RO4830 PCBs can be designed as single-sided, double-sided, multi-layer, or hybrid configurations.
When it comes to copper weight, we provide options for 1oz (35µm) and 2oz (70µm).
There’re two dielectric thickness for RO4830 PCBs, i.e. 5mil (0.127mm) and 9.4mil (0.239mm).
We can accommodate dimensions up to 400mm x 500mm and you have the freedom to select from a variety of solder mask colors, including green, black, blue, yellow, red, and more.
We also offer a diverse range of surface finish options to meet your specific requirements, including immersion gold, HASL, immersion silver, immersion tin, ENEPIG, OSP, bare copper, pure gold etc.
PCB Capability (RO4830) |
|
PCB Material: |
Hydrocarbon/ Ceramic/ Spread Woven Glass |
Designation: |
RO4830 |
Dielectric constant: |
3.24 |
Dissipation factor |
0.0033-0.0032 |
Layer count: |
Single Sided, Double Sided, Multi-layer PCB, Hybrid PCB |
Copper weight: |
1oz (35µm), 2oz (70µm) |
Dielectric thickness |
5mil (0.127mm), 9.4mil (0.239mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Immersion gold, HASL, Immersion silver, Immersion tin, ENEPIG, OSP, Bare copper, Pure gold etc.. |
Shot 4: Applications

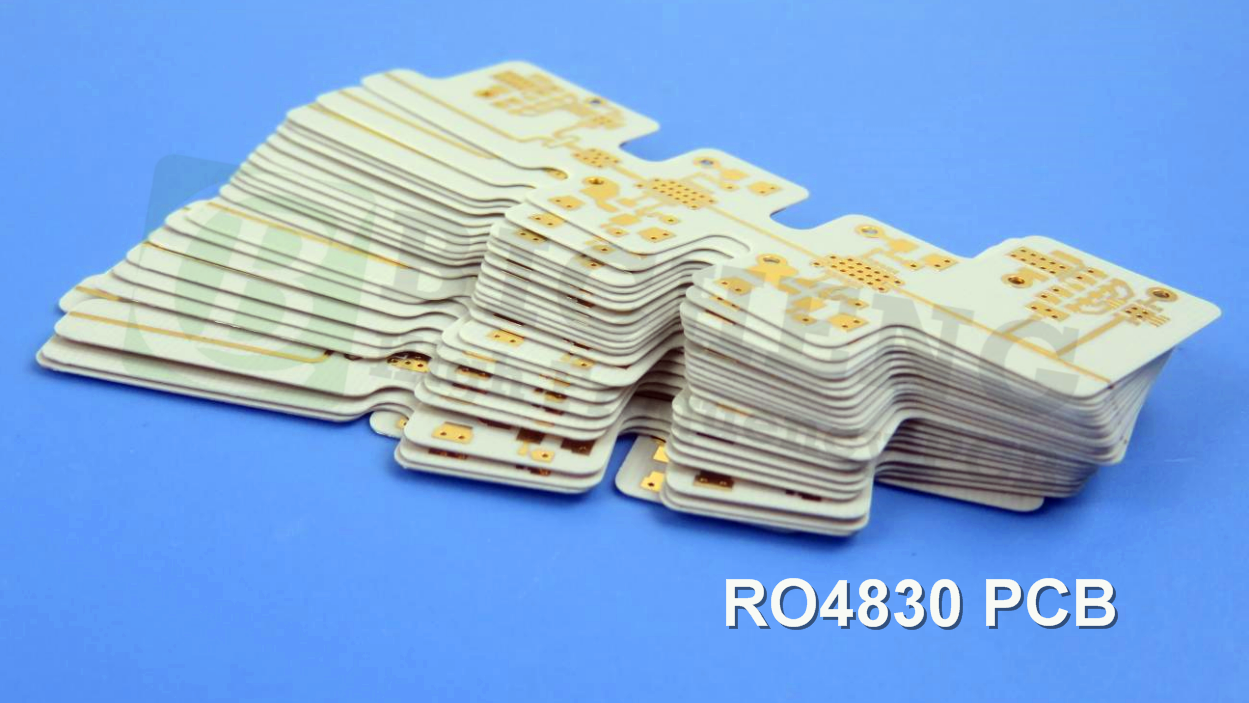

Rogers RO4830 PCBs are intended used for 76-81 GHz automotive radar sensors as well as automotive radar antennas etc.
