RO3206 High Frequency PCB
Shot 1: Introduction
Rogers RO3206 high frequency PCB materials are laminates that contain ceramic fillers and are reinforced with woven fiberglass. These materials have been specifically engineered to provide exceptional electrical performance and mechanical stability while maintaining competitive pricing. They are an extension of the RO3000 series high frequency circuit materials, with the notable improvement of enhanced mechanical stability.

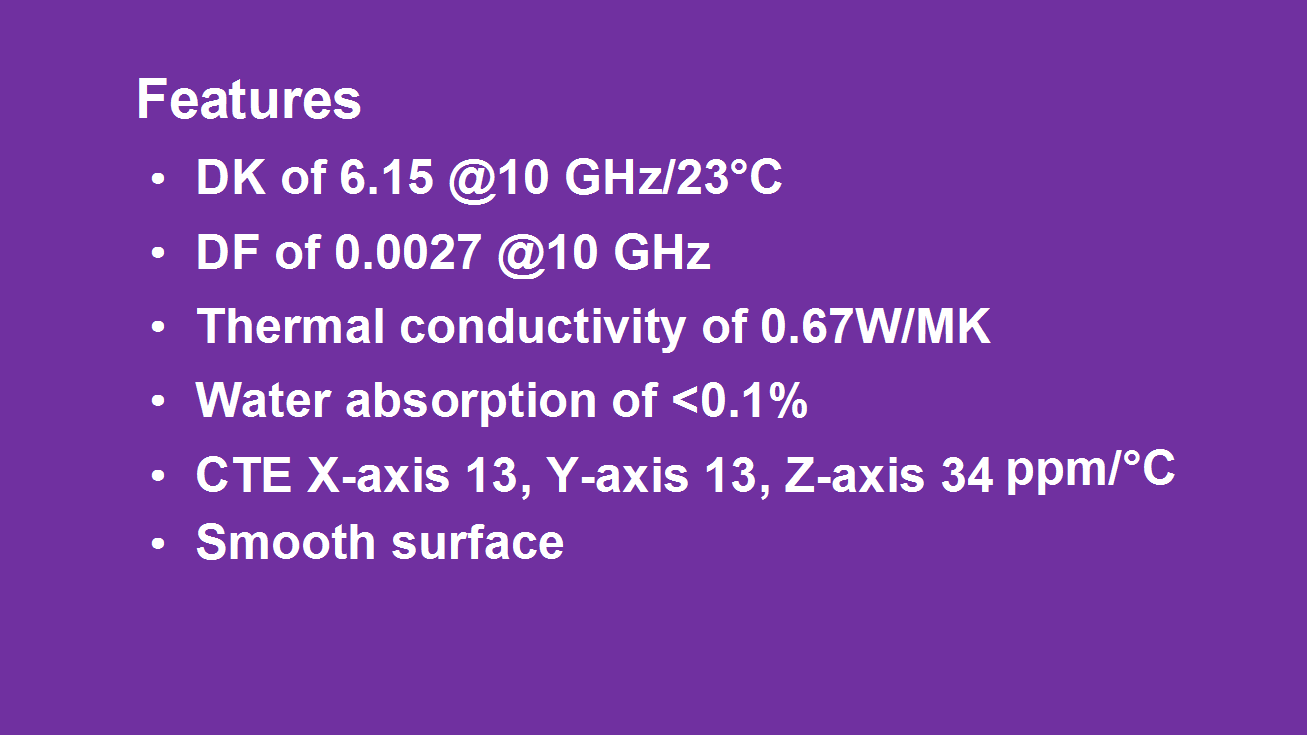

Shot 2: Features & Benefits:
Rogers RO3206 laminate stands out for its exceptional circuit material properties.
With a dielectric constant of 6.15 and tight tolerance at 10 GHz/23°C, it delivers superior electrical performance.
The low dissipation factor of 0.0027 at 10GHz minimizes signal loss, coupled with a high thermal conductivity of 0.67 W/MK for efficient heat dissipation.
With less than 0.1% low moisture absorption and a well-matched copper coefficient of thermal expansion (CTE) of 13, 13, and 34 ppm/°C across all axes, RO3206 laminate ensures functional stability within intricate multi-layer structures and compatibility with epoxy multilayer board hybrid designs
The woven glass reinforcement enhances rigidity, making it easier to handle during manufacturing.
Furthermore, the material's surface smoothness allows for precise PCB designs with fine line etching tolerances.
Shot 3: PCB Capability
I'm excited to introduce you to the remarkable PCB capabilities we offer for RO3206.
First up. let's talk about layer count. The options of Single Sided, Double Sided, Multi-layer PCB, and Hybrid PCB catering to your various design requirements.
Next, consider the copper weight. The choices of 1oz (35µm) and 2oz (70µm) providing flexibility for different applications.
Move on to dielectric thickness. Variants of 25mil (0.635mm) and 50mil (1.27mm) allowing for customization based on design specifications.
In terms of size, we can support up to 400mm X 500mm, accommodating a range of board dimensions.
We have a variety of solder mask color options. You can choose from Green, Black, Blue, Yellow, Red, and more.
Finally, let's discuss surface finishes. We offer a comprehensive selection, including Immersion gold, HASL, Immersion silver, Immersion tin, ENEPIG, OSP, Bare copper, and Pure gold plated.
PCB Capability (RO3206) |
|
PCB Material: |
Ceramic-filled Laminates Reinforced with Woven Fiberglass |
Designation: |
RO3206 |
Dielectric constant: |
6.15 |
Dissipation factor: |
0.0027 |
Layer count: |
Single Sided, Double Sided, Multi-layer PCB, Hybrid PCB |
Copper weight: |
1oz (35µm), 2oz (70µm) |
Dielectric thickness: |
25mil (0.635mm), 50mil (1.27mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red, Purple etc. |
Surface finish: |
Immersion gold, HASL, Immersion silver, Immersion tin, ENEPIG, OSP, Bare copper, Pure gold plated etc.. |

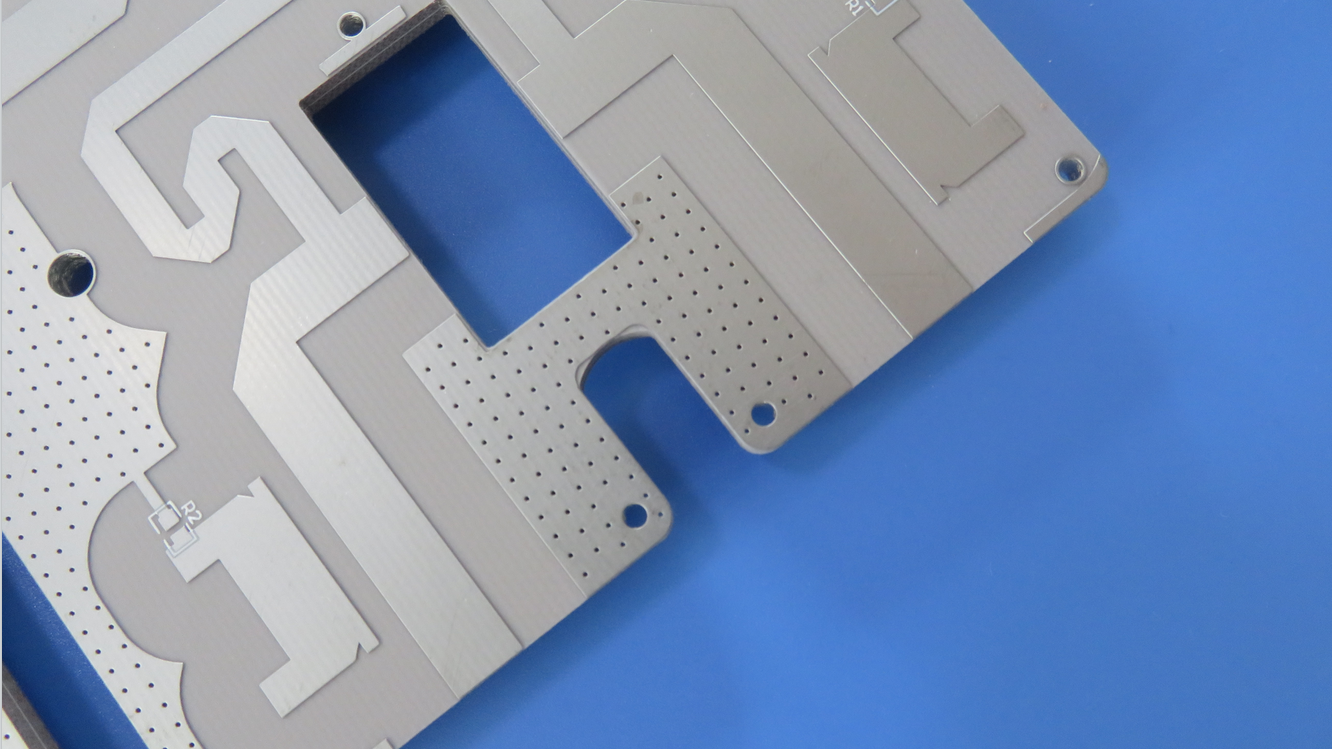

Shot 4: Applications
Rogers RO3206 PCBs find applications across a diverse range of industries, including automotive GPS antennas, base station infrastructure, direct broadcast satellites, cable data links, microstrip patch antennas and so on.
Thank you for joining us today. I’ll see you next time.
