Rogers PCB

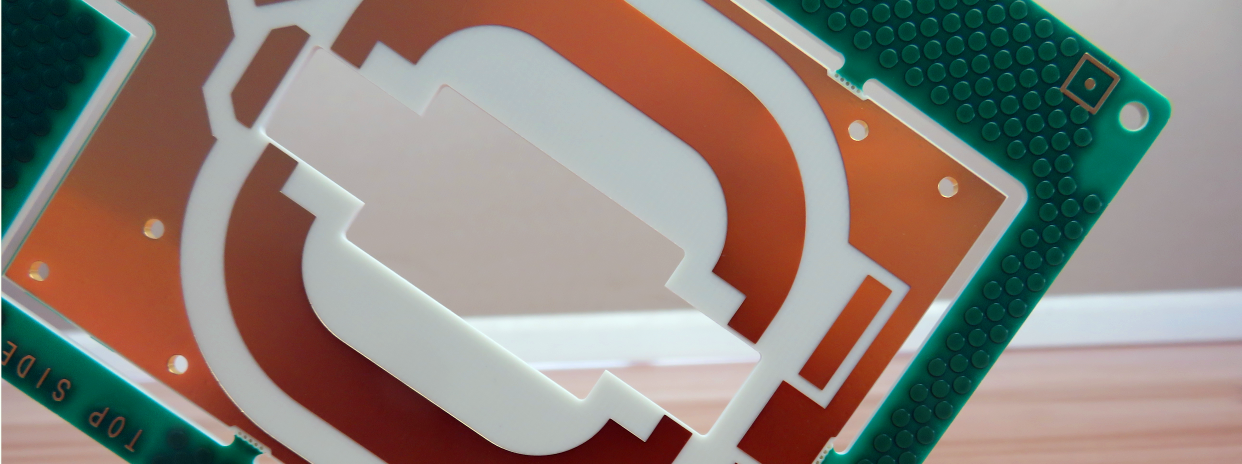

Rogers high-frequency materials are specifically designed and produced by Rogers Corporation, a world-leading manufacturer of high-performance dielectrics, high-frequency laminates, and prepregs. The unique advantages of Rogers PCBs lie in their low dielectric constant and low loss characteristics, as well as their excellent thermal management capabilities and chemical resistance. Additionally, the design of Rogers PCBs allows for higher circuit density and more complex layouts, enabling engineers to integrate more functionality within a limited space. This makes them an ideal choice for high-performance electronic devices. For example，they are widely utilized in microwave and RF printed circuits and related applications in Aerospace & Defense, Wireless & Wireline (digital) Infrastructure, Automotive Radar Sensor, Satellite TV, Mobile Internet Device and High End Chip Scale Packaging.

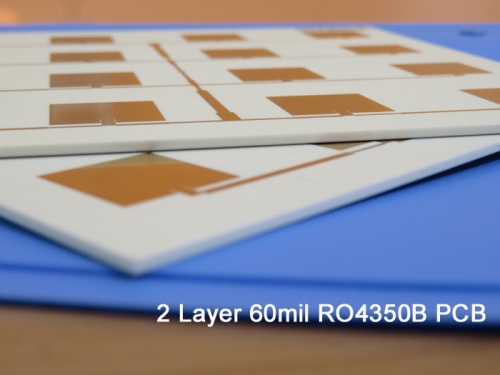

2 Layer PCB Rogers 60mil (1.524mm) RO4350B RF Circuit Board for Patch Antenna

RO4350B hydrocarbon ceramic laminates offer outstanding high-frequency performance and low-cost circuit fabrication. At 500 MHz and above, designer options shrink, but RO4350B is suitable. It has properties for RF circuits and transmission lines. Its low dielectric loss is useful in high-frequency applications. The material has a low dielectric constant temperature coefficient and remains stable across a wide frequency range.

Tags:

High Performance 2 Layers RO4350B PCB

Low dielectric loss Rogers Substrate

60mil RF RO4350B PCB

Rogers RO4350B PCB for Sale

Rogers RO4350B Datasheet

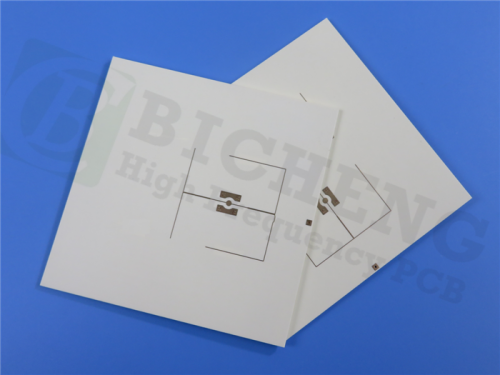

60mil High Frequency PCB RO4003C On DK3.38 Double Sided with High Tg288℃

RO4003C ceramic laminates excel in high-frequency performance and cost-effective circuit fabrication, especially at frequencies above 500 MHz. Its low dielectric loss and stable dielectric constant over a wide frequency range make it ideal for RF microwave circuits and transmission lines. RO4003C's CTE is similar to copper, offering excellent dimensional stability for multi-layer boards. Its low Z-axis CTE ensures reliable plated through-holes, and its high Tg of >280°C maintains stable expansion characteristics during PCB processing.

Tags:

2-Layer Rogers RO4003C PCB

low CTE Rogers RO4003C Substrate

low TCDK Material

60mil High Tg288℃ laminates

DK3.38 Rogers RO4003C PCB

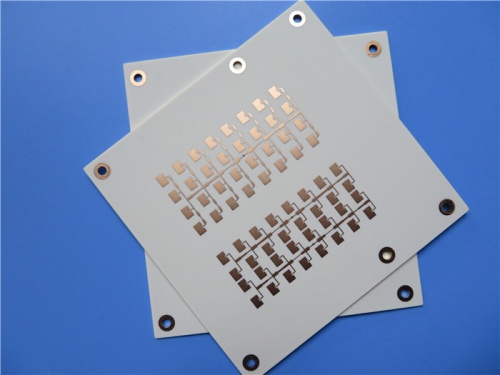

Rogers Microwave PCB 20mil 0.508mm RO4003C Double Sided RF Printed Circuit Board

RO4003C hydrocarbon ceramic laminates exhibits a notably low temperature coefficient of dielectric constant, ensuring stability across frequencies. Its CTE matches copper's, providing crucial dimensional stability for multi-layer boards. Its low Z-axis CTE ensures reliable plated through-holes under intense heat, with a high Tg of over 280°C maintaining consistent expansion in PCB production.

Tags:

Rogers R04003C PCB Supplier

20 mil R04003C Substrate

0.508mm RF Printed Circuit Board

R04003C Data Sheet

Rogers R04003C Dielectric Constant

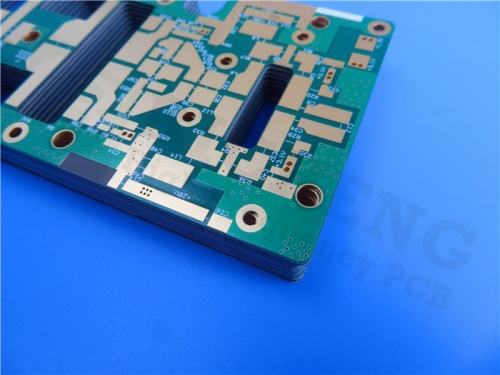

10mil 0.254mm Rogers RT/Duroid 5870 High Frequency PCB for Commercial Aireline Broadband Antennas

Rogers RT/duroid 5870 is a high-frequency material made of glass microfiber reinforced PTFE composites, designed for demanding circuit applications. Its uniform dielectric constant, due to randomly oriented microfibers, spans panels and a wide frequency range. The low dissipation factor suits it for Ku-band and beyond.

Tags:

Low Dielectric Loss Substrate

RT/duroid 5870 High-Frequency PCB

Glass Microfiber PTFE PCB

Rogers RT/duroid 5870

10 mil RT/duroid 5870

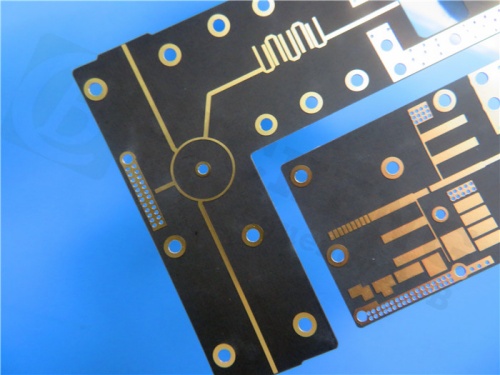

Rogers RT/Duroid 5870 High Frequency 15mil 0.381mm PCB with Immersion Gold Surface Finish

Rogers RT/duroid 5870 is a high-frequency material composed of glass microfiber-reinforced PTFE composites, which is specifically designed for stripline and microstrip circuits. It features a uniform dielectric constant that remains stable over a wide frequency range, thanks to its randomly oriented microfibers. The low dissipation factor suits Ku-band and higher frequencies. It's easy to cut, shear, and machine, and resists common solvents and reagents in PCB processing.

Tags:

RT/duroid 5870 Specifications

RT/duroid 5870 Loss Tangent

Rogers RT/duroid 5870 Price

RT/duroid 5870 Dielectric Constant

RT/duroid 5870 Datasheet

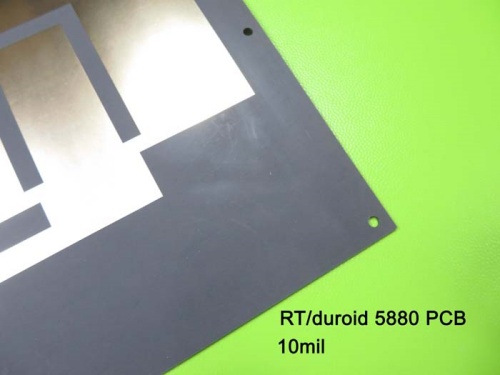

RT/Duroid 5880 10mil 0.254mm Rogers High Frequency PCB for Microstrip and Stripline Circuits

Rogers RT/duroid 5880 is a glass microfiber reinforced PTFE composite designed for precision stripline and microstrip circuits. It offers excellent dielectric constant uniformity and a low dissipation factor, suitable for Ku-band applications. Easily machinable and resistant to solvents, it's used in commercial broadband antennas, military radar systems, and digital radio antennas.

Tags:

RT/Duroid 5880 Substrate

Rogers RT/Duroid 5880 for Sale

10mil RT/Duroid 5880 Thickness

RT/Duroid 5880 Loss Tangent

RT/Duroid 5880 PCB

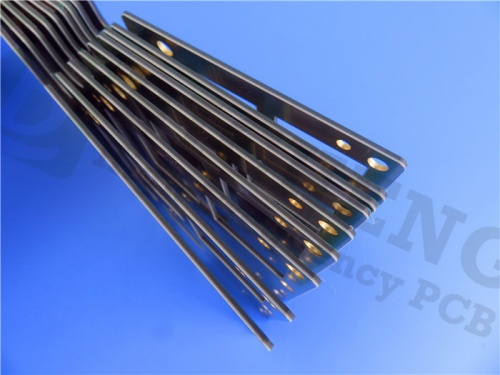

15mil 0.381mm RT/Duroid 5880 Rogers High Frequency PCB for Millimeter Wave Applications

Rogers RT/duroid 5880 is a glass microfiber reinforced PTFE composite ideal for high-frequency applications. Designed for stripline and microstrip circuits, it ensures reliable communication in airline broadband antennas and military systems. Its consistent dielectric constant and low dissipation factor benefit millimeter-wave and digital radio applications. Easy to cut and machine, it also resists common etching and plating solvents.

Tags:

RT/Duroid 5880 High Frequency PCB

Rogers RT/Duroid 5880 Price

15mil RT/Duroid 5880 PCB Thickness

RT/Duroid 5880 Datasheet

Low Dielectric Loss Substrate

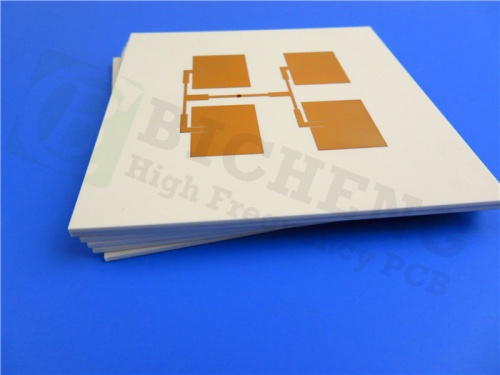

10mil 2-Layer Rogers 3003 Circuit Board Rogers RO3003 High Frequency PCB DK3.0 DF 0.001 Microwave PCB

Rogers RO3003 high - frequency circuit materials are ceramic - filled PTFE composites for commercial microwave and RF applications. They offer great electrical and mechanical stability at competitive prices. With consistent mechanical properties, designers can make multi - layer boards without warpage or reliability problems. RO3003 has an X and Y - axis CTE of 17 ppm/°C, matching copper for good dimensional stability. Etch shrinkage is usually under 0.5 mils per inch post - etching and baking. The Z - axis CTE is 24 ppm/°C, ensuring high - reliability for plated through - holes, even in tough environments.

Tags:

Rogers RO3003 Tg

Rogers RO3003 Thickness

RO3003 Material

Rogers RO3003 Substrate

RO3003 Loss Tangent

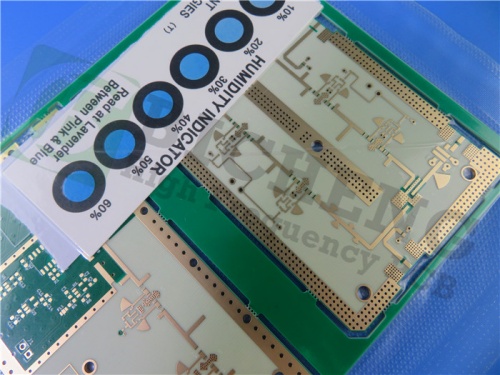

Double Layer 10mil Rogers 3035 Circuit Board Rogers RO3035 High Frequency PCB DK3.5 DF 0.0015 Microwave PCB

Rogers RO3035, ceramic - filled PTFE composites, is for commercial microwave and RF uses. It offers great electrical and mechanical stability at good prices. With consistent mechanical properties, it helps designers make multi - layer boards without warpage or reliability issues. Its X and Y - axis CTE is 17 ppm/℃, matching copper for dimensional stability. Etch shrinkage is less than 0.5 mils per inch after etching and baking. The 24 ppm/℃ Z - axis CTE ensures reliable plated through - holes in tough environments.

Tags:

Rogers RO3035 Material

Rogers RO3035 Datasheet

RO3035 PCB

Rogers RO3035 Thickness

RO3035 Specifications

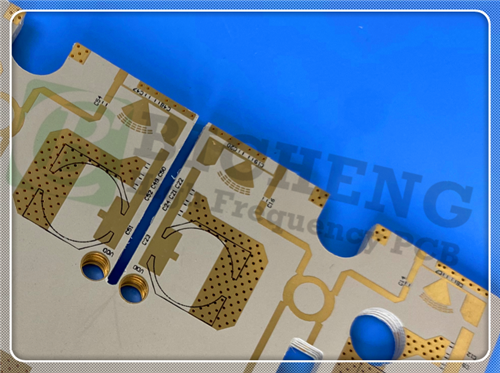

Rogers RO3006 High Frequency Printed Circuit Board 2-Layer Rogers 3006 10mil PCB DK6.15 DF 0.002 Immersion Gold PCB

Rogers RO3006 high - frequency materials, ceramic - filled PTFE composites, are for commercial microwave and RF. Engineered for good stability at a competitive cost, their uniform properties let designers make multi - layer boards without warping or reliability problems. RO3006 has 17 ppm/℃ CTE in X and Y directions, equal to copper for good dimensional stability and less than 0.5 mils per inch etch shrinkage after etch and bake. Its 24 ppm/℃ Z - axis CTE ensures reliable plated through - holes in severe conditions.

Tags:

Rogers 3006 datasheet

10mil Rogers 3006 Thickness

Rogers RO3006 Price

RO3006 Online Purchase

RO3006 Substrate
