| High speed PCB |
| |
|

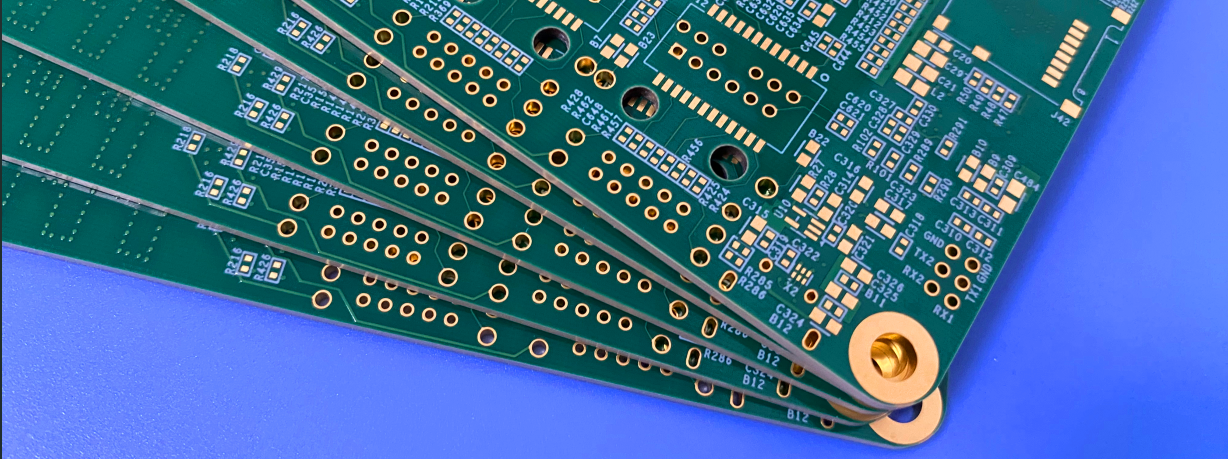

High speed PCBs are specialized circuit boards designed to handle high-frequency signals and fast data transmission. These PCBs are essential in modern electronic devices, particularly in telecommunications, computing, and consumer electronics, where rapid signal processing is crucial. One of the key characteristics of high-speed PCBs is their ability to minimize signal loss and electromagnetic interference. This is achieved by making use of advanced materials, for instance, low-loss dielectric substrates which help to maintain signal integrity when operating at high frequencies. Moreover, high-speed PCBs often incorporate techniques like controlled impedance, differential signaling and careful routing of traces that further enhance the board's ability to optimize performance and ensure efficient data transfer without compromising quality. |
|
|
.JPG) |

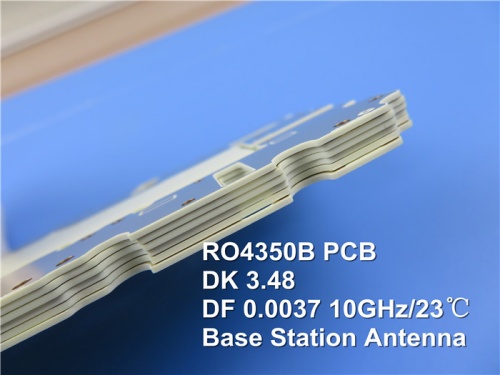

| 0.254mm 10mil High Frequency PCB Rogers RO4350B Double Sided RF PCB for LTE |
RO4350B hydrocarbon ceramic laminates are optimized for high-speed PCBs, offering excellent high-frequency performance and cost-effective fabrication. With low dielectric loss and stable dielectric constant across a wide frequency range, they are ideal for RF microwave circuits and controlled impedance transmission lines. The material's CTE matches copper, ensuring dimensional stability for multi-layer boards, while its low Z-axis CTE ensures reliable plated through-holes under thermal stress. A high Tg (>280°C) guarantees stability throughout PCB processing, making RO4350B perfect for demanding high-speed applications. |
Tags:
| Rogers RO4350B Datasheet PDF |
RO4350B Dielectric Constant |
10mil RF RO4350B PCB |
Rogers RO4350B Material |
Rogers RO4350B Datasheet |
|
|
| |
|
.png) |
| Rogers 4003C 12mil 0.305mm High Frequency Circuit Board for Antennas Immersion Gold |
| RO4003C hydrocarbon ceramic laminates excel in high-frequency performance and cost-effective circuit fabrication, especially crucial at frequencies above 500 MHz where options narrow. They cater to RF microwave circuit designers, matching networks, and controlled impedance lines, offering low dielectric loss ideal for high-speed applications that conventional materials can't handle. |
Tags:
2-Layer Rogers 4003C Hybird PCB |
Rogers 4003C RF microwave Circuit Board |
12mil Rogers 4003C Material PCB |
Low Dielectric Loss 4003 PCB |
Double Sided 4003C Substrate |
|
|
| |
|
 |

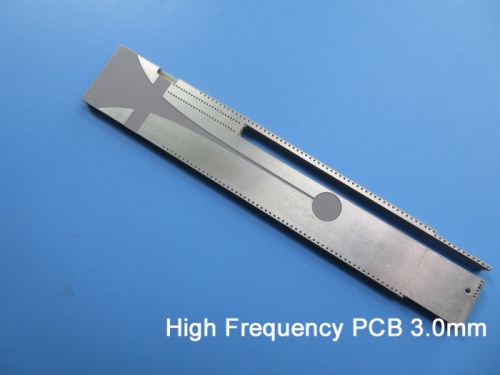

| Customized Double Sided 3.0mm F4BTM298 RF PCB Board with Immersion Tin |
| This is a double-sided high-frequency PCB designed for patch antenna applications, built on a 3.0 mm F4BTM298 substrate. It uses F4BTM series materials—comprising glass fiber cloth, nano-ceramic fillers, and polytetrafluoroethylene resin—produced through precise formulation and pressing. These materials enhance the F4BM dielectric layer with high-dielectric, low-loss nanoscale ceramics, achieving a higher dielectric constant, improved heat resistance, lower thermal expansion, greater insulation resistance, and better thermal conductivity while maintaining low-loss characteristics. |
Tags:
2-Layer F4BTM298 PTFE Material |
3.0mm F4BTM298 Substrate |
High Dielectric Constant PCB |
F4B Substrate Datasheet |
F4BTM Series Materials |
|
|
| |
|
.jpg) |

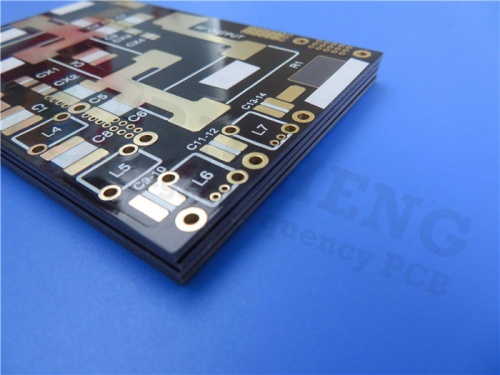

| 62mil 1.575mm Rogers RT/Duroid 5870 High Frequency PCB for Point To Point Digital Radio Antennas |
| Rogers RT/duroid 5870, a high-frequency composite material, is reinforced with glass microfiber and built upon PTFE. It is particularly perfect for stripline and microstrip circuits because of its consistent dielectric constant and low dissipation factor, which allows it to perform optimally at Ku-band frequencies and beyond. Furthermore, this material is easy to shape and shows strong resistance against solvents that are commonly used in circuit etching and plating operations. Its typical applications cover broadband antennas in commercial airlines, military radar, missile guidance systems, and millimeter wave technologies. |
Tags:
| 62mil RT/Duroid 5870 PCB Thickness |
Rogers RT/Duroid 5870 Datasheet |
Rogers RT/Duroid 5870 Price |
Rogers RT/Duroid 5870 Material |
RT/Duroid 5870 Specifications |
|
|
| |
|
.JPG) |
| 1.575mm 62mil Rogers RT/Duroid 5880 High Frequency PCB for Commercial Aireline Broadband Antennas |
Rogers RT/duroid 5880 is a glass microfiber reinforced PTFE composite designed for precise stripline and microstrip circuits. Its randomly oriented microfibers ensure uniform dielectric constant across panels and frequencies. With a low dissipation factor suitable for Ku-band and higher applications, it is easy to cut and machine, and resistant to common etching and plating solvents. It’s used in broadband antennas for commercial airlines, millimeter-wave applications, military radar, missile guidance, and point-to-point digital radio antennas. |
Tags:
RT/Duroid 5880 Substrate |
Rogers RT/Duroid 5880 for Sale |
62mil RT/Duroid 5880 Thickness |
RT/Duroid 5880 Loss Tangent |
RT/Duroid 5880 PCB |
|
|
| |
|
.png) |

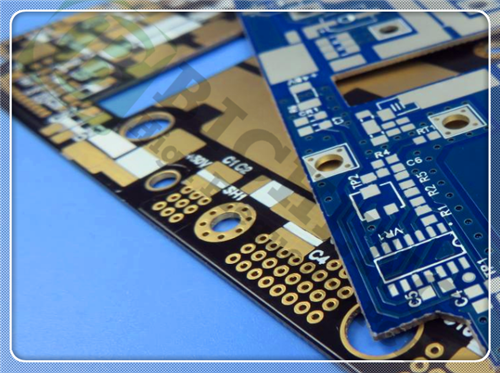

| 30mil 0.762mm RF-35TC High Frequency Printed Circuit Board with Black Solder Mask for Antennas |
| The high - frequency materials for RF - 35TC PCB from Taconic, designed for high - power & high - performance apps, feature a unique PTFE substrate and ceramic filling tech, ensuring low loss, high thermal conductivity and long - term stability. Advantages include a low dielectric constant (3.50) and loss tangent (0.0011) for better signal integrity, high thermal conductivity for effective heat dissipation to extend component lifespan, and oxidation resistance, non - yellowing, with stable & reliable performance. |
Tags:
2-Layer Taconic RF-35TC PCB |
RF-35TC High Frequency PCB |
Taconic RF-35TC Material |
30mil Taconic RF-35TC Thickness |
Taconic RF-35TC Price |
|
|
| |
|
.jpg) |

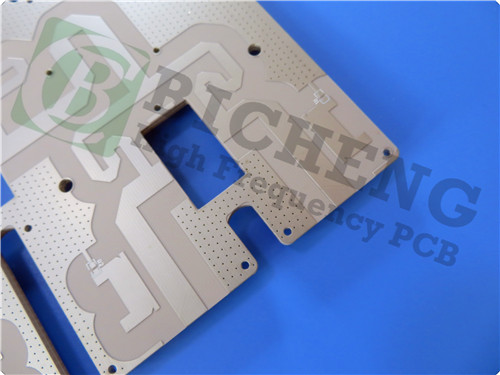

| 60mil 1.524mm Taconic RF-35TC High Frequency PCB with Immersion Gold for Satellites |
| The RF-35TC PCB from Taconic is designed for high-power and high-performance applications, featuring a PTFE substrate with ceramic filling. It provides low loss, high thermal conductivity, and long-term stability, with a dielectric constant of 3.50 and a loss tangent of 0.0011 for enhanced signal integrity. Its properties include effective heat dissipation, oxidation resistance, and non-yellowing reliability. The RF-35TC laminates are ideal for antennas, satellites, filters, couplers, and power amplifiers. |
Tags:
Taconic RF-35TC Substrate |
Taconic RF-35TC for Sale |
60mil Taconic RF-35TC Thickness |
Taconic RF-35TC Loss Tangent |
Taconic RF-35TC PCB |
|
|
| |
|
.jpg) |

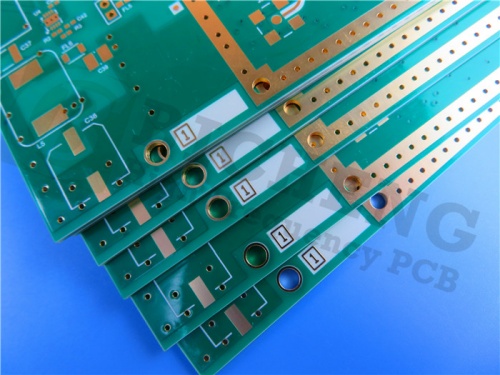

| 2-Layer Rogers 3003 20mil Circuit Board Rogers RO3003 Microwave PCB DK3.0 DF 0.001 High Frequency PCB |
| Rogers RO3003, ceramic - filled PTFE composites, are for commercial microwave and RF uses. They provide excellent electrical and mechanical stability at affordable prices. Their stable mechanical traits allow designers to create multi - layer board designs without warpage or reliability issues. RO3003 has a 17 ppm/°C CTE in the X and Y axes, like copper for dimensional stability. Etch shrinkage is typically less than 0.5 mils per inch after etching and baking. The 24 ppm/°C Z - axis CTE ensures reliable plated through - holes in harsh conditions. |
Tags:
Rogers RO3003 Tg |
Rogers RO3003 Thickness |
RO3003 Material |
Rogers RO3003 Substrate |
RO3003 Loss Tangent |
|
|
| |
|
.jpg) |
| 0.762mm 30mil Rogers RO3003 High Frequency Printed Circuit Board 2-Layer Rogers 3003 PCB with Low CTE |
| RO3003 from Rogers are ceramic - filled PTFE composites for commercial microwave and RF applications. They offer outstanding electrical and mechanical stability at competitive costs. The consistent mechanical properties let designers build multi - layer boards without facing warpage or reliability troubles. RO3003 has an X/Y - axis CTE of 17 ppm/°C, which matches copper for dimensional stability. Usually, etch shrinkage is less than 0.5 mils per inch after etching and baking. The Z - axis CTE of 24 ppm/°C guarantees reliable plated through - holes even in harsh environments. |
Tags:
Rogers RO3003 Bondply |
RO3003 PCB Dielectric Constant |
Rogers RO3003 Datasheet |
Rogers RO3003 for Sale |
Rogers RO3003 Price |
|
|
| |
|
.jpg) |

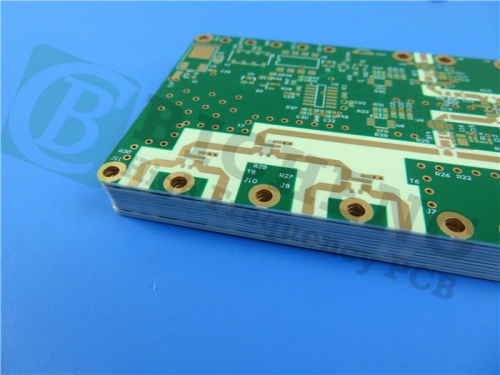

| Rogers RO3035 Microwave PCB 2-Layer Rogers 3035 20mil 0.508mm Circuit Board with DK3.5 DF 0.0015 |
| RO3035 high frequency PCB from Rogers, a ceramic - filled PTFE composite, targets commercial microwave and RF applications. It provides excellent electrical and mechanical stability at competitive costs. Its stable mechanical traits enable multi - layer board design without warpage. With an X/Y - axis CTE of 17 ppm/℃ (matching copper), it shows good dimensional stability. Etch shrinkage is usually under 0.5 mils per inch post - etch and bake. The Z - axis CTE of 24 ppm/℃ guarantees reliable plated through - holes in harsh conditions. |
Tags:
Rogers RO3035 Substrate |
Rogers RO3035 Loss Tangent |
RO3035 PCB |
Rogers RO3035 Low CTE |
RO3035 for Sale |
|
|
| |
|
| |
|
| |
|
|
|
|
|
|
|
|
|
|
