| High speed PCB |
| |
|
High speed PCBs are specialized circuit boards designed to handle high-frequency signals and fast data transmission. These PCBs are essential in modern electronic devices, particularly in telecommunications, computing, and consumer electronics, where rapid signal processing is crucial. One of the key characteristics of high-speed PCBs is their ability to minimize signal loss and electromagnetic interference. This is achieved by making use of advanced materials, for instance, low-loss dielectric substrates which help to maintain signal integrity when operating at high frequencies. Moreover, high-speed PCBs often incorporate techniques like controlled impedance, differential signaling and careful routing of traces that further enhance the board's ability to optimize performance and ensure efficient data transfer without compromising quality. |
|
|
.JPG) |
| Rogers Kappa 438 RF PCB Board 30mil 0.762mm Laminate DK 4.38 with Immersion Gold for Small Cells |
Designed for seamless migration from FR-4, Rogers Kappa 438 PCB offers tailored dielectric constants (Dk) that match FR-4 industry norms, allowing engineers to reuse over 80% of existing layouts while achieving significant electrical performance upgrades—reducing signal loss by 40% at 2.4 GHz. This makesKappa 438 PCB ideal for applications requiring balanced cost and high-frequency performance, such as 5G CPEs, industrial sensors, and consumer electronics. |
Tags:
30 Mil Kappa 438 PCB |
30 Mil Rogers Material |
Kappa 438 High Frequency Board |
Rogers Kappa 438 30mil PCB |
Kappa 438 30mil Laminate |
|
|
| |
|
 |
| Kappa 438 Microwave PCB Board Rogers 40mil 1.016mm High Tg280 PCB for Distributed Antenna Systems |
| Rogers Kappa 438 PCB uniquely integrates with standard FR-4 processes, eliminating PTFE’s specialized costs: it uses conventional drills for 0.15mm microvias (no laser needed), laminates at FR-4’s 170°C/1.5MPa to avoid delamination, and offers 1.2N/mm copper adhesion for reliable wave/reflow soldering—cutting production costs by 90% versus PTFE. This compatibility makes Kappa 438 PCB the only high-frequency laminateviable for mass manufacturing without retooling. |
Tags:
High Temperature PCB |
Kappa 438 High Frequency PCB |
Rogers Kappa 438 PCB Material |
Kappa 438 Printed Circuit Board |
Kappa 438 PCB Immersion Gold |
|
|
| |
|
.jpg) |
| Taconic RF-35 Double Sided PCB 30mil 1.524mm PCB with Immersion Gold and Black Solder Mask |

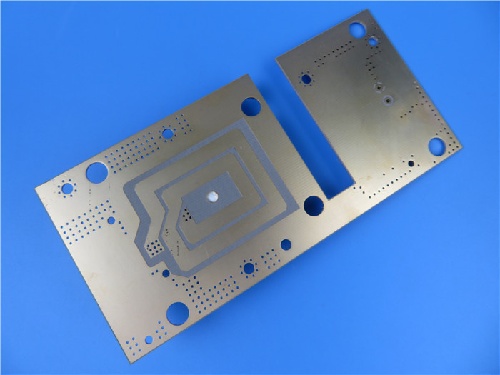

| The ORCER (Organic Ceramic)Taconic RF-35 is a specialized high-frequency PCB. Constructed with a 30-mil core, it features 2 ounces of copper on both the top and bottom layers, classifying it as a double-sided board. Measuring 120 millimeters in length and 60 millimeters in width, its pads are finished with an immersion gold coating. As observed, the bottom layer of RF-35 PCB exposes a gold surface and remains open to the air. |
Tags:
30mil RF-35 PCB |
RF-35 Taconic PCB |
Taconic Laminates |
RF-35 Microwave PCB |
Taconic RF-35 RF PCB |
|
|
| |
|
.jpg) |

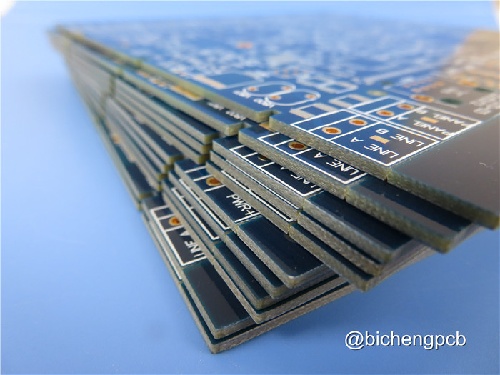

| M6 Megtron6 High Speed PCB M6 R-5775 High TG Material for Next Gen Aerospace and Automotive Electronics |
| Megtron 6 is an exceptional circuit board material renowned for its ultra - low loss characteristics and outstanding heat resistance. Engineered specifically for applications in the mobile, networking, and wireless sectors, among others, it stands out due to its key properties. These include a low dielectric constant (DK) and dielectric dissipation factor (DF), which contribute to minimized signal distortion. |
Tags:
M6 High-Speed PCB |
Megtron6 R-5775 Multilayer Board |
M6 High Tg PCB |
Megtron6 PCB |
Panasonic Megtron6 |
|
|
| |
|
.JPG) |
| Rogers AD1000 PCB 30mil 0.765mm 2-layer RF PCB DK 10.2 Printed Wiring Board with Immersion Gold |

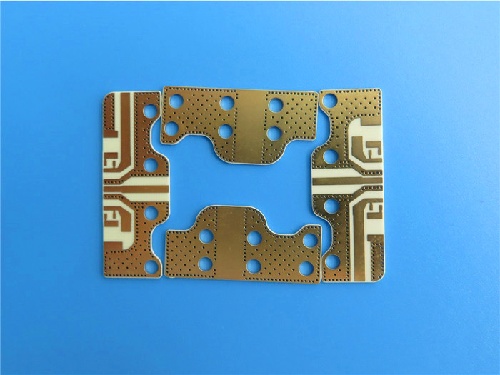

Rogers AD1000 PCB is skillfully fabricated using AD1000 material, a sophisticated laminate composed of PTFE, woven fiberglass, and ceramic filler. Sporting a two - layer configuration, AD1000 high - performance PCB comes with 1 - ounce finished copper on each layer. Unlike many conventional boards, Rogers AD1000 PCB lacks both solder mask and silkscreen, leaving both layers entirely exposed to the atmosphere. With a thickness of precisely 0.8mm, AD1000 PCBs are carefully vacuum - packed in sets of 50, ensuring they reach customers in perfect condition during transit.? |
Tags:
Rogers AD1000 PCB |
2-layer AD1000 laminate |
30mil AD1000 PCB |
Rogers AD1000 PCB Material |
Rogers AD1000 Datasheet |
|
|
| |
|
| |
|
| |
|
|
|
|
|
|
|
|
|
|
