| Flexible Circuits |
| |
|

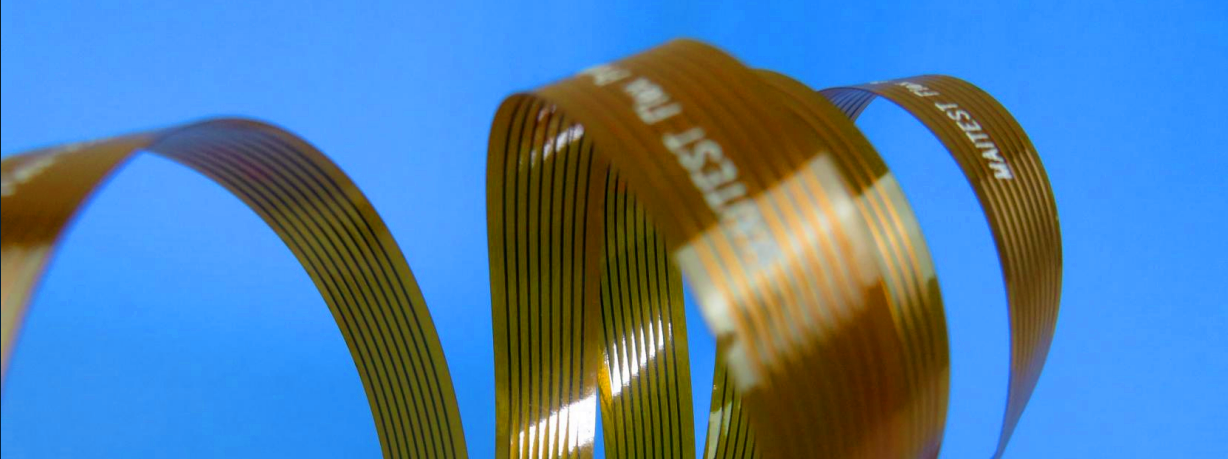

Flexible Circuits, commonly referred to as flex circuits, are innovative electronic components that consist of thin, flexible substrates, typically made from materials like polyimide or polyester. These circuits allow for the integration of electronic components in compact and lightweight designs, making them ideal for applications where space is limited. Flexible Circuits can bend, twist, and fold, enabling them to fit into various shapes and configurations, which is particularly beneficial in consumer electronics, medical devices, and automotive applications. They offer advantages such as reduced weight, improved reliability, and the ability to eliminate interconnection defects commonly found in traditional rigid circuit boards. |
|
|
.jpg) |

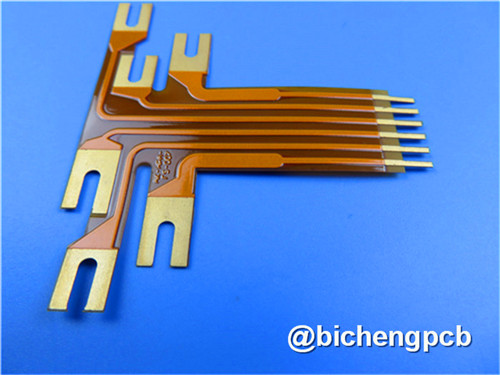

| Single Layer Shengyi SF201 Polyimide Flexible PCB 0.15mm Flexible Printed Circuit for Bluetooth Headset Applications |
This single-layer flexible printed circuit (FPC) is specifically designed for Bluetooth headset applications. Built on Shengyi’s SF201 adhesiveless polyimide with a thickness of 0.15mm, it offers exceptional flexibility and durability. Manufactured to IPC 6012 Class 2 standards using provided Gerber data, this FPC ensures high-quality performance and reliability. |
Tags:
Shengyi SF201 Datasheet |
0.15mm SF201 Thickness |
Shengyi SF201 Price |
SF201 Online Purchase |
SF201 Substrate |
|
|
| |
|
.jpg) |

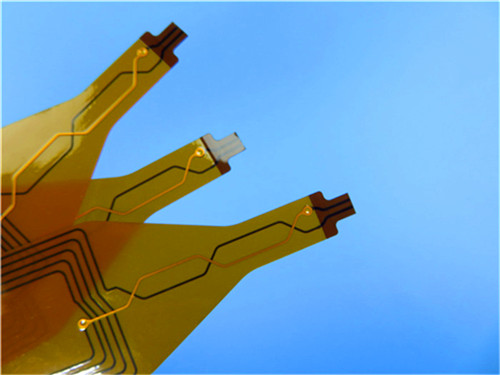

| SF305 Adhesive Polyimide Flexible PCB 0.15mm 2-layer Plated Through Hole Flexible Printed Circuit (FPC) from Shengyi |
| This flexible printed circuit (FPC) utilizes standard SF305 Adhesive Polyimide material specifically designed for Wi-Fi antenna applications. The construction features a 2-layer flexible board with a 0.15mm thickness. The design incorporates yellow coverlay serving as solder mask across the entire board surface, with no silkscreen applied. All contact pads receive immersion gold (ENIG) surface treatment. The connector area is reinforced with polyimide stiffener material. |
Tags:
SF305 PCB for Wi Fi Antenna |
0.15mm SF305 Laminate |
2-layer Flexible Board |
SF305 Adhesive Polyimide PCB |
Shengyi Double Sided FPC |
|
|
| |
|
.jpg) |

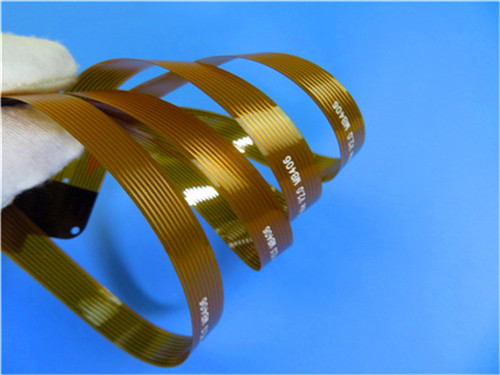

| FR-4 Stiffener Flexible PCB (FPC) 0.15mm Thick Single Layer FPCB Stiffener Flexible Printed Circuits at Low Cost |
| This FR-4 flexible printed circuit is designed for use in Surveillance Systems, constructed as a single layer FPC with a thickness of 0.15mm. The base laminate is provided by Shengyi, and the manufacturing process adheres to IPC 6012 Class 2 standards using the supplied Gerber data. FR-4 material serves as stiffeners on the four tails, while polyimide stiffeners are integrated into the inserting heads. |
Tags:
FR-4 Stiffener Flexible PCB |
FR-4 Flexible Printed Circuit |
Single-Layer Flexible PCB |
FR-4 Material PCB |
Shengyi FR-4 Flexible Laminate |
|
|
| |
|
.jpg) |

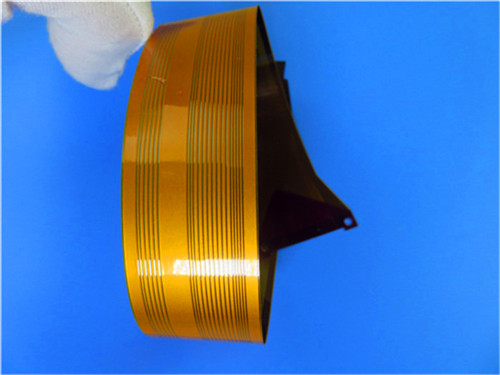

| PI Stiffener Flexible PCB(FPC) 0.15mm Flexible Circuit Board with Shengyi Laminate for Wireless Dongle Applications |
| This 0.2mm thick single-layer FPC utilizes Shengyi base PI-Stiffener laminate and is manufactured to IPC 6012 Class 2 standards based on provided Gerber files. The design incorporates a polyimide stiffener at the insertion head for enhanced durability.This versatile FPC solution is ideal for mobile antennas (stable signal transmission), flex keyboards (reliable tactile response), and industrial control interfaces. |
Tags:
PI Stiffener Flexible PCB |
0.15mm Flexible Circuit Board |
Single-Layer PI Stiffener PCB |
25µm Polyimide substrate |
Shengyi PI Stiffener Laminate |
|
|
| |
|
.jpg) |

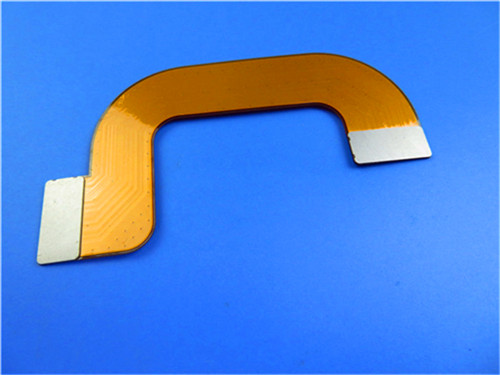

| 2-Layer 0.25mm Flexible PCB Stainless Steel Stiffener PCB Reinforced WiFi Booster Circuit Board from Shengyi |
This stainless steel-reinforced flexible printed circuit is specifically designed for WiFi booster applications, featuring a 2-layer construction with 0.25mm thickness using Shengyi base laminate material. Manufactured in compliance with IPC 6012 Class 2 standards according to provided Gerber data, the FPC incorporates durable stainless steel stiffeners at both ends to ensure optimal mechanical support while maintaining the required flexibility for the application. |
Tags:
Stainless Steel Stiffener PCB |
2 Layer Flexible Printed Circuit |
Immersion Gold Flexible PCB |
0.25mm Thickness Shengyi laminate |
Stainless Steel-reinforced Laminate |
|
|
| |
|
.jpg) |

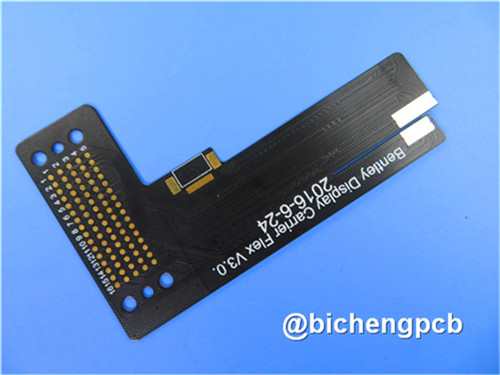

| Black Film MiniOLED Flexible FPC 4-layer Flexible PCB on Polyimide with Black Solder Mask and Immersion Gold |
| This 4-layer flexible printed circuit is specifically designed for PLC programming applications, constructed with a 0.3mm thick Shengyi base laminate and manufactured to IPC 6012 Class 2 specifications using customer-provided Gerber data. The FPC features polyimide stiffener reinforcement at the insertion area to enhance durability while maintaining the board's flexible characteristics in other sections. |
Tags:
4-Layer Polyimide Flexible PCB |
Black Flexible Circuit Board |
0.30mm Flexible PCB |
PCB for Black Film MiniOLED |
Flexible PCB with Immersion Gold |
|
|
| |
|
.jpg) |

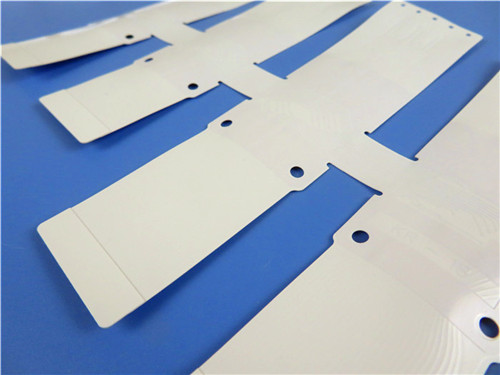

| PET Flexible PCB FPC with White Solder Mask and Immersion Gold for Capacitive Touch Screen and Panel |
| This dual-layer flexible printed circuit utilizes PET substrate with 1oz copper thickness per conductive layer. The construction features white solder mask coating and immersion gold (ENIG) surface finish on all contact pads. Specifically designed for printer applications, the FPC incorporates strategically bulged pads to ensure reliable interconnection stability during dynamic operation. |
Tags:
Dual Layer Flexible Circuit |
PET Flexible PCB |
Immersion Gold PET PCB |
PTH Flexible PCB |
White Solder Mask Laminate |
|
|
| |
|
.jpg) |

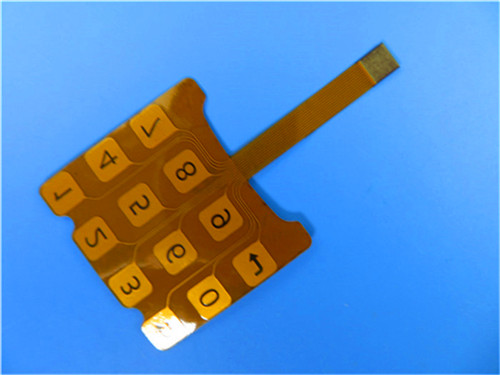

| Single Sided 0.15mm Polyimide Flexible PCB FPC with 3M Tape Tesa Tape Adhesive Backed for Calculator Keypads |
| This single-layer flexible printed circuit features a 0.15mm thick Shengyi polyimide substrate, manufactured to IPC 6012 Class 2 standards using customer-provided Gerber data. Designed specifically for calculator keypad applications, the FPC incorporates 3M adhesive tape on the backside for secure mounting and assembly integration. |
Tags:
Shengyi Polyimide Substrate |
Single-layer Flexible Printed Circuit |
0.15mm Thick Polyimide FPC |
FPC with 3M Adhesive Tape |
Flexible PCB with 3M Tape |
|
|
| |
|
.jpg) |

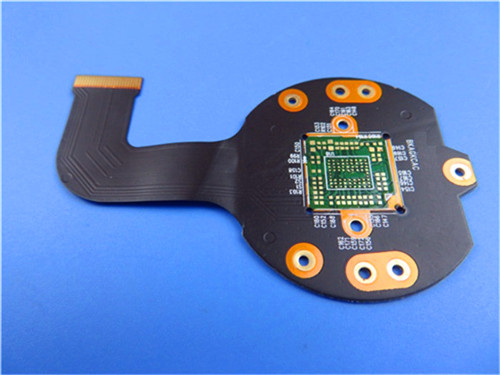

| Flexible Printed Circuit FPC on Polyimide with Partial Green Solder from Shengyi PCB for Maskgigabyte Switch |
| This 2-layer flexible printed circuit utilizes a 0.25mm thick polyimide substrate from Shengyi, specifically designed for gigabyte switch applications. The construction features green solder mask application in the chip area and complies with IPC 6012 Class 2 standards using provided Gerber data. FR-4 stiffeners are precisely bonded to both the insertion head and bottom side for enhanced mechanical stability. |
Tags:
FPC PCB Partial Green SolderMask |
2 Layer FPC PCB |
Flexible PCB Solder Resist |
Double Sided Flexible Printed Circuit |
PCB Partial Green Solder Mask |
|
|
| |
|
.jpg) |

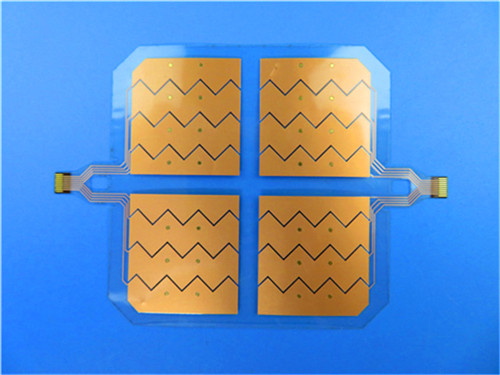

| Transparent Flexible Printed Circuit (FPC) Single layer Flexible PCB On PET Substrate for Power Battery Market PCB |
| This microwave amplifier application utilizes a 0.15mm thick single-layer flexible circuit constructed on Shengyi PET substrate. Manufactured to IPC 6012 Class 2 standards using customer-provided Gerber data, the design incorporates polyimide stiffener reinforcement at the insertion interface for enhanced mechanical durability. |
Tags:
Flexible PCB PET Substrate |
Transparent Flexible Printed Circuit |
Transparent Circuit Boards |
Transparent PET Substrate |
Custom Flexible PCB |
|
|
| |
|
| |
|
| |
|
