| Flexible Circuits |
| |
|
Flexible Circuits, commonly referred to as flex circuits, are innovative electronic components that consist of thin, flexible substrates, typically made from materials like polyimide or polyester. These circuits allow for the integration of electronic components in compact and lightweight designs, making them ideal for applications where space is limited. Flexible Circuits can bend, twist, and fold, enabling them to fit into various shapes and configurations, which is particularly beneficial in consumer electronics, medical devices, and automotive applications. They offer advantages such as reduced weight, improved reliability, and the ability to eliminate interconnection defects commonly found in traditional rigid circuit boards. |
|
|
.jpg) |

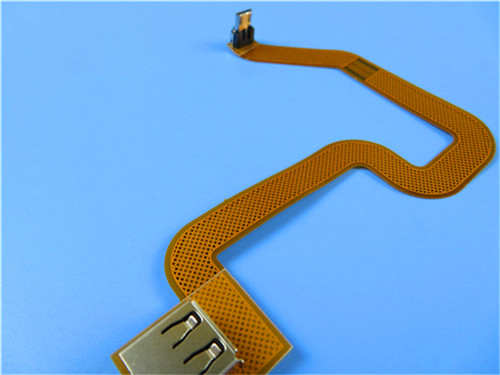

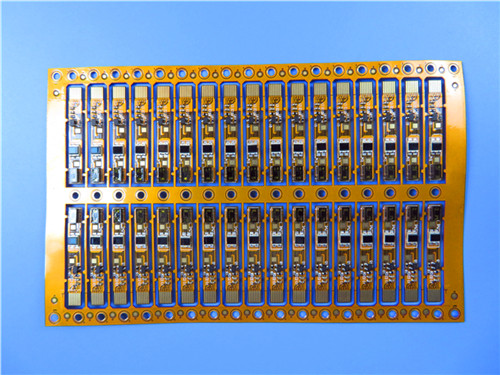

| Assembled-SF202-FPC-with-Immersion-Gold: FR-4-Stiffeners-for-USB-Wireless-and-Automotive-Systems-From-Shengyi |
This USB wireless flexible circuit features a 25μm polyimide substrate with 35μm RA copper construction, delivering 100Ω differential impedance through precise 4.7mil/7.9mil trace design. The assembly incorporates dual-thickness FR-4 stiffeners (0.3mm/0.8mm) for connector stability, finished with yellow coverlay and ENIG pads using Shengyi SF202 base material. |
Tags:
Shengyi SF202 Datasheet |
Double-Layer SF201 Flexible PCB |
Shengyi SF202 Price |
SF201 Online Purchase |
Assembled SF202 FPC |
|
|
| |
|
.jpg) |

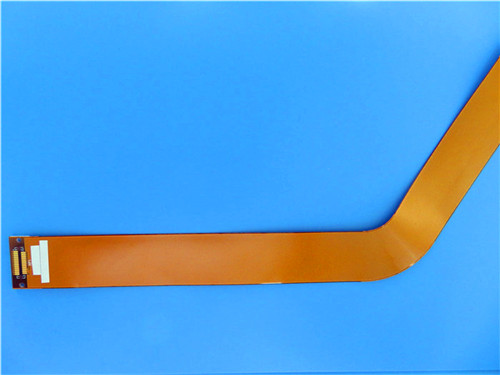

| Impedance-Controlled-Flexible-Printed-Circuit-on-Polyimide-76-Micron-Substrate-with-90ohm-Impedance-for-USB-Connector |
| This flexible PCB features a 76-micron polyimide base substrate with precisely controlled 90-ohm impedance on 0.15mm/0.3mm trace/space configurations. The standard 0.20mm thick construction incorporates double-sided yellow solder mask coverlay and immersion gold surface finish on contact pads. FR-4 stiffeners are applied at both ends for enhanced structural support during connector mating cycles. |
Tags:
Flexible PCB Impedance Controlled |
Polyimide Flexible Circuit PCB |
Polyimide Flex PCB |
FPC PCB 90ohm Impedance Controlled |
Shengyi Flexible Circuit PCB |
|
|
| |
|
.jpg) |

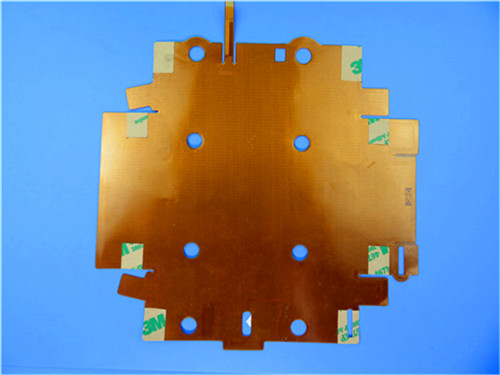

| New-Energy-Vehicle-FPC-Large-Flexible-Circuits-Build-on-Polyimide-with-Fine-Line-and-Immersion-Gold-from-Shengyi |
| This 2-layer flexible circuit board utilizes a polyimide base material with precision fine-line coils, specifically designed for new energy vehicle systems. The ultra-thin construction measures just 0.15mm thick, using high-quality Shengyi laminate as its foundation. Manufactured to IPC 6012 Class 2 standards from customer-provided Gerber files, the design incorporates polyimide stiffeners at the insertion area for enhanced durability during mating cycles. |
Tags:
2-layer Flexible PCB |
Polyimide Base Flexible PCB |
0.15mm Flexible Circuit Board |
Large Flexible Circuits |
Immersion Gold Flexible Laminate |
|
|
| |
|
 |

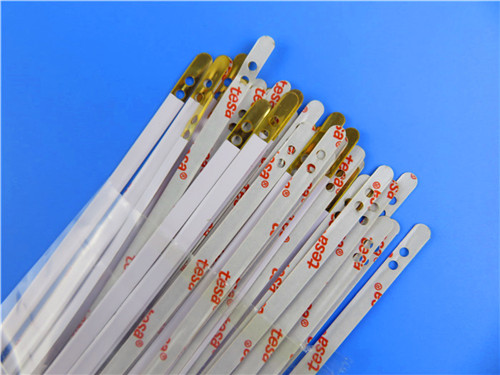

| 2-Meter-Long-FPC-Flexible-PCB-Single-Sided-Polyimide-Strip-with-Tesa-Tape-and-Immersion-Gold-for-Telemetry-Systems |
| This FPC is a single-sided strip constructed on a polyimide substrate, featuring a 7mm width and 2-meter length. It utilizes 1oz copper thickness, with a white coverlay applied to protect the circuitry and immersion gold plating on the pads for enhanced solderability. The backside is equipped with tesa tape for secure adhesion or insulation. |
Tags:
FPC PCB Polyimide 2 Meters Long |
Single Sided Strips FPC PCB |
Flexible Printed Circuit 2 Meters Long |
Single Sided FPC Polyimide |
Single Sided FPC 2 Meters Long |
|
|
| |
|
.jpg) |
| 4-Layer-High-Density-FPC-Shengyi-Polyimide-Base-with-Immersion-Gold-Pads-and-Dual-Connectors-for-Wireless-Routers |
This four-layer flexible circuit is constructed with a polyimide (PI) substrate, designed for wireless router applications. Each layer utilizes 1oz copper thickness, sourced from Shengyi base laminate, ensuring reliable conductivity and mechanical flexibility. The circuitry is protected by a yellow covering layer, with immersion gold plating applied to the pads for enhanced solderability and corrosion resistance. |
Tags:
Immersion Gold Pads FPC |
4-Layer Flexible Printed Circuit |
Shengyi Polyimide Substrate |
FPC with Yellow Covering Llayer |
Multilayer Flexible Circuits |
|
|
| |
|
.jpg) |

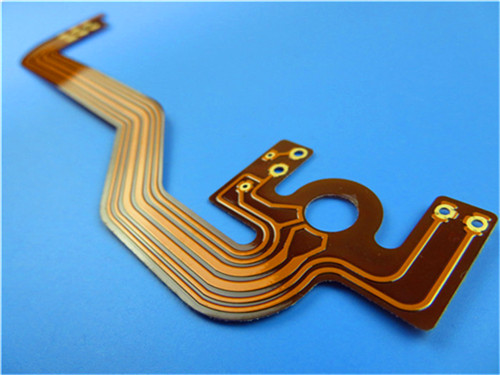

| Heavy-Copper-FPC-Flexible-PCB-Built-On-2-layer-Polyimide-at-0.3mm-Thick-with-2oz-Copper-from-Shengyi |
| This 2-layer polyimide FPC features a robust 0.3mm thick construction with heavy 2oz copper layers, engineered specifically for AC power applications. Utilizing high-quality Shengyi base laminate, the design incorporates a 0.1mm FR-4 stiffener on the backside to enhance mechanical stability in high-current environments. |
Tags:
Heavy Copper Flex |
2-layer polyimide FPC |
0.30mm Flexible PCB |
Flexible PCB for AC power |
FR-4 stiffener Flexible PCB |
|
|
| |
|
.jpg) |
|
| |
|
.jpg) |
| 0.15mm-Polyimide(PI)-Based-Assembled-Flexible-PCB-with-Immersion-Gold-for-Portable-Sound-System |
| This assembled flexible PCB is designed for portable sound systems. It's built on a polyimide substrate with a Tg (glass transition temperature) of 60°C. The 2 - layer FPC has a thickness of 0.15 mm. There's a white silkscreen on the yellow coverlay (solder mask) that covers both sides of the PCB, and the pads are treated with immersion gold. |
Tags:
2-layer Flexible PCB |
Shengyi Polyimide Flexible PCB |
Shengyi Assembled FPC |
Assembled Flexible PCB |
Flexible PCB with yellow solder mask |
|
|
| |
|
.png) |

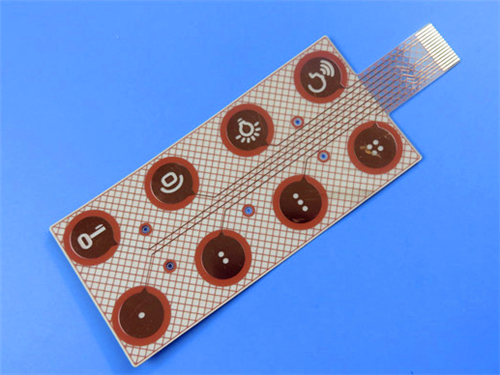

| Double-sided-Flexible-PCB-Built-on-Transparent-SF490-PET-with-Immersion-Gold-and-SMT-for-Access-Control-Systems |
| This double-sided flexible printed circuit (FPC) is constructed on adhesive-backed SF490 PET substrate, engineered to support Surface Mount Technology (SMT) while explicitly excluding through-hole components—making it a prime choice for contemporary electronic applications. Its layer configuration employs 35 micrometer (1 oz) copper layers meticulously laminated between PET and adhesive layers. |
Tags:
SF490 PET Flexible PCB |
2 Layer FPC PCB |
Adhesive PET FPC |
Transparent SF490 PET |
SF490 PET SMT PCB |
|
|
| |
|
.png) |

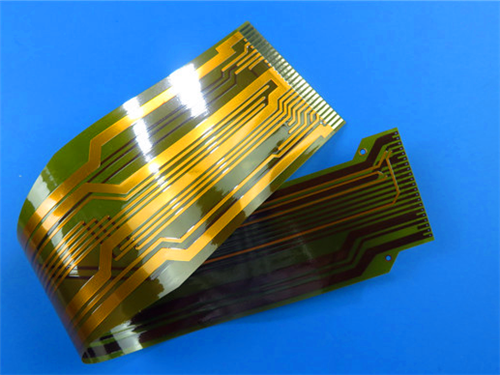

| Adhesiveless-Flexible-Printed-Circuit-FPC-Built-on-SF202-Polyimide-With-Gold-Plated-for-Tracking-Applications |
| This dual-layer SF202 flexible printed circuit (FPC) is constructed from SF202 adhesiveless polyimide material, measuring 85 x 37 mm—engineered to balance modern electronic demands with superior durability and bendability. Its architecture features 35 micrometer (1 oz) copper layers on both substrates, delivering excellent electrical conductivity while maintaining a streamlined profile. |
Tags:
SF202 Flexible Printed Circuit |
Dual-layer SF202 FPC |
Adhesiveless PI FPC |
SF202 Adhesiveless Polyimide |
SF202 Polyimide Material |
|
|
| |
|
| |
|
| |
|
