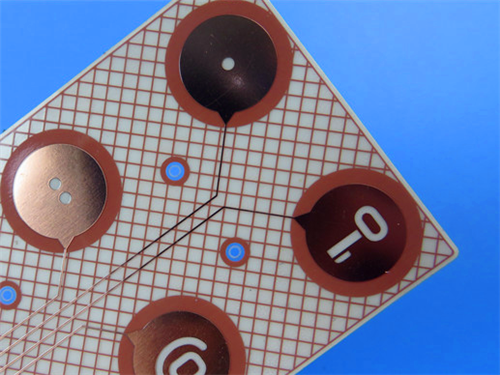

Double sided Flexible PCB Built on Transparent SF490 PET with Immersion Gold and SMT for Access Control Systems |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Brief Introduction |
|
|
This double-sided flexible printed circuit (FPC) is constructed on adhesive-backed transparent SF490 PET substrate, engineered to support Surface Mount Technology (SMT) while explicitly excluding through-hole components—making it a prime choice for contemporary electronic applications.
Its layer configuration employs 35 micrometer (1 oz) copper layers meticulously laminated between PET and adhesive layers. This design ensures precise circuitry with a minimum trace width of 4 mil and spacing of 10 mil, balancing detailed layout requirements with manufacturing feasibility.
Transparent SF490 PET FPC, featuring hole diameters ranging from 0.3 mm to 1.5 mm, retains a 1 oz final external foil thickness while maintaining a sleek profile: the overall thickness measures 0.15 mm (±0.05 mm), combining structural integrity with lightweight flexibility.
Transparent SF490 flexible PCB, finished with an Electroless Nickel Immersion Gold (ENIG) surface treatment, delivers exceptional reliability and performance across diverse applications. It serves as a versatile solution for engineers and designers seeking high-precision, adaptable circuit solutions that meet modern miniaturization and functionality demands. |
|
|
|
|
|
FPC Specifications |
|
|
Bicheng Flexible Printed Circuit Capability 2021 |
No. |
Specifications |
Capabilities |
1 |
Board Type |
Single layer, Doulbe layer, Multilayer, Rigid-Flex |
2 |
Base Material |
PI, PET |
3 |
Copper Weight |
0.5oz, 1oz, 2oz |
4 |
LED Maximum Size |
250 x 5000mm |
5 |
General Maximum Size |
250 x 2000mm |
6 |
Board Thickness |
0.03mm-3.0mm |
7 |
Thickness Tolerance |
±0.03mm |
8 |
Mininum Drill Hole |
0.05mm |
9 |
Maximum Drill Hole |
6.5mm |
10 |
Tolerance of Drill Hole |
±0.025mm |
11 |
Thickness of Hole Wall |
≧ 8 um |
12 |
Minimum Track/Gap of Single Layer Board |
0.025/0.03mm |
13 |
Minimum Track/Gap of Double Layer and Multilayer Board |
0.03/0.040mm |
14 |
Etching Tolerance |
±0.02mm |
15 |
Minimum Width of Silk Legend |
≧ 0.125mm |
16 |
Minimum Heigh of Silk Legend |
≧0.75mm |
17 |
Distance from Legend to Pad |
≧0.15mm |
18 |
Distance from Opening Solder Mask of Drill Coverlay to Track |
≧0.03mm |
19 |
Distance from Opening Solder Mask of Punching Coverlay to Track |
≧0.03mm |
20 |
Thickness of Immersion Nickel |
100-300u" |
21 |
Thickness of Immersion Gold |
1-3u" |
22 |
Thicnkess of Immersion Tin |
150-400u" |
23 |
Minimum Electrical Testing Pad |
0.2mm |
24 |
Minimum Tolerance of Outline(Normal Steel Mould Punch) |
±0.1mm |
25 |
Minimum Tolerance of Outline (Precision Steel Mould Punch) |
±0.05mm |
26 |
Mininum Radius of Bevel Angle (Outline) |
0.2mm |
27 |
Stiffner Material |
PI, FR-4, 3M Adhesive, PET, Steel Sheet |
28 |
RoHs |
Yes |
29 |
Solder Mask Colour |
Yellow, White, Black, Green |
|
|
|
|
|
|
.png) |
|
|
|
|
|
Typical Applications |
|
|
Large touch panel. |
|
|
|
|
|
Parameters (SF490) |
|
|
Test Item |
Test Method |
Unit
|
Standard Value |
Typical Value |
|
|
|
|
SF490 500515SEN |
SF490 500515SET |
SF490 500515SEX |
Peel Strength (90°) |
IPC-TM-650,No.2.4.9 |
N/mm |
- |
0.31 |
0.32 |
0.34 |
Visible Light Transmittance |
Shengyi Method |
% |
≥90 |
90.5 |
90.2 |
90.1 |
Pencil hardness |
GB/T6739,500g load |
- |
|
3H |
- |
2H |
Dimensional Stability |
Shengyi Method |
% |
±1 |
±1 |
±1 |
±1 |
Chemical Resistance |
IPC-TM-650,No.2.3.2 |
% |
≥90 |
＞90 |
＞90 |
＞90 |
Volume Resistivity |
IPC-TM-650,No.2.5.17 |
MΩ-cm |
≥106 |
1.3×108 |
1.5×108 |
1.8×108 |
Surface Resistance |
IPC-TM-650,No.2.5.17 |
MΩ |
≥105 |
4.7×105 |
4.1×105 |
3.8×105 |
|
|
|
|
|
|
FPC Capabilities |
|
|
Bicheng Flexible Printed Circuit Capability 2021 |
No. |
Specifications |
Capabilities |
1 |
Board Type |
Single layer, Doulbe layer, Multilayer, Rigid-Flex |
2 |
Base Material |
PI, PET |
3 |
Copper Weight |
0.5oz, 1oz, 2oz |
4 |
LED Maximum Size |
250 x 5000mm |
5 |
General Maximum Size |
250 x 2000mm |
6 |
Board Thickness |
0.03mm-3.0mm |
7 |
Thickness Tolerance |
±0.03mm |
8 |
Mininum Drill Hole |
0.05mm |
9 |
Maximum Drill Hole |
6.5mm |
10 |
Tolerance of Drill Hole |
±0.025mm |
11 |
Thickness of Hole Wall |
≧ 8 um |
12 |
Minimum Track/Gap of Single Layer Board |
0.025/0.03mm |
13 |
Minimum Track/Gap of Double Layer and Multilayer Board |
0.03/0.040mm |
14 |
Etching Tolerance |
±0.02mm |
15 |
Minimum Width of Silk Legend |
≧ 0.125mm |
16 |
Minimum Heigh of Silk Legend |
≧0.75mm |
17 |
Distance from Legend to Pad |
≧0.15mm |
18 |
Distance from Opening Solder Mask of Drill Coverlay to Track |
≧0.03mm |
19 |
Distance from Opening Solder Mask of Punching Coverlay to Track |
≧0.03mm |
20 |
Thickness of Immersion Nickel |
100-300u" |
21 |
Thickness of Immersion Gold |
1-3u" |
22 |
Thicnkess of Immersion Tin |
150-400u" |
23 |
Minimum Electrical Testing Pad |
0.2mm |
24 |
Minimum Tolerance of Outline(Normal Steel Mould Punch) |
±0.1mm |
25 |
Minimum Tolerance of Outline (Precision Steel Mould Punch) |
±0.05mm |
26 |
Mininum Radius of Bevel Angle (Outline) |
0.2mm |
27 |
Stiffner Material |
PI, FR-4, 3M Adhesive, PET, Steel Sheet |
28 |
RoHs |
Yes |
29 |
Solder Mask Colour |
Yellow, White, Black, Green |
|
|
|
|
|
|
.png) |
|
|
|
|
|
