| PCB Prototypes |
| |
|

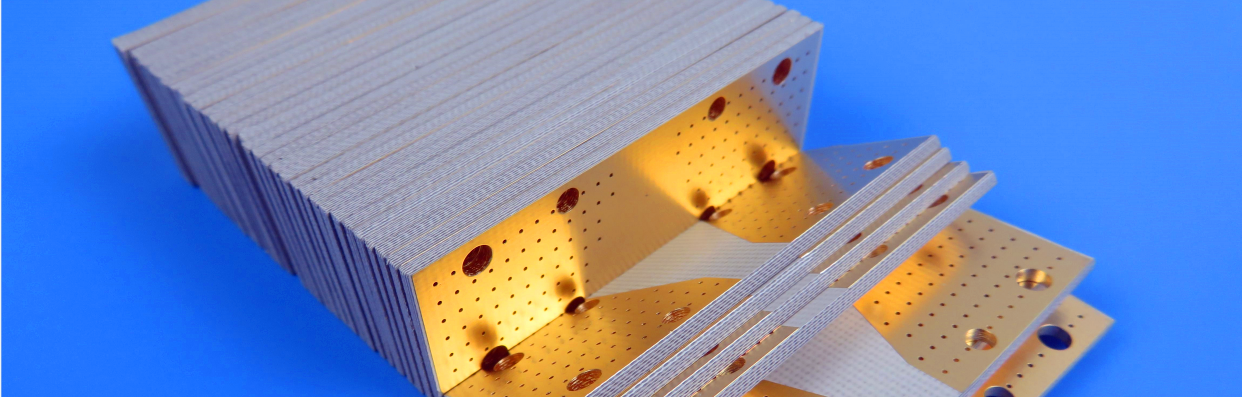

PCB prototypes hold a crucial position in the electronics industry. Serving as the initial iterations of printed circuit boards,they enable engineers and designers to rigorously test and refine their ideas. This proactive approach allows for early detection of potential issues, significantly reducing the risk of costly errors during mass production. From smartphones to medical devices and smart cars, the presence of well-crafted PCB prototypes is vital for the successful development of these technologies. They not only ensure the reliability and functionality of products but also accelerate the innovation process. As technology continues to evolve, the importance of PCB prototypes becomes increasingly pronounced, solidifying their status as a cornerstone of modern electronics development. |
|
|
 |

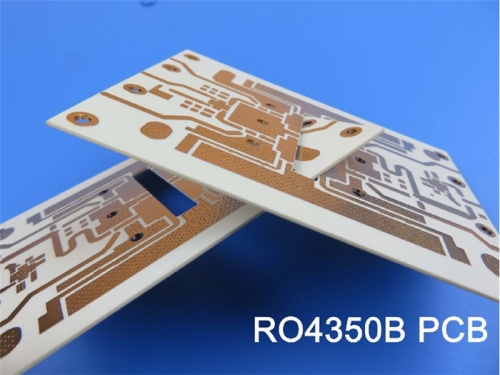

| Rogers RO4350B High-Frequency PCB: Coating Thicknesses 10mil, 20mil, 30mil, 60mil with Immersion Gold |
RO4350B is a laminate from Rogers Corporation. It is reinforced with woven glass cloth and filled with hydrocarbon resin ceramic. Its electrical properties are highly similar to those of PTFE/fabric glass cloth materials, and its processability is comparable to that of epoxy resin/glass cloth materials. They are meticulously engineered to deliver remarkable high - frequency performance, meeting the stringent requirements of modern high - frequency applications. |
Tags:
Rogers RO4350B High-Frequency PCB |
Hydrocarbon Ceramic Filled RO4350B Laminates |
Rogers RO4350B Price |
Low Dielectric Loss RO4350B PCB |
Rogers RO4350B Thickness |
|
|
| |
|
.PNG) |
| Rogers 4003C PCB with 8mil, 12mil, 20mil, 32mil and 60mil Coating with Immersion Gold, Silver, Tin and OSP |
| RO4003C is a ceramic-filled laminate by Rogers Corp., with electrical properties like PTFE and processability like epoxy. It offers double-sided boards in various thicknesses for microwave and RF applications, including antennas, amplifiers, RFID, radar, and sensors. |
Tags:
Rogers 4003C Prepreg |
Rogers 4003C Substrate |
Rogers loss tangent PCB |
Rogers 4003C Lopro |
Hydrocarbon Ceramic-filled Laminates |
|
|
| |
|
 |

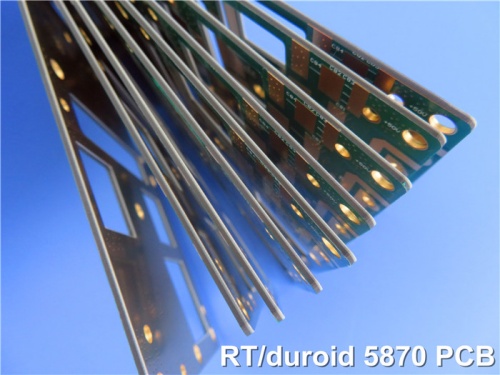

| Rogers RT/duroid 5870 High Frequency PCB: Available in thicknesses of 10mil, 20mil, 31mil and 62mil, with Immersion Gold |
| RT/duroid 5870, a creation of Rogers Corporation, is a composite material reinforced with glass microfibers and based on PTFE. It has been meticulously designed to meet the demands of stripline and microstrip circuit applications. The material's distinct characteristics make it an optimal option for high - frequency PCB designs. This allows for accurate signal delivery and improved functionality across a wide range of electronic systems. |
Tags:
Rogers RT/duroid 5870 Material |
RT/duroid 5870 for Sale |
RT/duroid 5870 PCB Thickness |
Rogers RT/duroid 5870 Substrate |
RT/duroid 5870 Datasheet |
|
|
| |
|
 |

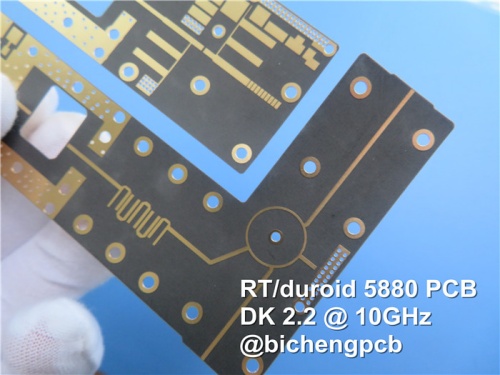

| Rogers RT/duroid 5880 RF PCB: Multiple Thicknesses (10mil, 20mil, 31mil, 62mil) and Coating Choices-Gold, Silver, Tin, HASL |
| RT/duroid 5880, a glass microfiber - reinforced PTFE composite from Rogers, is tailor - made for precision stripline and microstrip circuit applications. It can be fabricated into double - layer, multilayer, and hybrid boards. The 2 - layer boards come in thicknesses of 10mil, 20mil, 31mil, and 62mil. There are several reasons to choose RT/duroid 5880: its randomly oriented microfibers ensure excellent Dk uniformity; the dielectric constant stays consistent across panels and a wide frequency range; it has a low dissipation factor, enabling usability up to the Ku - band and beyond. |
Tags:
Rogers RT/duroid 5880 Price |
RT/duroid 5880 Thickness |
RT/duroid 5880 Permittivity |
RT/duroid 5880 Dielectric Constant 2.2 |
RT/duroid 5880 Datasheet |
|
|
| |
|
.JPG) |
| Taconic RF-35TC High Frequency PCB With 10mil, 20mil, 30mil and 60mil Thick Coating Immersion Gold and Immersion Silver |
RF-35TC excels in thermal management, offering superior heat dissipation performance. As a thermally conductive, low-loss laminate, it is ideally suited for high-power applications. Heat is efficiently dissipated away from both the transmission lines on the PCB and surface-mounted components, such as capacitors. Additionally, RF-35TC maintains stable dielectric constant (Dk) across a broad temperature range, enhancing antenna gains and efficiencies. Its excellent bonding with low-profile copper further reduces insertion loss, making it a top choice for high-performance designs. |
Tags:
Taconic RF-35TC Price |
Taconic RF-35TC Thickness |
RF-35TC Material |
RF-35TC Loss Tangent |
RF-35TC Datasheet |
|
|
| |
|
 |
|
| |
|
新3.png) |
| Rogers 3006 High Frequency PCB RO3006 RF PCB 10mil, 25mil and 50mil Thick Coating Immersion Gold, Tin, Silver and HASL |
| RO3006 high-frequency laminates are ceramic-filled PTFE composites for microwave and RF applications. They offer excellent electrical performance and stable mechanical properties, enabling reliable multi-layer boards without warping. Key features include robust performance across temperatures, uniform properties for hybrid designs, and a low expansion coefficient matching copper, ensuring reliable assemblies and dimensional stability for temperature-sensitive applications. |
Tags:
Roger RO3006 Price |
Roger RO3006 PCB Thickness |
Roger RO3006 Laminate |
RO3006 Loss Tangent |
RO3006 Datasheet |
|
|
| |
|
 |

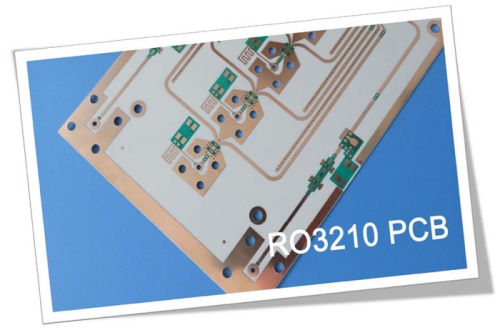

| Rogers RO3210 High Frequency PCB with 25mil and 50mil Coating Immersion Gold, Immersion Tin and Immersion Silver |
| RO3210 high - frequency circuit laminates, ceramic - filled and woven fiberglass - reinforced, extend the RO3000 series with better mechanical stability. They offer benefits like woven glass - enhanced rigidity for easy handling, uniform performance for complex multi - layer high - frequency structures, a low in - plane expansion coefficient matching copper for reliable surface - mounted assemblies and epoxy hybrid compatibility, excellent dimensional stability for high yields, and a smooth surface for finer line etching. |
Tags:
RO3210 Immersion Tin |
RO3210 Printed Circuit Board |
25 50 Mil Rogers RO3210 PCB |
RO3210 PCB Immersion Gold |
Rogers RO3210 Immersion Silver |
|
|
| |
|
 |

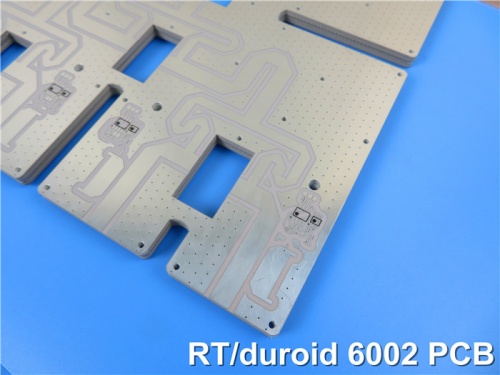

| Rogers RT/Duroid 6002 Microwave Laminate: Available in 10mil , 20mil, 30mil and 60mil, Coated in Immersion Gold and Immersion Silver |
| Rogers RT/duroid 6002 is a low-loss, low-dielectric constant laminate designed to meet stringent mechanical reliability and electrical stability requirements in complex microwave structures. It is primarily composed of PTFE ceramic composites. This material exhibits excellent resistance to temperature variations between -55 ℃ and 150 ℃, making it suitable for applications such as filters, oscillators, and delay lines due to its electrical stability. |
Tags:
RT/Duroid 6002 PCB |
6002 High Frequency PCB |
Duroid 6002 Laminate |
6002 Loss Tangent |
6002 Rogers Substrates |
|
|
| |
|
.PNG) |
| High-Frequency PCB Coatings: Taonic TLY-5, TLY-5-L, TLY-3, and TLY-3FF with HASL, Immersion Gold, OSP, and Tin Finishes |
| TLY laminates, produced by Taconic, are made with lightweight woven fiberglass, offering superior dimensional stability compared to chopped fiber-reinforced PTFE composites. This enhanced mechanical stability makes them ideal for high-volume manufacturing. With their low dissipation factor, TLY laminates are perfectly suited for automotive radar applications operating at 77 GHz, as well as other millimeter-wave frequency antennas. |
Tags:
Taconic TLY laminates |
TLY series PCB Datasheet |
Taonic TLY-5 PCB |
Taonic TLY-3 PCB |
Taconic TLY material |
|
|
| |
|
| |
|
| |
|
|
|
|
|
|
|
|
|
|
