Rogers RT/duroid 5880 RF PCB: Multiple Thicknesses (10mil, 20mil, 31mil, 62mil) and Coating Choices-Gold, Silver, Tin, HASL |
|
|
|
|
|
(As PCBs are custom - produced goods, the picture and parameters shown are only intended for reference.) |
|
|
|
|
|
Hi, everyone!
Today, we present high-frequency PCBs constructed from RT/duroid 5880 laminates.
RT/duroid 5880 is a glass microfiber reinforced PTFE composite from Rogers, specifically designed for precision stripline and microstrip circuit applications. |
|
|
|
|
|
.jpg) |
|
|
Why Choose RT/duroid 5880?
1. The randomly oriented microfibers provide exceptional uniformity in dielectric constant.
2. The dielectric constant remains consistent across panels and over a wide frequency range.
3. Its low dissipation factor, as low as 0.0004 at 1 MHz and 0.0009 at 10 GHz, extends the laminate's usability to Ku-band and beyond.
4. It is specifically designed for precision stripline and microstrip circuit applications. |
|
|
|
|
Our PCB Capability (RT/duroid 5880) |
|
|
PCB Material: |
Glass microfiber reinforced PTFE composites |
Designation: |
RT/duroid 5880 |
Dielectric constant: |
2.2 ±0.02 (process) |
|
2.2 (design) |
Layer count: |
2 Layer, Multilayer, Hybrid type (Mixed) |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
PCB thickness: |
10mil (0.254mm), 20mil (0.508mm) |
|
31mil (0.787mm), 62mil (1.575mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, OSP, etc.. |
|
|
|
|
|
|

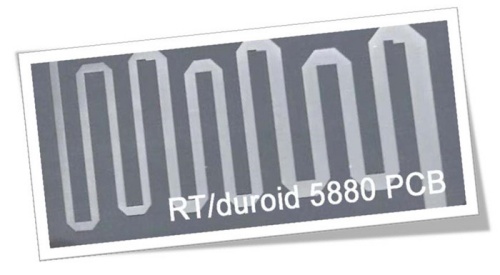

RT/duroid 5880 material can be fabricated into double-layer boards, multilayer boards, and hybrid types. The 2-layer boards are offered in various thicknesses, including 10mil, 20mil, 31mil, and 62mil. |
|
|
|
|
|
.jpg) |
|
|
|
|
|
Typical applications include microstrip and stripline circuits, broadband antennas for commercial airlines, radar systems, millimeter wave applications, and point-to-point digital radio antennas, among others. |
|
|
|
|
|
.jpg) |
|
|
|
|
|
The primary color of RT/duroid 5880 PCBs is black.
Additionally, RT/duroid 5880 PCBs exhibit low water absorption and excellent chemical resistance.
If you have any questions, please don't hesitate to reach out. Thank you for reading! |
|
|
|
|
|
Appendix: Typical Values of Rogers 5880 |
|
|
RT/duroid 5880 Typical Value |
Property |
RT/duroid 5880 |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant,εProcess |
2.20
2.20±0.02 spec. |
Z |
N/A |
C24/23/50
C24/23/50 |
1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5 |
Dielectric Constant,εDesign |
2.2 |
Z |
N/A |
8GHz to 40 GHz |
Differential Phase Length Method |
Dissipation Factor,tanδ |
0.0004
0.0009 |
Z |
N/A |
C24/23/50
C24/23/50 |
1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5 |
Thermal Coefficient of ε |
-125 |
Z |
ppm/℃ |
-50℃to 150℃ |
IPC-TM-650 2.5.5.5 |
Volume Resistivity |
2 x 107 |
Z |
Mohm cm |
C/96/35/90 |
ASTM D 257 |
Surface Resistivity |
3 x 107 |
Z |
Mohm |
C/96/35/90 |
ASTM D 257 |
Specific Heat |
0.96(0.23） |
N/A |
j/g/k
(cal/g/c) |
N/A |
Calculated |
Tensile Modulus |
Test at 23℃ |
Test at 100℃ |
N/A |
MPa(kpsi) |
A |
ASTM D 638 |
1070(156) |
450(65) |
X |
860(125) |
380(55) |
Y |
Ultimate Stress |
29(4.2) |
20(2.9) |
X |
27(3.9） |
18(2.6) |
Y |
Ultimate Strain |
6 |
7.2 |
X |
% |
4.9 |
5.8 |
Y |
Compressive Modulus |
710(103) |
500(73) |
X |
MPa(kpsi) |
A |
ASTM D 695 |
710(103) |
500(73) |
Y |
940(136) |
670(97) |
Z |
Ultimate Stress |
27(3.9) |
22(3.2) |
X |
29(5.3) |
21(3.1) |
Y |
52(7.5) |
43(6.3) |
Z |
Ultimate Strain |
8.5 |
8.4 |
X |
% |
7.7 |
7.8 |
Y |
12.5 |
17.6 |
Z |
Moisture Absorption |
0.02 |
N/A |
% |
0.62"(1.6mm) D48/50 |
ASTM D 570 |
Thermal Conductivity |
0.2 |
Z |
W/m/k |
80℃ |
ASTM C 518 |
Coefficient of Thermal Expansion |
31
48
237 |
X
Y
Z |
ppm/℃ |
0-100℃ |
IPC-TM-650 2.4.41 |
Td |
500 |
N/A |
℃ TGA |
N/A |
ASTM D 3850 |
Density |
2.2 |
N/A |
gm/cm3 |
N/A |
ASTM D 792 |
Copper Peel |
31.2(5.5) |
N/A |
Pli(N/mm) |
1oz(35mm)EDC foil
after solder float |
IPC-TM-650 2.4.8 |
Flammability |
V-0 |
N/A |
N/A |
N/A |
UL 94 |
Lead-free Process Compatible |
Yes |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
