Rogers 3006 High Frequency PCB RO3006 RF PCB 10mil, 25mil and 50mil Thick Coating Immersion Gold, Tin, Silver and HASL |
|
|
|
|
|
(As PCBs are custom - produced goods, the picture and parameters shown are only intended for reference.) |
|
|
|
|
|
Hello everyone,
Today we’re discussing Roger RO3006 high-frequency PCBs. RO3006 high-frequency circuit laminates are ceramic-filled PTFE composites designed for use in commercial microwave and RF applications. A key feature is their exceptional electrical performance coupled with stable and consistent mechanical properties. This enables our designers to create multi-layer boards without facing issues related to warping or reliability. |
|
|
|
|
|
|
|
|
|
|
|
Here are more features and applications:
1. Outstanding Mechanical Properties: RO3006 exhibits excellent mechanical performance at varying temperatures, making it reliable for stripline and multi-layer board constructions.
2. Consistent Mechanical Properties: Its uniform mechanical characteristics make it suitable for hybrid designs that incorporate epoxy glass multi-layer boards.
3. Low In-Plane Expansion Coefficient: The low expansion coefficient matches that of copper, ensuring more reliable surface-mounted assemblies. This makes it ideal for applications sensitive to temperature fluctuations and provides excellent dimensional stability. |
|
|
|
|
Our PCB Capability (RO3006) |
|
|
PCB Material: |
Ceramic-filled PTFE composite |
Designation: |
RO3006 |
Dielectric constant: |
6.15 ±0.3 (process) |
|
6.5 (design) |
Layer count: |
2 Layer, Multilayer, Hybrid PCB |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
PCB thickness: |
10mil (0.254mm), 25mil (0.635mm) |
|
50mil (1.27mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, OSP etc.. |
|
|
|
|
|
|
|
|
RO3006 high-frequency PCBs are offered in double-sided, multi-layer, and hybrid constructions, featuring finished copper weights ranging from 0.5 oz to 2 oz. They come in thicknesses from 0.3 mm to 1.3 mm, with a maximum size of 400 mm by 500 mm. Surface finishes include bare copper, hot air leveling, and immersion gold, among others. |
|
|
|
|
|
 |
|
|
|
|
|
Typical applications
1. Automotive radar applications
2. GPS Antennas
3. Power amplifiers and antennas
4. Patch antennas for wireless communications
5. Direct broadcast satellite |
|
|
|
|
|
 |
|
|
|
|
|

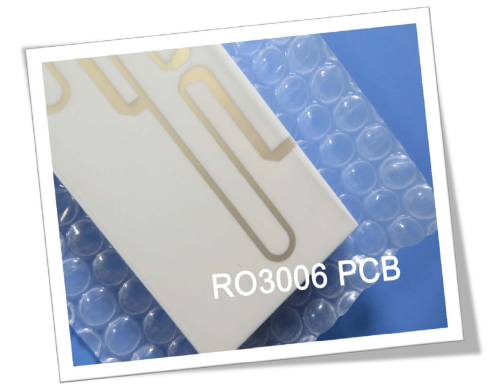

The base color of RO3006 PCBs is white.
The manufacturing process for RO3006 high-frequency PCBs is similar to that of standard PTFE PCBs, making it suitable for high-volume production and providing a competitive advantage in the market.
If you have any questions, please don’t hesitate to reach out.
Thank you for reading! |
|
|
|
|
|
Appendix: Data Sheet RO3006 |
|
|
RO3006 Typical Value |
Property |
RO3006 |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant,εProcess |
6.15±0.05 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 Clamped Stripline |
Dielectric Constant,εDesign |
6.5 |
Z |
|
8GHz to 40 GHz |
Differential Phase Length Method |
Dissipation Factor,tanδ |
0.002 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 |
Thermal Coefficient of ε |
-262 |
Z |
ppm/℃ |
10 GHz -50℃to 150℃ |
IPC-TM-650 2.5.5.5 |
Dimensional Stability |
0.27
0.15 |
X
Y |
mm/m |
COND A |
IPC-TM-650 2.2.4 |
Volume Resistivity |
105 |
|
MΩ.cm |
COND A |
IPC 2.5.17.1 |
Surface Resistivity |
105 |
|
MΩ |
COND A |
IPC 2.5.17.1 |
Tensile Modulus |
1498
1293 |
X
Y |
MPa |
23℃ |
ASTM D 638 |
Moisture Absorption |
0.02 |
|
% |
D48/50 |
IPC-TM-650 2.6.2.1 |
Specific Heat |
0.86 |
|
j/g/k |
|
Calculated |
Thermal Conductivity |
0.79 |
|
W/M/K |
50℃ |
ASTM D 5470 |
Coefficient of Thermal Expansion
(-55 to 288℃) |
17
17
24 |
X
Y
Z |
ppm/℃ |
23℃/50% RH |
IPC-TM-650 2.4.4.1 |
Td |
500 |
|
℃ TGA |
|
ASTM D 3850 |
Density |
2.6 |
|
gm/cm3 |
23℃ |
ASTM D 792 |
Copper Peel Stength |
7.1 |
|
Ib/in. |
1oz,EDC After Solder Float |
IPC-TM 2.4.8 |
Flammability |
V-0 |
|
|
|
UL 94 |
Lead-free Process Compatible |
Yes |
|
|
|
|
|
|
|
|
|
|
