(Flexible printed circuits are custom-made products. The picture and parameters shown are for reference only.)

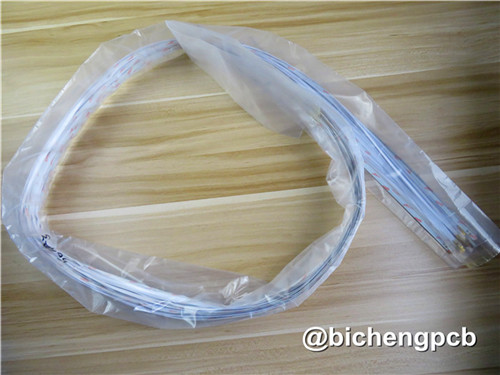

This FPC is a single-sided strip constructed on a polyimide substrate, featuring a 7mm width and 2-meter length. It utilizes 1oz copper thickness, with a white coverlay applied to protect the circuitry and immersion gold plating on the pads for enhanced solderability. The backside is equipped with tesa tape for secure adhesion or insulation. Designed for telemetry systems, this flexible printed circuit balances durability and flexibility, suitable for applications requiring long-length signal transmission in compact, high-reliability environments.

Our Advantages

1. Engineering design prevents problems from occurring in pre-production

2. ISO9001, ISO14001, IATF16949 UL certified manufacturing factory

3. No MOQ, low cost for prototypes and small runs quantity

4. Capability of 30000㎡output per month

5. More than 18+ years of PCB experience

6. Customer complaint rate: <1%

7. Customer complaint rate: <1%

8. 8000 types of PCB's per month

Five Fundamental Types of Flexible Circuits as described below:

1. Single-Sided Flexible Circuits

The most basic configuration featuring a single conductive layer of copper foil laminated to a flexible base material using adhesive. The construction typically includes a protective covercoat bonded over the copper layer for insulation and environmental protection.

2. Double-Sided Flexible Circuits

These circuits incorporate conductive layers on both sides of the flexible base material, with copper foil laminated to each surface. Both external conductive layers are normally protected with bonded covercoats for complete circuit encapsulation.

3. Multilayer Flexible Circuits

Constructed by laminating multiple flexible base materials and copper foil layers together using adhesive systems, similar to rigid multilayer board fabrication. The outer layers typically receive protective covercoats like single and double-sided variants.

4. Flex-Rigid Circuits

Hybrid structures combining rigid printed circuit boards with flexible interconnects, where the flexible portions are laminated to rigid sections using specialized bonding materials to create integrated three-dimensional circuit assemblies.

5. Flexible Circuits with Rigid Areas

Specialized designs incorporating localized rigid reinforcements (typically polyimide or glass/epoxy laminates) in specific areas to provide mechanical support for heavy components or connector systems while maintaining flexibility in other sections.
