1.575mm 62mil Rogers RT/Duroid 5880 High Frequency PCB for Commercial Aireline Broadband Antennas |
|
|

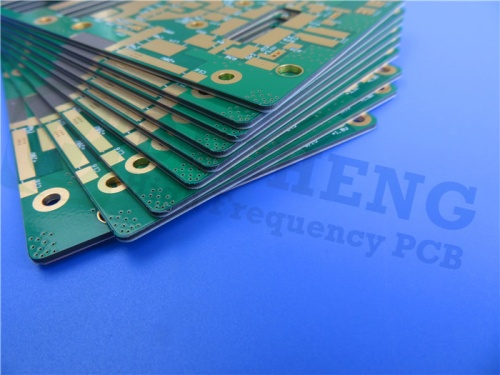

(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Rogers RT/duroid 5880, a glass microfiber reinforced PTFE composite, is made for precise stripline and microstrip circuits. Its randomly oriented microfibers ensure dielectric constant uniformity across panels and frequencies. With a low dissipation factor for Ku - band and higher use, it's also easy to cut, shear, and machine and resists common etching and plating solvents. It's used in commercial airline broadband antennas, microstrip and stripline circuits, millimeter - wave applications, military radar, missile guidance, and point - to - point digital radio antennas. |
|
|
|
|
|
.jpg) |
|
|
|
|
|
PCB Specifications |
|
|
Rogers RT/Duroid 5880 62mil 1.575mm High Frequency PCB for Commercial Aireline Broadband Antennas |
|
|
PCB SIZE |
135 x 95mm=1PCS |
BOARD TYPE |
Double sided PCB |
Number of Layers |
2 layers |
Surface Mount Components |
YES |
Through Hole Components |
YES |
LAYER STACKUP |
copper ------- 35µm(1 oz)+plate TOP layer |
RT/duroid 5880 1.575mm |
copper ------- 35µm(1oz) + plate BOT Layer |
TECHNOLOGY |
|
Minimum Trace and Space: |
8 mil / 7 mil |
Minimum / Maximum Holes: |
0.4 mm / 4.5 mm |
Number of Different Holes: |
4 |
Number of Drill Holes: |
87 |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
0 |
Impedance Control: |
no |
Number of Gold finger: |
0 |
BOARD MATERIAL |
|
Glass Epoxy: |
RT/duroid 5880 1.575mm |
Final foil external: |
1.0 oz |
Final foil internal: |
N/A |
Final height of PCB: |
1.6 mm ±0.16 |
PLATING AND COATING |
|
Surface Finish |
Immersion gold |
Solder Mask Apply To: |
N/A |
Solder Mask Color: |
N/A |
Solder Mask Type: |
N/A |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
N/A |
Colour of Component Legend |
N/A |
Manufacturer Name or Logo: |
N/A |
VIA |
Plated through hole(PTH), minimum size 0.4mm. |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" |
Board plating: |
0.0029" |
Drill tolerance: |
0.002" |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
|
|
Data Sheet of Rogers RT/duroid 5880 |
|
RT/duroid 5880 Typical Value |
Property |
RT/duroid 5880 |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant,εProcess |
2.20
2.20±0.02 spec. |
Z |
N/A |
C24/23/50
C24/23/50 |
1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5 |
Dielectric Constant,εDesign |
2.2 |
Z |
N/A |
8GHz to 40 GHz |
Differential Phase Length Method |
Dissipation Factor,tanδ |
0.0004
0.0009 |
Z |
N/A |
C24/23/50
C24/23/50 |
1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5 |
Thermal Coefficient of ε |
-125 |
Z |
ppm/℃ |
-50℃to 150℃ |
IPC-TM-650 2.5.5.5 |
Volume Resistivity |
2 x 107 |
Z |
Mohm cm |
C/96/35/90 |
ASTM D 257 |
Surface Resistivity |
3 x 107 |
Z |
Mohm |
C/96/35/90 |
ASTM D 257 |
Specific Heat |
0.96(0.23） |
N/A |
j/g/k
(cal/g/c) |
N/A |
Calculated |
Tensile Modulus |
Test at 23℃ |
Test at 100℃ |
N/A |
MPa(kpsi) |
A |
ASTM D 638 |
1070(156) |
450(65) |
X |
860(125) |
380(55) |
Y |
Ultimate Stress |
29(4.2) |
20(2.9) |
X |
27(3.9） |
18(2.6) |
Y |
Ultimate Strain |
6 |
7.2 |
X |
% |
4.9 |
5.8 |
Y |
Compressive Modulus |
710(103) |
500(73) |
X |
MPa(kpsi) |
A |
ASTM D 695 |
710(103) |
500(73) |
Y |
940(136) |
670(97) |
Z |
Ultimate Stress |
27(3.9) |
22(3.2) |
X |
29(5.3) |
21(3.1) |
Y |
52(7.5) |
43(6.3) |
Z |
Ultimate Strain |
8.5 |
8.4 |
X |
% |
7.7 |
7.8 |
Y |
12.5 |
17.6 |
Z |
Moisture Absorption |
0.02 |
N/A |
% |
0.62"(1.6mm) D48/50 |
ASTM D 570 |
Thermal Conductivity |
0.2 |
Z |
W/m/k |
80℃ |
ASTM C 518 |
Coefficient of Thermal Expansion |
31
48
237 |
X
Y
Z |
ppm/℃ |
0-100℃ |
IPC-TM-650 2.4.41 |
Td |
500 |
N/A |
℃ TGA |
N/A |
ASTM D 3850 |
Density |
2.2 |
N/A |
gm/cm3 |
N/A |
ASTM D 792 |
Copper Peel |
31.2(5.5) |
N/A |
Pli(N/mm) |
1oz(35mm)EDC foil
after solder float |
IPC-TM-650 2.4.8 |
Flammability |
V-0 |
N/A |
N/A |
N/A |
UL 94 |
Lead-free Process Compatible |
Yes |
N/A |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
