1.  Introduction of RO3010

Rogers RO3010 advanced circuit materials are ceramic-filled PTFE composites that offer a higher dielectric constant with excellent stability. They are competitively priced products with exceptional mechanical and electrical stability. This stability simplifies the design of broadband components and allows the materials to be used in a wide range of applications over a very broad range of frequencies. This material's characteristics make RO3010 laminates excellent for circuit miniaturization.

2. Features (RO3010)

- Dielectric constant of 10.2+/- .30 at 10 GHz/23°C

- Dissipation factor of 0.0022 at 10 GHz/23°C

- Low Coefficient of Thermal Expansion (-55 to 288 °C) of 13 ppm/°C(X), 11 ppm/°C (Y),  16 ppm/°C (Z) respectively

- Td> 500°C

- Thermal Conductivity of 0.95 W/mK

- Moisture Absorption of 0.05%

- -40℃ to +85℃ operation

3. Benefits

- Material exhibits dimensional stability with expansion coefficient matched to copper

- Economical laminate pricing for Volume manufacturing process

- Suitable for use with multi-layer board designs

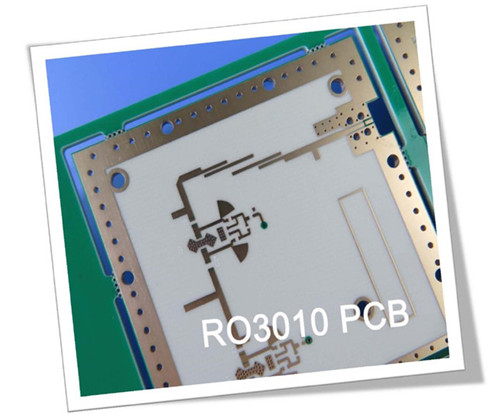

4. PCB Stackup:  2-layer rigid PCB

Copper_layer_1 - 35 μm

Rogers RO3010 Substrate - 50mil (1.27mm)

Copper_layer_2 - 35 μm

6.  PCB Statistics:

    Components:        12

    Total Pads:         29

    Thru Hole Pads:    18

    Top SMT Pads:      11

    Bottom SMT Pads:    0

    Vias:              21

    Nets:              2

7. Type of artwork supplied: Gerber RS-274-X

10. Some Typical Applications

- Automotive radar applications

- Global positioning satellite antennas

- Cellular telecommunications systems - power amplifiers and antennas

- Patch antenna for wireless communications

- Direct broadcast satellites

- Datalink on cable systems

- Remote meter readers

- Power backplanes
