| Rogers PCB |
| |
|
Rogers high-frequency materials are specifically designed and produced by Rogers Corporation, a world-leading manufacturer of high-performance dielectrics, high-frequency laminates, and prepregs. The unique advantages of Rogers PCBs lie in their low dielectric constant and low loss characteristics, as well as their excellent thermal management capabilities and chemical resistance. Additionally, the design of Rogers PCBs allows for higher circuit density and more complex layouts, enabling engineers to integrate more functionality within a limited space. This makes them an ideal choice for high-performance electronic devices. For example，they are widely utilized in microwave and RF printed circuits and related applications in Aerospace & Defense, Wireless & Wireline (digital) Infrastructure, Automotive Radar Sensor, Satellite TV, Mobile Internet Device and High End Chip Scale Packaging. |
|
|
.jpg) |
| Rogers TMM3 PCB 20mil 0.508mm High-Frequency Printed Circuit Board with DK3.27 and Immersion Gold |
This double - layer high - frequency PCB is constructed on a 20 - mil TMM3 laminate. It features immersion gold plating and has 1 - oz finished copper. A green solder mask is printed on both the top and bottom layers, with the bottom layer left exposed to air. Manufactured to IPC class 3 standards, this mini TMM3 PCB is packaged in lots of 50 boards per shipment. It is specifically designed for use in patch antenna applications. |
Tags:
Rogers TMM3 PCB |
TMM3 Printed Circuit Board |
TMM3 20 Mil PCB |
TMM3 High Frequency PCB |
TMM3 Microwave PCB |
|
|
| |
|
.jpg) |
Rogers TMM13i High Frequency PCB 60mil 1.524mm High DK 12.85 RF PCB With Immersion Gold |
| This double-sided PCB is fabricated on Rogers TMM13i substrate (60mil thickness), featuring immersion gold (ENIG) finish on pads and a copper weight transition from ½ oz to 1 oz. The top side includes a green solder mask, and all boards are produced to IPC Class 2 standards with 100% electrical testing prior to shipment. Units are vacuum-sealed in packs of 25 for secure delivery. |
Tags:
TMM 13i Printed Circuit Board |
TMM Series PCB Material |
TMM 13i 60mil PCB |
Rogers TMM 13i Laminate |
TMM 13i Immersion Gold PCB |
|
|
| |
|
 |
| Rogers Kappa 438 PCB 20mil 0.508mm High-Frequency Printed Circuit Board DK4.38 PCB with UL94 V-0 |
| Rogers Kappa 438 laminates are engineered with a glass-reinforced hydrocarbon-ceramic system, delivering exceptional high-frequency performance (Dk 4.38, Df 0.0032 at 10 GHz) while enabling cost-effective circuit fabrication. Unlike traditional PTFE materials, Kappa 438 PCB is fully compatible with standard FR-4 manufacturing processes, including mechanical drilling, epoxy-based lamination, and conventional soldering, eliminating the need for specialized equipment. |
Tags:
High Temperature PCB |
Kappa 438 High Frequency PCB |
Rogers Kappa 438 PCB Material |
Kappa 438 Printed Circuit Board |
High TG PCB Material |
|
|
| |
|
.jpg) |

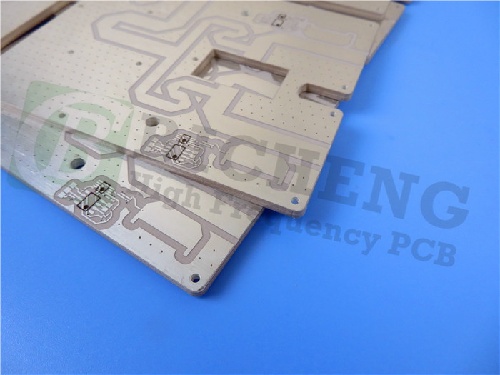

| Rogers AD1000 Arlon High Frequency PCB Double Sided Printed Circuit Board With Low Moisture Absorption |
| Rogers AD1000 PCB serves as a high - frequency material featuring a high dielectric constant (10.2 or greater). As a woven glass - reinforced laminate, it is notable for its ability to facilitate circuit miniaturization. In contrast to traditional low - loss materials, the AD1000 laminate has the benefit of shrinking circuit size. Additionally, when pitted against other laminates with a dielectric constant of 10, it delivers better dimensional stability and mechanical strength. |
Tags:
Rogers AD1000 PCB |
AD1000 laminate |
Rogers AD1000 Immersion Gold PCB |
AD1000 High Frequency PCB |
High Dielectric Constant PCB |
|
|
| |
|
 |
| Rogers RO4533 PCB 60mil Double Layer Rogers 4533 High Frequency Antenna PCB with Immersion Gold |
| Crafted from Rogers RO4533, an affordable yet high - performance antenna - grade laminate, this double - sided high - frequency PCB offers a balance of quality and value. Rogers RO4533 PCB is designed with a 60 - mil (1.524 - millimeter) core and features 1 - ounce finished copper on both its top and bottom surfaces. Its unique design eschews a solder mask, exposing the copper directly, while the top, bottom layers, and vias are all treated with immersion gold plating, which not only improves conductivity but also provides robust protection against corrosion. |
Tags:
60mil Rogers RO4533 Thickness |
Rogers RO4533 Datasheet |
Rogers RO4533 PCB |
Rogers RO4533 Antenna PCB |
RO4533 Printed Circuit Board |
|
|
| |
|
.jpg) |

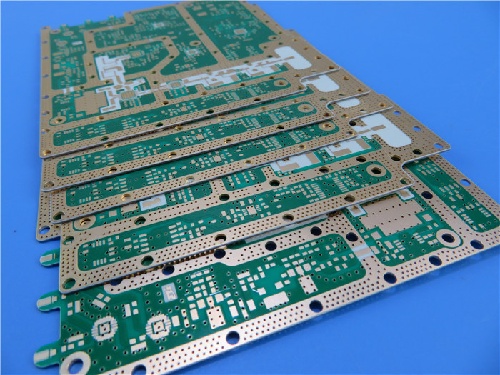

| Double Layer Rogers RO4534 PCB 0.508mm High Frequency Printed Circuit Board With High Tg280 |
| Rogers RO4534 PCB delivers advanced RF performance with its 20-mil-thick construction, transitioning from 0.5-ounce to 1-ounce copper layers for enhanced conductivity. RO4534 PCB integrates 4-mil precision traces and 0.2mm microvias, optimized for high-frequency signal integrity in compact antenna designs. Rogers RO4534 PCB features 0.05μm immersion gold surface treatment on pads, complemented by green solder mask and white silkscreen markings for clear component identification. |
Tags:
Double Layer RO4534 PCB |
Rogers RO4534 PCB Substrate |
RO4534 20 Mil Material PCB |
RO4534 Printed Circuit Board |
Rogers RO4534 2-Layer PCB |
|
|
| |
|
 |
| Rogers RO4535 High Frequency PCB 2-Layer 30mil 0.762mm Antenna Circuit Board with Immersion Gold |
| Rogers RO4535 PCB delivers high-frequency antenna solutions through its 30-mil substrate construction, starting with 0.5-ounce copper that's processed to achieve 1-ounce final thickness. RO4535 PCB features a green solder mask on its top layer and full-bottom-side immersion gold plating, ensuring corrosion-resistant surface performance. Rogers RO4535 PCB meets IPC Class 2 requirements as a double-layer design, maintaining rigorous quality control through 100% electrical testing via flying probe or custom fixtures. |
Tags:
Rogers 4535 Circuit Board |
RO4535 High Frequency Antenna PCB |
Double Sided Rogers 4535 PCB |
Rogers 4535 30 Mil PCB |
Rogers 4535 Antenna PCB |
|
|
| |
|
 |
| Rogers RT/duroid 5880LZ PCB 50mil 2-Layer 1.27mm 5880LZ High Frequency PCB Circuit Board with ENIG |
| Rogers RT/duroid 5880LZ PCB delivers high-frequency performance through its 50-mil-thick PTFE composite substrate, utilizing 0.5-ounce base copper processed to 1-ounce final thickness. RT/duroid 5880LZ PCB features a green solder-masked top layer and full-bottom-side immersion gold (ENIG) surface treatment, ensuring corrosion resistance and reliable solderability. Designed for microwave systems, Rogers RT duroid 5880LZ PCB combines stable dielectric properties with enhanced copper weight to support precision RF circuits in radar and satellite communications. |
Tags:
2-Layer Rogers 5880LZ PCB |
RT/Duroid 5880LZ PCB Substrate |
Rogers 5880LZ High Frequency PCB |
RT/Duroid® 5880LZ PCB Laminates |
RT/Duroid Circuit Board |
|
|
| |
|
| |
|
|
|
|
|
|
|
|
|
|
