Rogers AD1000 Arlon High Frequency PCB Double Sided Printed Circuit Board With Low Moisture Absorption |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
General Description |
|
|
Rogers AD1000 PCB serves as a high - frequency material featuring a high dielectric constant (10.2 or greater). As a woven glass - reinforced laminate, it is notable for its ability to facilitate circuit miniaturization. In contrast to traditional low - loss materials, the AD1000 laminate has the benefit of shrinking circuit size. Additionally, when pitted against other laminates with a dielectric constant of 10, it delivers better dimensional stability and mechanical strength.
Rogers AD1000 PCBs fall into the category of soft materials. This trait enables them to efficiently endure vibrational stress. Unlike pure ceramic materials, they do not need complicated or specialized processing and handling in the manufacturing process, which makes them more practical and cost - effective for a broad spectrum of applications. |
|
|
|
|
|
Features: |
|
|
1. Woven glass reinforced PTFE/Ceramic with high Dk of 10.2
2. Thermal conductivity of 0.81 W/mK
3. High copper peel strength allows for thinner etched line widths
4. Lowest insertion loss
5. Larger panel sizes available
6. Low moisture absorption of 0.03%
7. Highly reliability ceramic component attachment and PTH reliability resulting from excellent CTE values |
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
Typical Applications: |
|
|
1. Aircraft Collision Avoidance Systems (TCAS)
2. Ground Based Radar Surveillance Systems
3. Low Noise Amplifiers (LNAs)
4. Miniaturized Circuitry & Patch Antennas
5. Power Amplifiers (PAs)
6. Radar Modules and Manifolds
7. X-Band and Below |
|
|
|
|
|

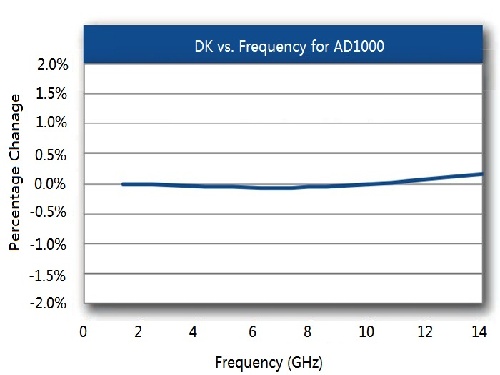

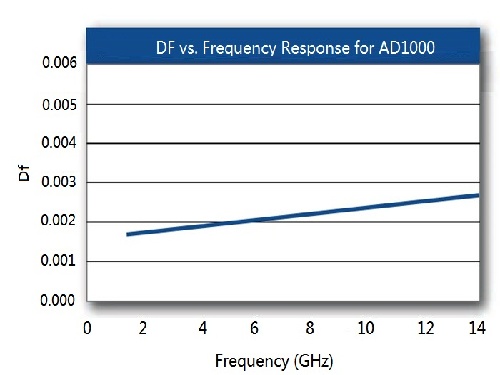

.jpg) |
|
|
|
|
|
Our PCB Capability (AD1000) |
|
|
PCB Capability (AD1000) |
PCB Material: |
Woven Glass Reinforced PTFE/Ceramic Filled |
Designation: |
AD1000 |
Dielectric constant: |
10.2 |
Dissipation Factor |
0.0023 10GHz |
Layer count: |
Double Sided PCB, Multilayer PCB, Hybrid PCB |
Copper weight: |
1oz (35µm), 2oz (70µm) |
PCB thickness: |
6mil (0.1524mm), 10.5mil (0.2667mm), 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil (0.762mm), 50mil (1.27mm), 59mil (1.499mm ), 125mil ( 3.175mm ), 127mil (3.226mm ) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, ENEPIG, Pure gold, OSP etc.. |
|
|
|
|
|
|
Why Choose Us? |
|
1. Engineering design prevents problems from occurring in pre-production;
2. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;
3. AOI inspection;
4. Delivery on time higher than 98% on-time-delivery rate;
5. 16000㎡ workshop;
6. 30000㎡ output capability per month;
7. 8000 types of PCB's per month;
8. Quick CADCAM checking and free PCB quotation;
9. More than 18+ years of PCB experience;
10. Customer complaint rate: <1% |
|
|
|
Other Available High Frequency PCBs |
|
Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.
Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.
Rogers TMM4, TMM10, Kappa 438 etc.
PTFE F4B DK2.2, DK2.65
Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35TC, RF-35, RF-35A2, RF-45, TRF-45, TLF-35, RF-60A, RF-60TC etc.
AD450, AD600, TC350 etc. |
|
|
|
Typical Value of AD1000 |
|
Property |
Units |
Value |
Test Method |
1. Electrical Properties |
Dielectric Constant (may vary by thickness) |
@1 MHz |
- |
|
IPC TM-650 2.5.5.3 |
@ 10 GHz |
- |
10.2 |
IPC TM-650 2.5.5.5 |
Dissipation Factor |
@ 1 MHz |
- |
|
IPC TM-650 2.5.5.3 |
@ 10 GHz |
- |
0.0023 |
IPC TM-650 2.5.5.5 |
Temperature Coefficient of Dielectric |
- |
|
|
TCεr @ 10 GHz (-40-150°C) |
ppm/℃ |
-380 |
IPC TM-650 2.5.5.5 |
Volume Resistivity |
C96/35/90 |
MΩ-cm |
1.40x109 |
IPC TM-650 2.5.17.1 |
E24/125 |
MΩ-cm |
5.36x107 |
IPC TM-650 2.5.17.1 |
Surface Resistivity |
C96/35/90 |
MΩ |
1.80x109 |
IPC TM-650 2.5.17.1 |
E24/125 |
MΩ |
3.16x108 |
IPC TM-650 2.5.17.1 |
Electrical Strength |
Volts/mil (kV/mm) |
622 (24.5) |
IPC TM-650 2.5.6.2 |
Dielectric Breakdown |
kV |
>45 |
IPC TM-650 2.5.6 |
Arc Resistance |
sec |
>180 |
IPC TM-650 2.5.1 |
2. Thermal Properties |
Decomposition Temperature (Td) |
Initial |
℃ |
>500 |
IPC TM-650 2.4.24.6 |
5% |
℃ |
>500 |
IPC TM-650 2.4.24.6 |
T260 |
min |
>60 |
IPC TM-650 2.4.24.1 |
T288 |
min |
>60 |
IPC TM-650 2.4.24.1 |
T300 |
min |
>60 |
IPC TM-650 2.4.24.1 |
Thermal Expansion, CTE (x,y) 50-150ºC |
ppm/℃ |
8, 10 |
IPC TM-650 2.4.41 |
Thermal Expansion, CTE (z) 50-150ºC |
ppm/℃ |
20 |
IPC TM-650 2.4.24 |
% z-axis Expansion (50-260ºC) |
% |
|
IPC TM-650 2.4.24 |
3. Mechanical Properties |
Peel Strength to Copper (1 oz/35 micron) |
After Thermal Stress |
lb/in (N/mm) |
>12 (2.1) |
IPC TM-650 2.4.8 |
At Elevated Temperatures (150º) |
lb/in (N/mm) |
13.6 (2.4) |
IPC TM-650 2.4.8.2 |
After Process Solutions |
lb/in (N/mm) |
|
IPC TM-650 2.4.8 |
Young’s Modulus |
kpsi (GPa) |
200 (1.38) |
IPC TM-650 2.4.18.3 |
Flexural Strength (Machine/Cross) |
kpsi (MPa) |
9.9/7.5 (68/52) |
IPC TM-650 2.4.4 |
Tensile Strength (Machine/Cross) |
kpsi (MPa) |
5.1/4.3 (35/30) |
IPC TM-650 2.4.18.3 |
Compressive Modulus |
kpsi (GPa) |
>425 (>2.93) |
ASTM D-3410 |
Poisson’s Ratio |
- |
0.16 |
ASTM D-3039 |
4. Physical Properties |
Water Absorption |
% |
0.03 |
IPC TM-650 2.6.2.1 |
Density, ambient 23ºC |
g/cm3 |
3.20 |
ASTM D792 Method A |
Thermal Conductivity |
W/mK |
0.81 |
ASTM E1461 |
Flammability |
class |
Meets V0 |
UL-94 |
NASA Outgassing, 125ºC, ≤10-6 torr |
% |
|
NASA SP-R-0022A |
Total Mass Loss |
% |
0.01 |
NASA SP-R-0022A |
Collected Volatiles |
% |
0.00 |
NASA SP-R-0022A |
Water Vapor Recovered |
% |
0.00 |
NASA SP-R-0022A |
|
|
|
|
|
|
|
|
|
|
|
|
