| Rogers PCB |
| |
|
Rogers high-frequency materials are specifically designed and produced by Rogers Corporation, a world-leading manufacturer of high-performance dielectrics, high-frequency laminates, and prepregs. The unique advantages of Rogers PCBs lie in their low dielectric constant and low loss characteristics, as well as their excellent thermal management capabilities and chemical resistance. Additionally, the design of Rogers PCBs allows for higher circuit density and more complex layouts, enabling engineers to integrate more functionality within a limited space. This makes them an ideal choice for high-performance electronic devices. For example，they are widely utilized in microwave and RF printed circuits and related applications in Aerospace & Defense, Wireless & Wireline (digital) Infrastructure, Automotive Radar Sensor, Satellite TV, Mobile Internet Device and High End Chip Scale Packaging. |
|
|
.JPG) |

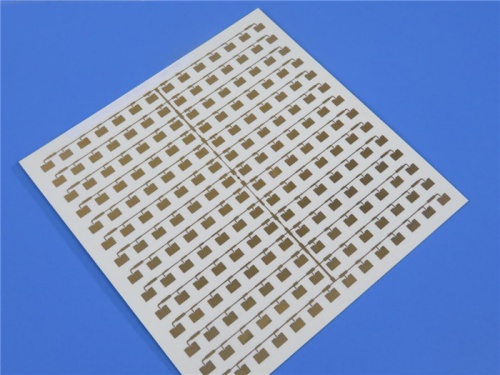

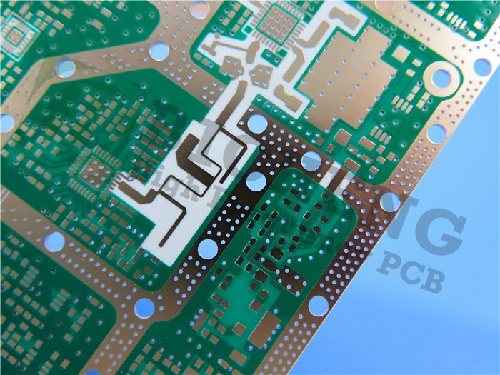

| Rogers-RO3203-High-Frequency-PCB-2-Layer-10mil-Rogers-3203-Circuit-Board-DK3.02-DF 0.0016-for-GPS-Antennas |
Rogers RO3203 High Frequency Circuit Materials are advanced ceramic-filled laminates reinforced with woven fiberglass, designed to deliver superior electrical performance and mechanical stability at cost-effective prices. With a dielectric constant of 3.02 and an ultra-low dissipation factor of 0.0016, Rogers RO3203 laminates support high-frequency applications exceeding 40 GHz. |
Tags:
Microwave Rogers 3203 PCB |
Rogers RO3203 PCB |
High Frequency 2 Layer PCB |
Rogers 3203 PCB Board |
2-Layer 10mil Circuit Board PCB |
|
|
| |
|
.jpg) |
|
| |
|
 |

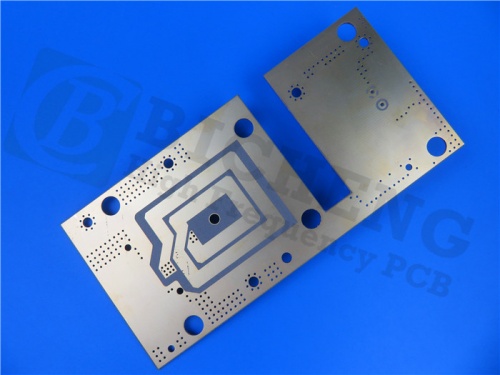

| RT/duroid-6035HTC-High-Frequency-PCB-Built-on-Rogers-10mil-Core-With-Immersion-Gold-for-Filters |
| Rogers RT/duroid 6035HTC high - frequency circuit materials are ceramic - filled PTFE composites designed for high - power RF and microwave applications. These laminates have a thermal conductivity nearly 2.4 times that of the standard RT/duroid 6000 products. Moreover, they come with copper foil (both electrodeposited and reverse - treated) that offers excellent long - term thermal stability. Thus, RT/duroid 6035HTC laminates stand out as an outstanding option for high - power applications. |
Tags:
RT/duroid-6035HTC atasheet |
10mil RT/duroid 6035HTC Thickness |
Rogers RT/duroid 6035HTC PCB |
RT/duroid 6035HTC Online Purchase |
RT/duroid 6035HTC Substrate |
|
|
| |
|
 |

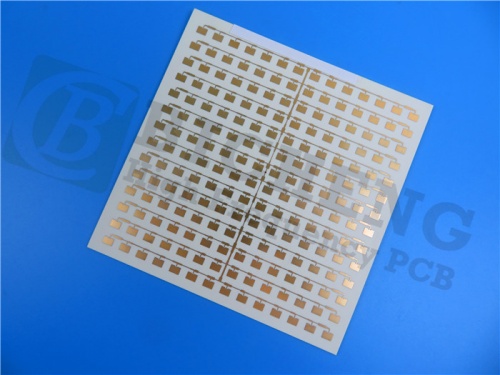

| Rogers-RO4003C-LoPro-PCB-12.7mil-Reverse-Treated-Foil-(RTF)-Circuit-Board-for-High-Speed-Back-Planes |
| RO4003C LoPro laminates utilize a patented technology from Rogers. This technology enables the reverse - treated foil to adhere to the standard RO4003C dielectric. As a result, the laminate has low conductor loss, which enhances insertion loss performance and signal integrity. At the same time, it retains all the other favorable characteristics of the standard RO4003C PCB system. |
Tags:
RO4003C LoPro PCB |
Rogers LoPro RTF PCB |
Rogers RTF PCB |
RO4003C Circuit Board |
LoPro RTF Circuit Board |
|
|
| |
|
 |

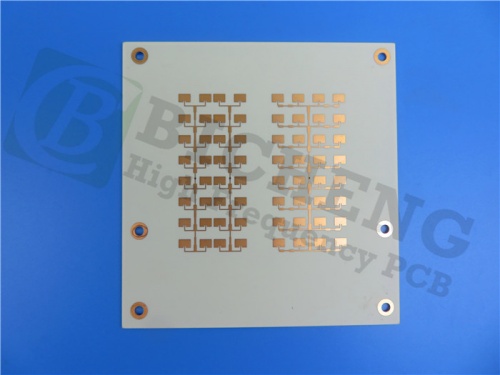

| RO4003C-LoPro-High-Frequency-PCB-16.7mil-Low-Profile-Copper-for-Routers-and-Servers-From-Rogers |
A proprietary Rogers' technology is employed in RO4003C LoPro laminates. This technology makes it possible for the reverse - treated foil to bond with the standard RO4003C dielectric. The outcome is a laminate with reduced conductor loss, leading to better insertion loss and signal integrity. Meanwhile, it keeps all the other desirable features of the standard RO4003C PCB system. |
Tags:
RO4003C LoPro PCB Substrates |
RO4003C LoPro High Frequency PCB |
Rogers RO4003C LoPro PCB |
RO4003C LoPro PCB Material |
RO4003C LoPro Printed Circuit Board |
|
|
| |
|
.PNG) |

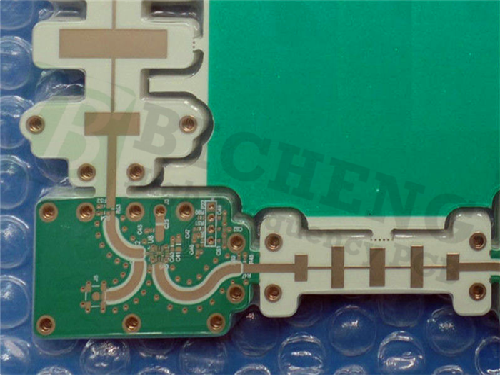

| 10.7mil-RO4350B-LoPro-High-Frequency-PCB-Rogers-Reverse-Treated-Foil-Circuit-Board-With-Low-Loss |
| RO4350B LoPro laminates leverage a patented Rogers' technology. This technology enables the reverse - treated foil to form a bond with the standard RO4350B dielectric. The end result is a laminate featuring low conductor loss, which enhances insertion loss performance and signal integrity. At the same time, it preserves all the other favorable characteristics of the standard RO4350B PCB system. |
Tags:
RO4350B LoPro PCB |
RO4350B High Frequency PCB |
Rogers RO4350B RFT Foil PCB |
RO4350B PCB Immersion Gold |
2-Layer Rogers RO4350B PCB |
|
|
| |
|
 |
| Rogers-TC350-10Mil-Double-Sided-High-Frequency-PCB-With-Immersion-Gold-for-Microwave-Combiners |
| Rogers TC350 is a composite material crafted from woven fiberglass reinforcement, ceramic filling, and a PTFE base, specifically developed for printed circuit board manufacturing. TC350 PCB is engineered to offer superior heat - transfer capabilities with its "Best - In - Class" thermal conductivity. Simultaneously, it is designed to minimize dielectric loss and insertion loss. The reduction in losses leads to increased amplifier and antenna gains as well as improved efficiencies. |
Tags:
10mil TC350 PCB |
Rogers TC350 Laminate |
TC350 Microwave PCB |
TC350 High Frequency PCB |
2-Layer Rogers TC350 PCB |
|
|
| |
|
 |

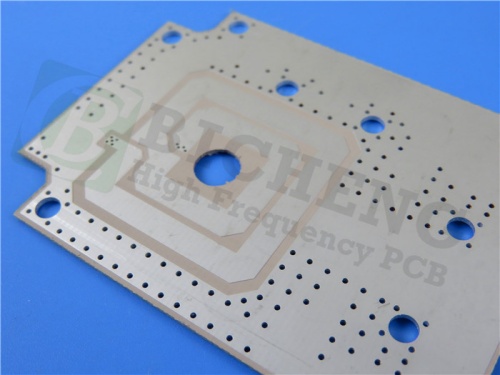

| 20mil-Rogers-TC350-High-Frequency-PCB-On-Double-Sided-Core-With-Immersion-Gold-for- Filters-and-Couplers |
| Rogers TC350, a composite consisting of woven fiberglass reinforcement, ceramic filling, and a PTFE matrix, which is intended for use in the production of printed circuit boards. Rogers TC350 PCB has been designed to deliver enhanced heat - transfer performance due to its "Best - In - Class" thermal conductivity. Additionally, it aims to cut down dielectric loss and insertion loss. These lower losses ultimately contribute to higher amplifier and antenna gains and greater efficiencies. |
Tags:
Arlon TC350 PCB Material |
TC350 Immersion Gold Finished PCB |
Rogers Double Sided TC350 PCB |
TC350 HF Circuit Boards PCB |
20Mil Rogers TC350 PCB |
|
|
| |
|
.jpg) |

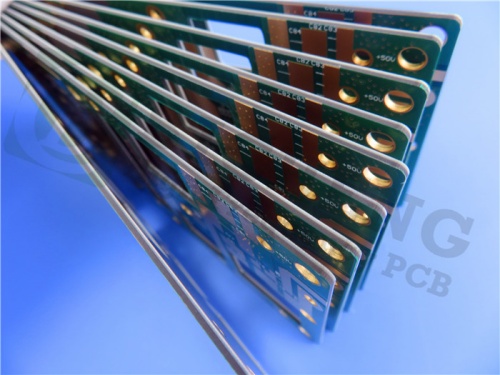

| 15mil-Rogers-TMM10-High-Frequency-PCB-With-Immersion-Gold-and-Green-Solder-Mask-for-Chip-Testers |
| Rogers’ TMM10 thermoset microwave materials are ceramic, hydrocarbon, thermoset polymer composites. They are engineered for high-reliability stripline and microstrip applications with plated-thru-holes.? Rogers TMM10 laminates blend the advantages of ceramic and traditional PTFE microwave circuit laminates in terms of electrical and mechanical properties. |
Tags:
Rogers TMM10 Datasheet |
15mil TMM10 Thickness |
TMM10 High Frequency PCB |
Rogers TMM10 PCB |
TMM10 Immersion Gold PCB |
|
|
| |
|
.jpg) |

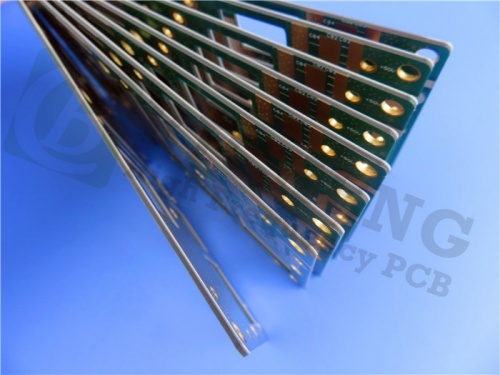

| Rogers-TMM10-25mil-0.635mm-Microwave-PCBs-Chemical-Gold-and-Green-Solder-Mask-for-Dielectric-Polarizers-and-Lenses |
| Rogers TMM10 thermoset microwave PCBs are a type of ceramic, hydrocarbon, and thermoset polymer composite. They are specifically designed for stripline and microstrip applications where high plated-thru-hole reliability is crucial. In terms of electrical and mechanical characteristics, TMM10 laminates bring together the benefits of both ceramic and traditional PTFE microwave circuit laminates. The best part is that it doesn't need the special production methods often required for these materials. |
Tags:
TMM10 Microwave PCB |
25mil Rogers TMM10 PCB |
TMM10 High Frequency PCB |
Rogers TMM10 substrate |
TMM10 Green Solder Mask PCB |
|
|
| |
|
| |
|
| |
|
