20mil-Rogers-TC350-High-Frequency-PCB-On-Double-Sided-Core-With-Immersion-Gold-for- Filters-and-Couplers |
|
|

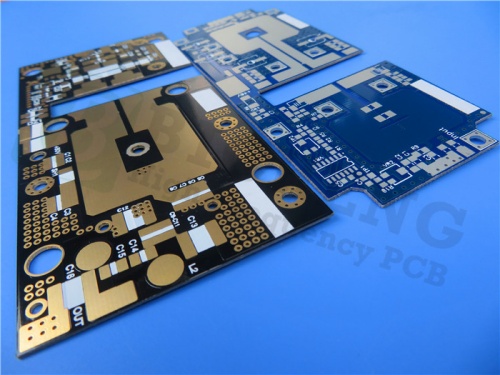

(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Rogers TC350, a composite consisting of woven fiberglass reinforcement, ceramic filling, and a PTFE matrix, which is intended for use in the production of printed circuit boards. Rogers TC350 PCB has been designed to deliver enhanced heat - transfer performance due to its "Best - In - Class" thermal conductivity. Additionally, it aims to cut down dielectric loss and insertion loss. These lower losses ultimately contribute to higher amplifier and antenna gains and greater efficiencies. |
|
|
.jpg) |
|
|
|
|
|
Features and Benefits: |
|
|
The elevated thermal conductivity of Rogers TC350 laminate allows for greater power handling capacity, reduces the occurrence of hot - spots, and enhances device dependability. Consequently, junction temperatures are lowered, and the life of active components is extended. These improvements are vital for enhancing the reliability of power amplifiers, increasing the MTBF, and reducing the expenses associated with warranties.
TC350 PCB offers excellent stability of the dielectric constant throughout a wide temperature span. This helps those designing power amplifiers and antennas to achieve maximum gain and minimize the wasted bandwidth due to changes in the dielectric constant as the operating temperature varies.
TC350 substrate has a strong adhesion to copper, using copper of microwave quality and low profile. As a result, the insertion loss is further reduced because the skin - effect losses of copper, which become more apparent at higher RF and microwave frequencies, are diminished. |
|
|
|
|
|
PCB Capability (TC350) |
|
|
Our PCB Capability (TC350) |
PCB Material: |
Woven Fiberglass Reinforced, Ceramic Filled, PTFE based Composite |
Designation: |
TC350 |
Dielectric constant: |
3.5±0.05 |
Thermal Conductivity |
0.72 W/m-K |
Dissipation Factor |
Df .002@10 GHz |
Layer count: |
Single Layer, Double Layer, Multi-layer, Hybrid PCB |
Copper weight: |
1oz (35µm), 2oz (70µm) |
PCB thickness: |
10mil (0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil(1.524mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, OSP, Immersion silver, Immersion tin, ENEPIG, Pure gold etc.. |
|
|
|
|
|
|
Typical applications: |
|
|
1. Microwave Combiner and Power Dividers
2. Power Amplifiers, Filters and Couplers
3. Tower Mounted Amplifiers (TMA) and Tower Mounted Boosters (TMB)
4. Thermally Cycled Antennas sensitive to dielectric drift |
|
|
|
|
Typical Properties of TC350 |
|
Typical Properties:TC350 |
Property |
Units |
Value |
Test Merthod |
1. Electrical Properties |
|
Dielectric Constant (may vary by thickness) |
|
|
|
@1 MHz |
－ |
3.50 |
IPC TM-650 2.5.5.3 |
@1.8 GHz |
－ |
3.50 |
RESONANT CAVITY |
@10 GHz |
－ |
3.50 |
IPC TM-650 2.5.5.5 |
Dissipation Factor |
|
|
|
@1 MHz |
－ |
0.0015 |
IPC TM-650 2.5.5.3 |
@1.8 GHz |
－ |
0.0018 |
RESONANT CAVITY |
@10 GHz |
－ |
0.0020 |
IPC TM-650 2.5.5.5 |
Temperature Coefficient of Dielectric |
－ |
|
|
TC r @ 10 GHz (-40-150°C) |
ppm/ºC |
-9 |
IPC TM-650 2.5.5.5 |
Volume Resistivity |
|
|
|
C96/35/90 |
MΩ-cm |
7.4x106 |
IPC TM-650 2.5.17.1 |
E24/125 |
MΩ-cm |
1.4x108 |
|
Surface Resistivity |
|
|
|
C96/35/90 |
MΩ |
3.2x107 |
IPC TM-650 2.5.17.1 |
E24/125 |
MΩ |
4.3x108 |
IPC TM-650 2.5.17.1 |
Electrical Strength |
Volts/mil (kV/mm) |
780 (31) |
IPC TM-650 2.5.6.2 |
Dielectric Breakdown |
kV |
40 |
IPC TM-650 2.5.6 |
Arc Resistance |
sec |
>240 |
IPC TM-650 2.5.1 |
2.Thermal Properties |
|
Decomposition Temperature (Td) |
|
|
|
Initial |
°C |
520 |
IPC TM-650 2.4.24.6 |
5% |
°C |
567 |
IPC TM-650 2.4.24.6 |
T260 |
min |
>60 |
IPC TM-650 2.4.24.1 |
T288 |
min |
>60 |
IPC TM-650 2.4.24.1 |
T300 |
min |
>60 |
IPC TM-650 2.4.24.1 |
Thermal Expansion, CTE (x,y) 50-150ºC |
ppm/ºC |
7, 7 |
IPC TM-650 2.4.41 |
Thermal Expansion, CTE (z) 50-150ºC |
ppm/ºC |
23 |
IPC TM-650 2.4.24 |
% z-axis Expansion (50-260ºC) |
% |
1.2 |
IPC TM-650 2.4.24 |
3. Mechanical Properties |
|
Peel Strength to Copper (1 oz/35 micron) |
|
|
|
After Thermal Stress |
lb/in (N/mm) |
7 (1.2) |
IPC TM-650 2.4.8 |
At Elevated Temperatures (150ºC) |
lb/in (N/mm) |
9 (1.6) |
IPC TM-650 2.4.8.2 |
After Process Solutions |
lb/in (N/mm) |
7 (1.2) |
IPC TM-650 2.4.8 |
Young’s Modulus |
kpsi (MPa) |
|
IPC TM-650 2.4.18.3 |
Flexural Strength (Machine/Cross) |
kpsi (MPa) |
14/10 (97/69) |
IPC TM-650 2.4.4 |
Tensile Strength (Machine/Cross) |
kpsi (MPa) |
11/8 (76/55) |
IPC TM-650 2.4.18.3 |
Compressive Modulus |
kpsi (MPa) |
|
ASTM D-3410 |
Poisson’s Ratio |
－ |
|
ASTM D-3039 |
4. Physical Properties |
|
Water Absorption |
% |
0.05 |
IPC TM-650 2.6.2.1 |
Density, ambient 23ºC |
g/cm3 |
2.30 |
ASTM D792 Method A |
Thermal Conductivity |
W/mK |
0.72 |
ASTM D5470 |
Specific Heat |
J/gK |
0.90 |
ASTM D5470 |
Flammability |
class |
V-0 |
UL-94 |
NASA Outgassing, 125ºC, ≤10- 6 torr |
|
|
|
Total Mass Loss |
% |
0.02 |
NASA SP-R-0022A |
Collected Volatiles |
% |
0.01 |
NASA SP-R-0022A |
Water Vapor Recovered |
% |
0.01 |
NASA SP-R-0022A |
|
|
|
|
|
|
|
|
|
|
|
|
