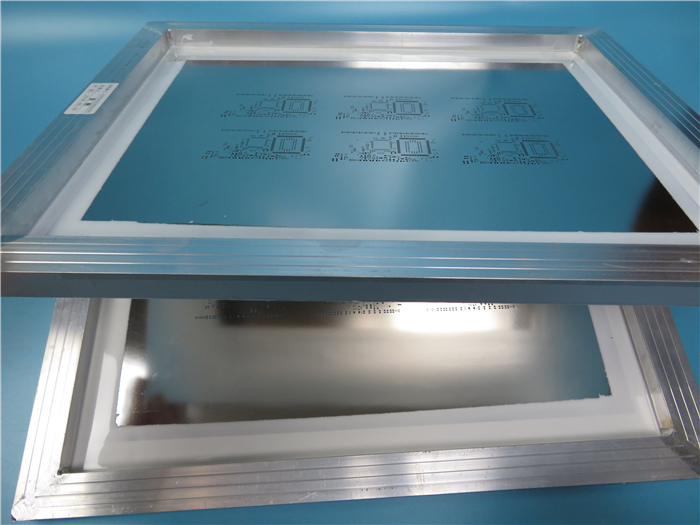

Aluminum Frame SMT Stencil: Precision Laser-Cut PCB Stencil for Screen Printing

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.

General Description

We specialize in manufacturing high-quality, laser-cut SMT stencils, available in both framed and frameless options. All our stencils are 100% laser-cut from stainless steel foil strictly following the IPC-7525A standard and your supplied Gerber data to ensure superior solder paste deposition.

We offer a wide range of specifications to meet diverse SMT assembly needs. The stencil foil thickness ranges from 0.05mm (2 mil) for ultra-fine-pitch components to 0.4mm (16 mil) for high-volume printing, with standard sizes from 300mm x 300mm up to 600mm x 600mm.

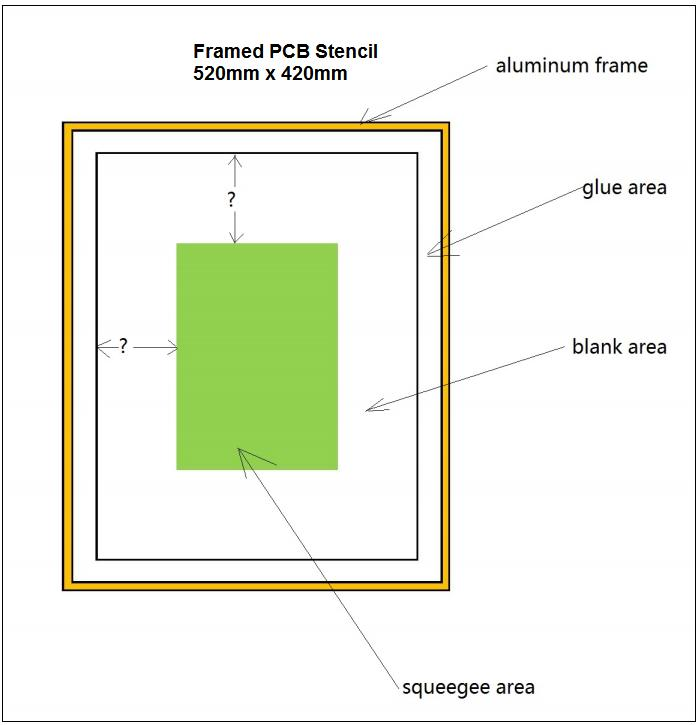

Designed for seamless integration into your SMT production line, our stencils feature a centralized squeegee area and half-etched fiducial marks on the backside for perfect compatibility with automated SMT machine vision systems. Each stencil is securely packed in protective KK hardboard cartons, with a standard shipment quantity of 2 stencils per order.

Features and Benefits:

1.) The data file is used directly to produce and reduce the error rate;

2.) The opening accuracy of SMT template is very high: the whole process error is ≤ ±4 μ m;

3.) The opening of SMT template has geometric figure, which is advantageous to the printing and forming of tin paste;

4.) Quick and on-time delivery;

5.) Diversified shipping method;

6.) No MOQ, low cost for prototypes and small runs quantity

Applications:

SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.

Manufacturing Essentials:

1) Aluminium Frame

2) Laser cut

3) PCB locate in the middle of squeegee area.

4) Stainless Steel Shim: In general a standard thickness of 5 mils. For microBGA step down in the area to 4mils. For fine pitch QFP reduce the paste apertures by 10%-15% at centre.

5) Reduction for fine pitch components

6) Engraving is required

7) Electro Polishing

Available Thickness of Stainless Steel Foils:

0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm, 0.25mm, 0.3mm, 0.4mm

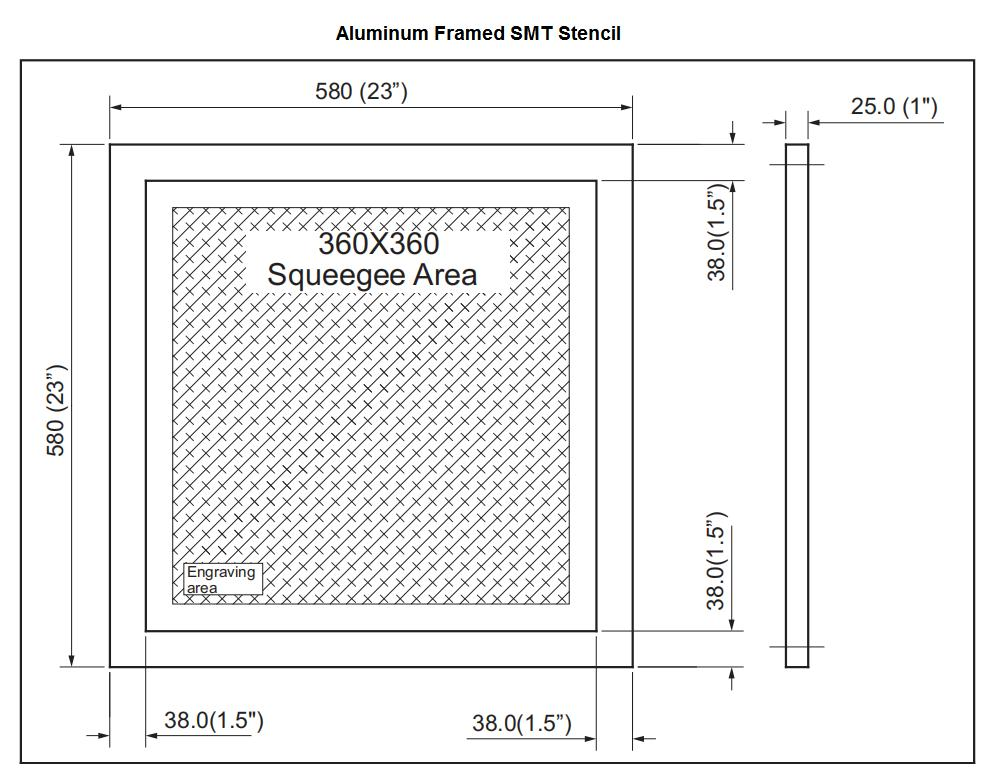

Commonly used Frame Size:

While stencils are typically custom-made, several frame sizes have become standardized and are widely adopted across the industry. Common examples include 300mm x 300mm, 520mm x 420mm, and 600mm x 600mm.

Although stencil is custom-made product, there are also some sizes which are in common use. For example, 300mm x 300mm, 520mm x 420mm, 600mm x 600mm

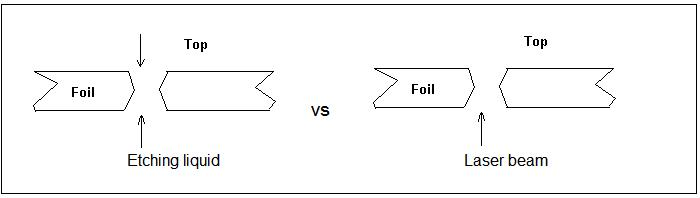

 Opening Holes Design for SMT Stencil:
