Rogers 3210 Hybrid PCB 4-Layer 0.508mm RO3210 Laminate with RO4450F Immersion Gold and Silver Wireless Communication PCB

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.

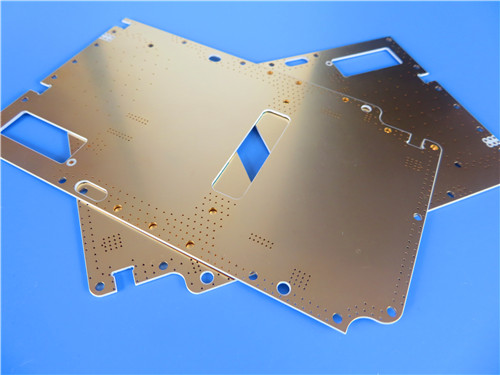

1. Product Overview

Rogers 3210 4-layer hybrid PCB adopts a premium Rogers RO3210 laminate and RO4450F composite dielectric structure, featuring a total pressed thickness of 1.22mm and dual surface finishing of immersion gold plating and silver plating. Manufactured with strict industrial processing standards, RO3210 PCB is designed with double-sided no solder mask and no silkscreen layout, delivering pure and stable surface electrical conductivity for high-frequency signal transmission. Rogers 3210 1.22mm circuit board adopts a symmetrical stacking structure with 1oz finished copper weight for both outer and inner copper layers, ensuring consistent current carrying capacity and circuit stability. With a standard dimension of 79mm x 79mm and customized depth-controlled groove processing technology, Rogers RO3210 high frequency circuit materials  provides high structural flexibility and precision assembly performance. Tailored for high-reliability RF and microwave application scenarios, Rogers RO3210 and RO4450F 4-layer PCB combines the excellent dielectric stability of RO3210 substrate and the reliable bonding performance of RO4450F prepreg, achieving low signal loss and long-term operational stability for commercial and industrial high-frequency electronic systems.

2. PCB Construction Specifications

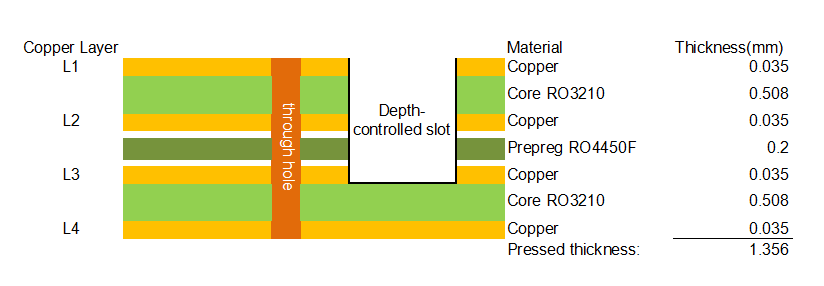

3. PCB Stackup Structure

Rogers RO3210 and RO4450F 4-layer rigid PCB adopts a balanced symmetrical stackup design, which effectively eliminates structural stress, ensures uniform thermal expansion and contraction, and maintains ultra-stable high-frequency signal transmission performance:

4. RO3210 & RO4450F Copper Clad Laminate Knowledge

Rogers 3210 4-layer high frequency PCB is fabricated with professional Rogers RO3210 dielectric substrate and RO4450F bonding prepreg, two mainstream high-performance materials widely used in modern RF and microwave PCB manufacturing. The combination of these two materials achieves complementary performance advantages, balancing low dielectric loss, high structural stability and reliable lamination tightness.

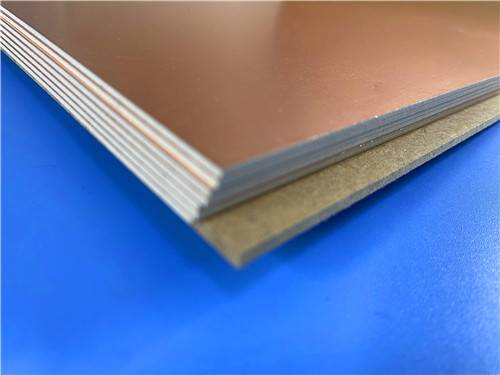

4.1 RO3210 High Frequency Circuit Laminate Overview

Rogers RO3210 laminate belongs to the professional RO3200 series high-frequency circuit laminates developed by Rogers, a upgraded extension of the classic RO3000® series high-frequency substrate materials. This high-performance CCL is a ceramic-filled laminate reinforced with woven glass fiber, precisely engineered to deliver outstanding electrical performance and superior mechanical stability at a cost-effective price point. Differentiated from conventional high-frequency substrates, Rogers RO3200 series integrates dual core advantages: the ultra-smooth surface of non-woven PTFE laminates and the structural rigidity of woven-glass PTFE laminates. This unique composite structure enables finer line etching tolerance and stable overall board performance. Compliant with standard PTFE PCB fabrication procedures specified in official RO3000 series processing guidelines, RO3210 PCB substrate features a fixed dielectric constant of 10.2 and an ultra-low dissipation factor of 0.0027, delivering consistent low-loss performance for microwave and RF circuit applications. All RO3200 series laminates are produced under strict ISO 9002 certified quality management systems to ensure standardized and reliable product quality.

4.2 Core Features & Benefits of RO3210 Laminate

1. Woven Glass Fiber Reinforcement: The built-in woven glass fiber structure significantly enhances substrate rigidity, simplifying board handling, lamination and subsequent processing procedures while effectively reducing production defects.
2. Uniform Electrical & Mechanical Performance: Achieves highly consistent electrical parameters and mechanical stability across the entire board, perfectly adapting to complex multi-layer high-frequency PCB stacking structures and meeting rigorous RF circuit design requirements.
3. Low In-Plane Thermal Expansion Coefficient: The in-plane expansion coefficient is well matched with copper foil, making the laminate compatible with epoxy-based hybrid multi-layer PCB designs. It ensures high stability and reliability for surface-mount assembly processes, avoiding component displacement and solder joint failure caused by thermal expansion and contraction.
4. Excellent Dimensional Stability: Maintains stable board dimensions during high-temperature processing and long-term operation, effectively improving finished product yield in mass production.
5. Cost-Effective Mass Production: Priced economically with stable processing adaptability, it supports high-efficiency and low-cost volume manufacturing of high-frequency PCBs, balancing premium performance and production cost.
6. Superior Surface Smoothness: The optimized smooth substrate surface supports ultra-fine line etching tolerance, enabling precise circuit patterning for high-density miniaturized high-frequency PCB designs.

4.3 RO3210 Laminate Typical Application Scenarios

1. Rogers 3210 high-frequency laminate is widely adopted in commercial, industrial and automotive high-frequency wireless systems, covering the following core application fields, with stable dielectric performance, excellent mechanical stability and cost advantages.
2. Automotive Collision Avoidance System Circuits
3. Automotive GPS Satellite Antenna Boards
4. Wireless Telecommunication System Hardware
5. Wireless Communication Microstrip Patch Antennas
6. Direct Broadcast Satellite Equipment
7. Cable System Datalink Circuit Modules
8. Remote Meter Reading Device PCBs
9. High-Frequency Power Backplane Boards
10. LMDS & Wireless Broadband Communication Equipment
11. Wireless Base Station Infrastructure Circuit Systems

4.4 RO4450F Prepreg Core Characteristics

1. Superior Lamination Bonding Performance: As a high-frequency bonding prepreg matched with Rogers series substrates, RO4450F Prepreg provides uniform bonding strength between RO3210 core layers. It effectively improves the overall structural compactness of multi-layer PCBs and prevents layer separation during long-term use.
2. Compatible Dielectric Parameters: The dielectric constant and loss parameters of RO4450F prepreg are highly matched with RO3210 substrate, avoiding local signal distortion caused by parameter mismatch and ensuring the overall consistency of high-frequency circuit transmission performance.
3. Stable Processing Performance: RO4450F prepreg adapts to standard high-frequency PCB pressing and processing procedures, with stable fluidity and curing performance, supporting precise thickness control of 1.22mm overall pressing thickness of this hybrid PCB.

4.5 Hybrid Material Combination Advantages

1. The combination of Rogers RO3210 substrate and RO4450F prepreg integrates low-loss high-frequency performance and high structural stability, solving the problems of unstable signal transmission and poor lamination reliability of ordinary multi-layer PCBs.
2. The symmetrical double-layer RO3210 structure ensures balanced upper and lower electrical performance, while the middle RO4450F prepreg enhances the overall toughness and compression resistance of the circuit board.
3. Matched with double-sided gold and silver composite surface treatment, the material system achieves both excellent signal transmission performance and high surface conductivity and oxidation resistance.

5. Typical Application Fields

Benefiting from low high-frequency loss, stable dielectric performance, high structural reliability and customized depth-controlled groove processing capability, Rogers RO3210 and RO4450F hybrid PCB is widely used in high-precision and high-reliability high-frequency electronic fields:

1. Microwave and Millimeter-Wave Communication Circuits
2. High-Precision Radar System Equipment
3. RF Signal Processing and Front-End Module Devices
4. Aerospace and Military-Grade High-Frequency Electronic Systems
5. Precision Navigation and Positioning Circuit Boards
6. Customized High-Reliability Industrial RF Equipment

6. Rogers RO3210 DataSheet

7. Summary

Rogers 3210 and RO4450F 4-layer high frequency PCB is a high-reliability multi-layer RF circuit board with 1.22mm total pressed thickness, featuring 1oz inner and outer finished copper layers and dual gold and silver plating surface treatment. Adopting a symmetrical composite stackup of double 0.508mm RO3210 substrates and 0.2mm RO4450F prepreg, this 79mm x 79mm customized PCB delivers ultra-low high-frequency signal loss and excellent structural stability. Designed with double-sided solder mask free and silkscreen free structure and precision depth-controlled groove processing, the product features pure surface conductivity, flexible assembly adaptability and strong environmental resistance. With stable comprehensive performance of Rogers high-frequency materials, Rogers 3210 hybrid PCB meets the strict manufacturing requirements of military, aerospace, communication and precision radar high-frequency equipment, providing reliable long-term operation support for various high-reliability RF circuit systems.
