Rogers 3010 High Frequency PCB 1.27mm RO3010 Laminate and FR4 1080 PP Hybrid Circuit Board for Industrial RF Devices

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.

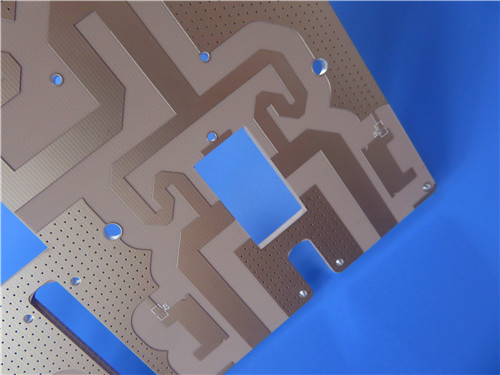

1. Product Overview

This premium 4-layer hybrid high frequency PCB is built around professional Rogers PCB material, adopting a symmetric stackup structure with Rogers RO3010 ceramic-filled substrate and FR4 1080 prepreg to achieve a standard finished pressing thickness of 2.8mm. As a high-performance circuit solution centered on Rogers RO3010 high frequency PCB material, this heterogeneous lamination design is professionally optimized to enhance structural stability, effectively improve board warpage, and avoid common pressing defects of mixed-structure RF circuit boards. Every copper layer of Rogers 3010 hybrid PCB is configured with 1oz finished copper weight, delivering stable current conduction and consistent electrical performance for high-frequency signal transmission. The board features reliable immersion tin surface treatment and precise white silkscreen printing with no solder mask coverage, ensuring clean surface conductivity and clear circuit identification. Sized at 143mm x 97.5mm,  Rogers 3010 microwave PCB adopts strict CTE matching technology and standardized flow glue management during lamination, securing strong interlayer bonding and high mass production yield. Specially engineered for microwave RF circuits and industrial high-frequency devices,

Rogers 3010 RF circuit board perfectly balances ultra-low signal loss, outstanding mechanical stability and cost-effective industrial manufacturability.

2. PCB Construction Specifications

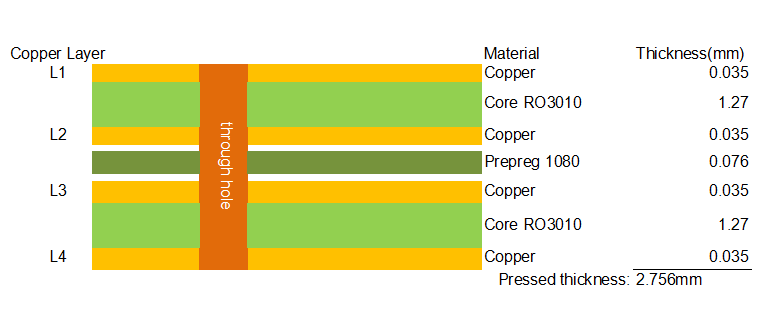

3. Rogers 3010 PCB Stackup Structure

Rogers 3010 4-layer PCB adopts a fully symmetric heterogeneous stackup layout, which serves as the core optimization solution for mitigating board warpage, balancing thermal expansion coefficients, and reducing lamination risks of high-frequency circuit boards. The balanced upper and lower Rogers RO3010 substrate structure offsets internal mechanical stress, stabilizes the dielectric performance of the entire Rogers RO3010 high frequency PCB, and significantly improves the pressing yield of hybrid RF boards:

1. Copper Layer 1 – 1oz Finished Copper
2. RO3010 Core Substrate – 1.27mm
3. 1080 FR4 Prepreg – 0.076mm
4. RO3010 Core Substrate – 1.27mm
5. Copper Layer 4 – 1oz Finished Copper

4. Rogers 3010 PCB & 1080 FR4 Hybrid CCL Knowledge

This industrial-grade high frequency PCB takes high-quality Rogers 3010 ceramic-filled substrate as the core dielectric material, paired with mainstream 1080 FR4 prepreg to form a mature heterogeneous hybrid lamination structure. As a classic high-performance material in RF circuit manufacturing, Rogers RO3010 PCB material provides stable low-loss high-frequency electrical performance, while the matched FR4 prepreg ensures reliable interlayer bonding. The symmetric dual-layer Rogers 3010 structure endows the whole circuit board with consistent dielectric stability, and professional CTE matching and flow glue control processes effectively solve warpage and delamination problems common in dissimilar-material Rogers 3010 hybrid PCB production.

4.1 Rogers 3010 PCB Ceramic-Filled Substrate Performance

1. Low-Loss High-Frequency Performance:  Rogers 3010 high frequency PCB uses premium ceramic-enhanced PTFE substrate material, featuring fixed stable dielectric constant and ultra-low dissipation factor. It effectively suppresses high-frequency signal attenuation and phase shift, delivering precise and reliable signal transmission for all microwave and RF circuits based on Rogers RO3010 material.
2. Stable Thermal Expansion Coefficient: Rogers RO3010 high frequency PCB substrate has standardized in-plane CTE parameters, which achieve excellent matching with copper foil and FR4 prepreg after professional stackup design. This greatly reduces thermal stress during high-temperature pressing and welding, improving the structural stability of Rogers 3010 hybrid boards.
3. Superior Dimensional Stability: The unique ceramic-filled structure of Rogers 3010 PCB greatly enhances substrate rigidity and overall dimensional stability, effectively preventing board deformation and warpage during long-term high-frequency device operation.
4. Excellent Industrial Processability: Standard high-frequency PCB fabrication processes are fully compatible with Rogers RO3010 PCB material, supporting customized thickness lamination, precision drilling, plating and special surface treatment, with stable and reliable batch production performance.

4.2 1080 FR4 Prepreg Lamination Advantages & Risk Control

1. Precise Thickness Fitting: The 0.076mm ultra-thin 1080 prepreg perfectly matches the 1.27mm thick RO3010 substrate, realizing accurate control of the overall 2.8mm board thickness and avoiding thickness deviation affecting assembly.
2. Stable Flow & Filling Performance: Strict flow glue and filling glue management is implemented during lamination to prevent glue shortage, excessive flow and cavity defects, ensuring full bonding between dissimilar material layers.
3. Optimized Interlayer Bonding Force: The 1080 FR4 prepreg has excellent adhesion with RO3010 substrate, effectively solving the delamination risk of heterogeneous mixed lamination and improving the overall structural compactness of the PCB.
4. Optimized Warpage Control: Combined with symmetric stackup design, the uniform stress of FR4 prepreg offsets the thermal expansion difference of Rogers 3010 PCB substrate, drastically reducing finished board warpage and improving the flatness of hybrid high-frequency boards.

4.3 Rogers 3010 PCB CTE Matching & Hybrid Design Key Points

1. Symmetric Stackup Core Principle: The dual-sided symmetric layout of Rogers 3010 PCB substrates is the key to balancing CTE differences between dissimilar materials, avoiding unilateral stress concentration and ensuring consistent thermal stability of the entire hybrid circuit board.
2. Precise Parameter Calibration: According to the CTE values of RO3010, FR4 prepreg and copper foil, the pressing temperature and pressure parameters are calibrated to reduce performance difference caused by material mismatch.
3. Strict Process Supervision: For heterogeneous mixed lamination, low-temperature bonding and segmented pressurization processes are adopted to avoid substrate deformation and electrical performance changes caused by excessive thermal shock.

5. Typical Application Fields

Benefiting from the inherent low-loss dielectric performance of Rogers 3010 PCB, optimized warpage control and reliable heterogeneous lamination structure, Rogers RO3010 & 1080 FR4 hybrid 4-layer PCB is widely deployed in industrial high-frequency communication systems and precision RF detection equipment:

1. Industrial Microwave Communication Circuit Systems
2. Medium-Frequency RF Signal Processing Modules
3. Wireless Communication Fixed Antenna Boards
4. High-Stability Industrial Detection Electronic Equipment
5. Customized High-Frequency Rigid Circuit Board Projects

6. DataSheet

7. Summary

Rogers 3010 high frequency circuit board is a high-stability heterogeneous lamination RF PCB with a standard finished thickness of 2.8mm. Adopting a professional symmetric stackup structure with dual 1.27mm Rogers RO3010 ceramic-filled substrates and 0.076mm 1080 FR4 prepreg,  Rogers RO3010 high frequency PCB effectively optimizes board warpage and eliminates common lamination risks of dissimilar materials through precise CTE matching and standardized process control. Equipped with full-layer 1oz finished copper and premium immersion tin surface treatment, paired with no-solder-mask and white silkscreen design,  Rogers 3010 hybrid PCB delivers excellent surface conductivity and accurate circuit identification. Featuring stable low-loss dielectric characteristics and high industrial production yield,  Rogers 3010 microwave material provides long-lasting, high-precision circuit support for various industrial high-frequency communication and RF electronic devices.
