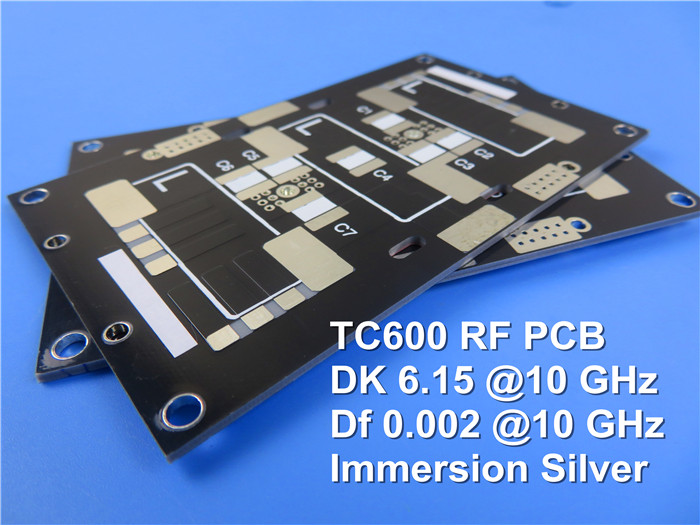

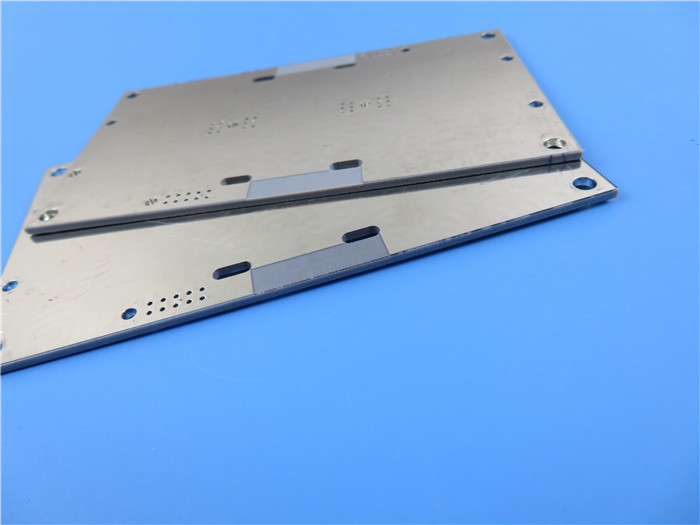

Rogers TC600 High Frequency PCB 50mil 1.27mm Double Sided Microwave Circuit Board With Immersion Silver

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.

General Description

Here's an innovative Rogers TC600 printed circuit board designed specifically for efficient heat management. Crafted on a 50mil - thick Rogers (Arlon) TC600 substrate, this double - layer PCB starts with a 0.5oz copper layer and finishes at 1oz, optimizing electrical conductivity and thermal dissipation. The component side features a sleek black solder mask, not only providing protection but also adding a professional aesthetic touch. The pads are treated with immersion silver plating, ensuring excellent solderability and long - term reliability.

Rogers TC600 PCB, manufactured to stringent IPC class 2 standards, guarantees consistent quality and performance. Before leaving our facility, every single unit undergoes a comprehensive 100% electrical inspection, utilizing either a precise flying probe test or a reliable test fixture. This meticulous testing process ensures that each PCB meets the highest standards, ready to enhance the thermal and electrical performance of your next - generation electronics.

PCB Specifications

Our Advantages

1. Powerful PCB capabilities support your research and development, sales and marketing;
2. PCB Products and Manufacturing are certified by authorized organizations;
3. 16000㎡ workshop with 30000㎡ output capability and 8000 types of PCB's per month;
4. Quick CADCAM checking and free PCB quotation;
5. No minimum order quantity. 1 piece is available;
6. A Team with passion, discipline, responsibility and honesty;
7. More than 19+ years of high frequency PCB experience;
8. Prototype PCB capability to Volume Production capability;
9. Delivery on time: >98%, Customer complaint rate: <1%
10. IPC Class 2 / IPC Class 3;

Our PCB Capabilities(2022)
