Rogers RO3206 High-Frequency PCB: 0.635mm Substrate with 2-Layer 1oz Copper and Immersion Silver Finish

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.

General Description

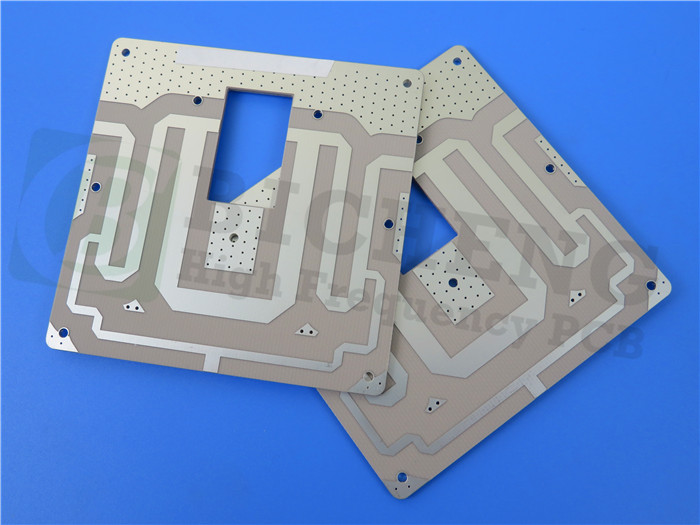

This Rogers PCB is a high-performance double-layer rigid PCB fabricated with Rogers RO3206 high-frequency laminate, engineered for demanding RF and microwave applications. Rogers RO3206 PCB board stack-up features two 1 oz (35 μm) copper layers with a 0.635 mm RO3206 core, resulting in a finished board thickness of 0.8 mm, offering excellent signal integrity and mechanical stability. RO3206 PCB dimensions are specified as 76.88mm x 72.64mm with a tight tolerance of ±0.15mm, supporting a minimum trace/space of 9/10 mil and a minimum hole size of 0.35mm with a 20 μm via plating thickness.

The design utilizes through-hole vias exclusively, and the board features an Immersion Silver surface finish on both outer layers for superior solderability and protection, complemented by a white top silkscreen. Manufactured to IPC-Class-2 standards, each board undergoes 100% electrical testing to guarantee functionality and reliability, and the supplied artwork is in the industry-standard Gerber RS-274-X format. Rogers RO3206 High Frequency PCB is available for worldwide shipment.

PCB Parameters

Frequent Asked Questions (FAQ’s)

Do We Deliver Worldwide?

All PCBs purchasable through Bicheng Ltd can be dispatched worldwide to any non embargoed countries. We’ll choose the suitable shipping carriers for you among DHL, FedEx, TNT, UPS, EMS and Aramex

Is the High frequency Materials In Stock?

We keep most of the high frequency material in stock with prototype quantity,such as Rogers material with 3000 series, 4000 series, 5000 series, 6000 series etc, Taconic material with RF series, TLX series, TLY series etc, Wangling material F4B with DK2.2, DK2.65 etc. Since the high frequency material has so much variety, you can consult our sales persons before ordering.

Can I Collect My Order?

It’s completely no problem to pick up ordering of boards or collection of PCBs from our premises through your account in DHL, UPS or FedEx etc.. We’ll help to prepare the necessary export documents or files for customs declare.

How Much Will It Cost For Delivery?

We have various carriers to choose. Usually, we’ll pick one with best shipping fee for you. If your order is urgent, we can help to choose the forwarder with fast timeliness.

Am I Able To Return My PCBs?

PCBs are irreversible custom-made products, it is not allowed to return the items if there’s no quality problems.

When Will My Order Arrive?

All the PCBs are dispatched the same day if they are finished fabrication before 5pm. For Asian clients, you can get it within 2-3 days, European clients in 6-7 days and American (North and South) in 6-7 days, however the carriers do not guarantee this because of the complexity of transportation.

Will I Need To Sign For My Package?

We dispatch all orders using DHL, UPS, FedEx, TNT, Aramex or EMS, so they are fully tracked and may require a signature.

How Can I Track My Order?

Once your PCB boards are dispatched, you will receive a shipping confirmation via email by our sales that includes a tracking number. You can track this number on their official websites.

What Should I Do If My Parcel Is Damaged Or Lost?

This situation is rare in our daily business. The PCB boards are packed with bubble materials inside and with KK grade carton outside to protect your PCBs. However, If your parcel is lost or damaged, you must contact us immediately so that we can contact the carrier and arrange for replacement production. Please keep any damaged items including damaged packaging for reference.
