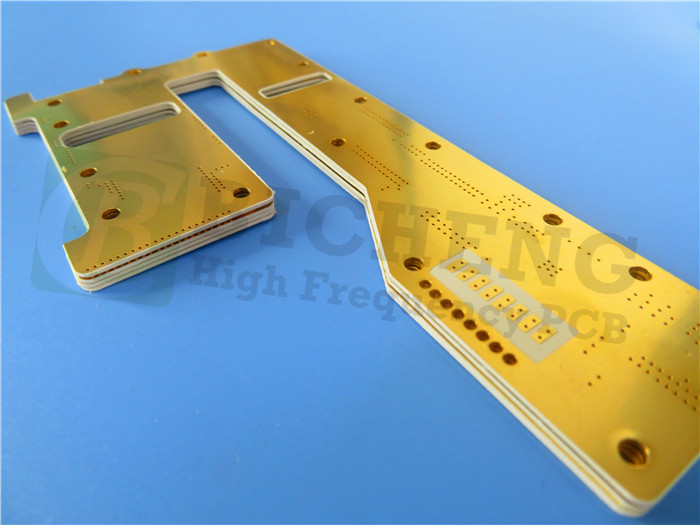

Rogers DiClad 527 PCB with 20mil Double-Sided Copper Construction and ENIG Surface Treatment for RF Microwave Applications
Rogers DiClad 527 PCB with 20mil Double-Sided Copper Construction and ENIG Surface Treatment for RF Microwave Applications
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
Brief Introduction
This Rogers DiClad 527 PCB is engineered as a 2-layer rigid board featuring a robust stackup of 1oz (35μm) copper on both top and bottom layers, integrated with a 20mil DiClad 527 core material. Designed for high-frequency applications, this DiClad 527 circuit board delivers exceptional electrical performance and mechanical stability.
Key Specifications
DiClad 527 PCB measures 150mm x 32mm with a tight tolerance of ±0.15mm, ensuring dimensional precision. With a 7/7 mil trace/space capability, this DiClad 527 high-frequency board supports detailed circuitry layouts while maintaining a finished thickness of 0.6mm. The 20μm via plating thickness in this DiClad 527 PCB design enhances durability and complies with IPC-Class-II standards.
Surface Finish & Marking
Featuring an ENIG (Electroless Nickel Immersion Gold) surface treatment, this DiClad 527 laminate offers superior solderability and corrosion resistance. The board omits solder mask on both sides but includes black silkscreen printing on the top layer for component identification, making this DiClad 527 implementation both practical and reliable.
Quality Assurance
Each DiClad 527 circuit board undergoes 100% electrical testing prior to shipment, guaranteeing full functionality and adherence to design specifications. This rigorous validation process ensures that every DiClad 527 high-frequency PCB meets the highest standards of performance and reliability for demanding applications.
.jpg)
PCB Specifications
| PCB SIZE | 150 x 32mm=1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
| DiClad 527 0.508mm | |
| copper ------- 17um(0.5oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7 mils / 7mils |
| Minimum / Maximum Holes: | 0.4mm / 2.0mm |
| Number of Different Holes: | 8 |
| Number of Drill Holes: | 73 |
| Number of Milled Slots: | N/A |
| Number of Internal Cutouts: | N/A |
| Impedance Control: | N/A |
| Number of Gold finger: | N/A |
| BOARD MATERIAL | |
| PTFE/woven glass | DiClad 527 |
| Final foil external: | 1.0 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.6 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold, 67% |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | Top |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | N/A |
| VIA | NO |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059"" |
| Board plating: | 0.0029"" |
| Drill tolerance: | 0.002"" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Our PCB Capability (2025)
| Factory Process Capability (2025) | |
| Substrate Types | Standard FR-4, High Tg FR-4, High Frequency Materials, Rigid Polyimide, Flexible Polyimide, Transparent PET Materials, AL2O3 Ceramic, AlN Ceramic etc. |
| Substrate Brands | Shengyi, ITEQ, KB, Isola, Taiwan Union, Rogers Corp. Taconic, Wangling, Panasonic etc |
| Board Types | Rigid PCB, Flexible Circuits, Rigid-Flex PCB, Hybrid PCB, HDI PCB, Heavy Copper, High Speed, High frequency etc. |
| Copper Clad Laminates(CCL) | High Tg FR-4: S1000-2M, TU-872 SLK, TU-768, TU-883, IT-180A, FR408HR, 370HR, High CTI FR-4: S1600L, ST115 High speed: M6 (R5775G Core / R-5670 Prepreg) |
| Rogers Corp: RO4350B, RO4003C, RO4725JXR, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4830, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/duroid 6006, RT/Duroid 6010.2LM, RT/duroid 6035HTC; RT/duroid 5880LZ, RT/duroid 6202; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; IsoClad 917, IsoClad 933; CLTE-XT, CLTE-AT, CLTE-MW; CuClad 217, CuClad 233, CuClad 250. | |
| Taconic: TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2,RF-30, RF-35, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; CER-10; TSM-DS3 | |
| Wangling: F4BM217, F4BM220, F4BM233, F4BM245, F4BM255, F4BM265, F4BM275, F4BM294, F4BM300; F4BME217, F4BME220, F4BME233, F4BME245, F4BME255, F4BME265, F4BME275, F4BME294, F4BME300; F4BTM298, F4BTM300, F4BTM320, F4BTM350; F4BTME298, F4BTME300, F4BTME320, F4BTME350; TP300, TP440, TP600, TP615, TP960, TP1020, TP1100, TP1600, TP2000, TP2200, TP2500; TF300, TF440, TF600, TF960, TF1020, TF1600; F4BTMS220, F4BTMS233, F4BTMS255, F4BTMS265, F4BTMS294, F4BTMS300, F4BTMS350, F4BTMS430, F4BTMS450, F4BTMS615, F4BTMS1000; TFA294, TFA300, TFA615, TFA1020; WL-CT300, WL-CT330, WL-CT330Z, WL-CT338, WL-CT350, WL-CT440, WL-CT615. |
|
| Maximum Delivery Size | 1200mm x 572 mm |
| Minimum Finished Board Thickness | L≤2L: 0.15mm; 4L: 0.4mm |
| Maximum Finished Board Thickness | 10.0 mm |
| Blind Buried Holes (Non-crossing) | 0.1mm |
| Maximum Hole Aspect Ratio | 15:01 |
| Minimum Mechanical Drill Hole Diameter | 0.1 mm |
| Through-hole Tolerance | +/- 0.0762 mm |
| Press-fit Hole Tolerance | +/- 0.05mm |
| Non-plated Copper Hole Tolerance | +/- 0.05mm |
| Maximum Number of Layers | 32 |
| Internal and External Layer Maximum Copper Thickness | 12Oz |
| Minimum Drill Hole Tolerance | +/- 2mil |
| Minimum Layer-to-Layer Tolerance | +/- 3mil |
| Minimum Line Width/Spacing | 3mil/3mil |
| Minimum BGA Diameter | 8mil |
| Impedance Tolerance | < 50Ω ±5Ω; ≥50Ω±10% |
| Special Technology | High density interconnection (HDI), Hybrid design/ mixed PCB, Blind/Buried vias, Resin filled / copper filled and capped, Copper coin embedded, Staircase PCB, Edge plated PCB, Heavy copper PCB, Half holes/castled Edge holes, Thick PCB etc |
| Surface Treatment Processes | Leaded/Lead-free HASL, Immersion Gold, Immersion Silver, Immersion Tin, OSP, ENIG, ENEPIG, Pure gold, Carbon Ink, Peelable Mask, Gold Finger, etc. |
