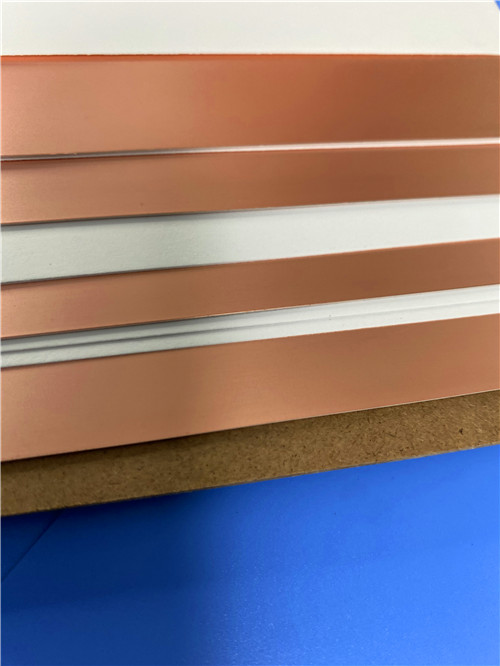

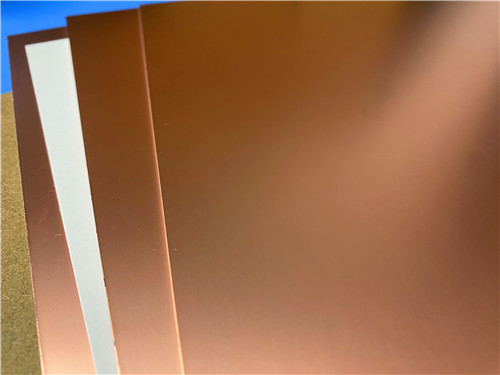

Taconic TLX-6 PCB Substrates Introduction TLX-6 laminate, a high-performance PCB material from Taconic TLX series. It is engineered using a composite of PTFE and specialized fiberglass fabric, delivering outstanding durability, heat resistance, and reliable performance in demanding conditions. With a tightly controlled process dielectric constant (Dk) of 2.65 at 10 GHz/23°C, Taconic TLX-6 PCB material ensures exceptional signal integrity and minimal loss for high-frequency RF and microwave applications. Taconic TLX-6 high frequency laminate operates reliably across a broad temperature range of -40℃ to +85℃, making it a versatile and robust solution for aerospace, telecommunications, and advanced industrial electronics. Type DK TLY-5A 2.17 TLY-5 2.20 TLY-3 2.33 TLT-0 TLX-0 2.45 TLT-9 TLX-9 2.50 TLT-8 TLX-8 2.55 TLT-7 TLX-7 2.60 TLT-6 TLX-6 2.65 TLE-95 2.95 TLC-27 2.75 TLC-30 RF-30 3.00 TLC-32 3.20 TLF-35 3.50 TLF-35-xxxx-A 3.50 RF-35 RF-35A2 3.50 TRF-41 4.10 TRF-43 4.30 TRF-45 4.50 RF-60A 6.15 CER-10 10 Key Features of Taconic TLX-6 High-Frequency Performance Taconic TLX-6 laminate is engineered as a high-frequency PTFE substrate with a controlled dielectric constant of 2.65, delivering reliable signal integrity and low loss for demanding RF and microwave PCB applications. Taconic TLX-6 material meets the rigorous requirements of telecommunications, aerospace, defense, and high-speed computing systems, where electrical stability and thermal performance are essential for next-generation designs. Electrical Advantages TLX-6 laminate provides exceptional electrical characteristics, including a low dissipation factor and stable dielectric properties, which ensure precise impedance control and minimal signal distortion across wide frequency ranges. Its high thermal conductivity supports effective heat management in power-intensive applications, maintaining signal integrity while reducing insertion loss for optimized system performance. Thermal and Mechanical Reliability Designed for operation in harsh conditions, Taconic TLX-6 PCB substrate maintains stable performance across a temperature range of –40 °C to +85 °C. Its low coefficient of thermal expansion (CTE) ensures dimensional consistency under thermal stress, reducing the risk of warping and mechanical failure. These properties make Taconic TLX-6 laminate a dependable choice for applications exposed to thermal cycling, vibration, and demanding environmental factors. A Piece of LX-6 Laminate This is a Taconic TLX-6 Laminate. Key Applications Taconic TLX-6 high frequency circuit material supports a wide range of high-frequency and high-reliability applications, including: Telecommunications Infrastructure: 5G base stations, RF antennas, and wireless backhaul equipment Aerospace & Defense Systems: Radar, avionics, satellite communications, and electronic warfare platforms High-Speed Computing: Data center interconnects, high-performance servers, and signal processing hardware Test & Measurement: Precision RF test fixtures, signal analyzers, and calibration instruments Automotive & Industrial: ADAS sensors, V2X communication modules, and industrial RF systems RF Components: Mixers, splitters, filters, combiners, and other passive microwave components Summary Taconic TLX-6 is a high-performance PTFE fiberglass laminate engineered to deliver reliable signal integrity and environmental resilience in demanding RF and microwave applications. With its stable dielectric properties, wide operating temperature range, and robust mechanical construction, Taconic TLX-6 laminate provides a dependable PCB material solution for telecommunications, aerospace, and industrial electronics where consistent performance under challenging conditions is essential.
