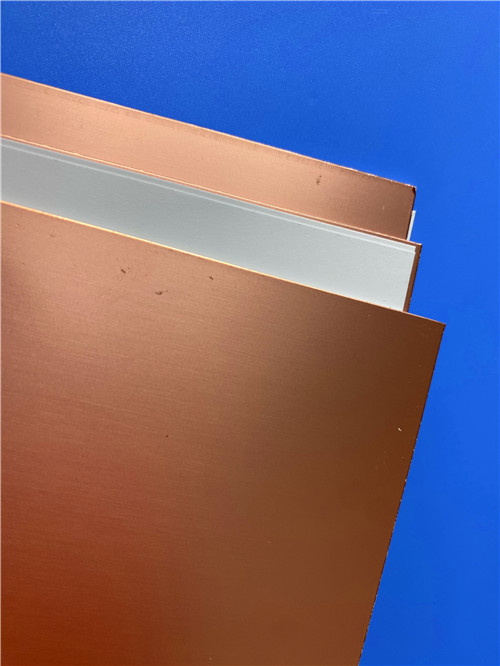

Taconic TLX-0 High Frequency Laminates Introduction As the flagship material in the TLX series, TLX-0 high-frequency laminate is a PTFE fiberglass composite specifically engineered for RF/microwave applications. Renowned as a "workhorse" in this field, TLX-0 laminate boasts exceptional versatility and environmental resilience—key attributes that make TLX-0 laminate indispensable for RF/microwave applications. Its core advantage lies in precise dielectric constant (Dk) control, with a stable Dk value of 2.45 ± 0.04, which ensures reliable signal predictability critical for low-layer-count microwave designs. Meanwhile, the PTFE fiberglass composite structure of Taconic TLX-0 skillfully balances mechanical reinforcement and low-loss electrical performance, eliminating the need for complex multi-layer structures in most RF/microwave applications. Key Features Taconic TLX-0 PCB raw material provides the features needed to overcome essential RF/microwave challenges, from maintaining signal stability to ensuring long-term environmental durability. Feature Specification Dielectric Constant (Dk) 2.45 ± 0.04 at 10GHz Dissipation Factor (DF) 0.0021 at 10GHz Moisture Absorption 0.02% Coefficient of Thermal Expansion (CTE) X-axis: 21 ppm/°C; Y-axis: 23 ppm/°C; Z-axis: 215 ppm/°C Peel Strength 12 lbs/in (ensures strong copper-to-substrate bonding) Flammability Rating UL 94 V0 Benefits of TLX-0 Laminate Taconic TLX-0 high frequency circuit material delivers essential performance advantages for RF/microwave PCBs operating in extreme environments. These benefits directly solve critical design and reliability challenges: Exceptional Signal Integrity: With a low dissipation factor (0.0021 @ 10GHz) and tightly controlled dielectric constant (2.45 ± 0.04), TLX-0 Laminate minimizes signal loss and ensures stable impedance—critical for precision components like RF couplers, power splitters, and microwave amplifiers. Superior Passive Intermodulation (PIM) Performance: Rated below -160 dBc, TLX-0 Laminate eliminates PIM distortion in high-power RF systems, making TLX-0 PCB ideal for cellular base stations, radar systems, and 5G infrastructure. Outstanding Environmental Resilience: Fiberglass reinforcement provides vibration resistance and anti-creep stability for aerospace and automotive applications. Very low moisture absorption (0.02%) ensures reliable performance in humid and marine environments. Meets NASA low-outgassing standards for space-grade PCB materials. Robust Mechanical Durability: High peel strength (12 lbs/in) ensures strong copper bond integrity under thermal cycling, vibration, and mechanical stress. Certified Safety & Compliance: UL 94 V0 flammability rating meets global safety requirements for electronics in high-risk or enclosed environments. A Piece of LX-0 Laminate The image below shows a LX-0 laminate. . Key Applications Taconic TLX-0 high frequency material is engineered for demanding RF systems where performance, durability, and signal integrity are non-negotiable: RF & Microwave Components: Ideal for low-loss couplers, power dividers, combiners, amplifiers, antennas, and other passive microwave devices. Radar Systems: Suitable for ground-based radar, airborne radar, and marine radar systems due to its vibration resistance and wide-temperature performance. Telecommunications Infrastructure: Optimized for 4G/5G base stations, mobile network antennas, and backhaul equipment requiring low PIM and stable signal transmission. Test & Measurement Equipment: Provides the precise signal integrity and repeatability needed for microwave test fixtures and measurement instruments. Harsh Environment Electronics: Space & Satellite PCBs (radiation-resistant, low-outgassing) Military & Naval Antennas (salt spray and humidity resistant) High-Temperature Engine-Module Electronics (stable under thermal extremes) Conclusion Taconic TLX-0 PCB laminate offers exceptional adaptability to extreme environments. It can readily address issues such as PCB creep on vibrating housings during space launches, high-temperature conditions within engine modules, space radiation (complying with NASA's low-outgassing material standards), harsh marine environments for warship antennas, and the wide temperature range requirements for altimeter substrates during flight. Taconic LX-0 high-frequency laminate integrates advanced material technology, precise manufacturing processes, and excellent performance, making it a trusted choice for RF/microwave applications across various industries. It provides core material support for the stable operation of related RF/microwave applications.
