2. Core Product Features

Stable High -DK Dielectric Performance: TF960 features DK 9.6 ± 0.19 at 10 GHz, enabling precise impedance matching for compact high-frequency RF and millimeter-wave circuit designs.



Ultra-Low Signal Loss: Dissipation factor Df 0.0012 at 10 GHz minimizes insertion loss and preserves signal integrity across broadband microwave operation.



Excellent Dimensional Stability: Controlled X/Y CTE of 50 ppm/°C and Z-axis CTE of 65 ppm/°C reduces thermal-induced deformation during assembly and long-term service.



 Low Moisture Absorption & Safety Rating: Maximum moisture absorption ≤0.05 % improves environmental reliability; UL 94-V0 flammability rating satisfies industrial and aerospace safety requirements.



FR4-Compatible Fabrication: Supports standard drilling, plating and lamination processes and withstands 260 °C lead-free reflow, lowering production difficulty compared with conventional PTFE-based boards.



Aerospace-grade Survivability: Radiation-resistant and low-outgassing properties make this PCB suitable for space-borne payload and high-reliability defense electronic hardware.

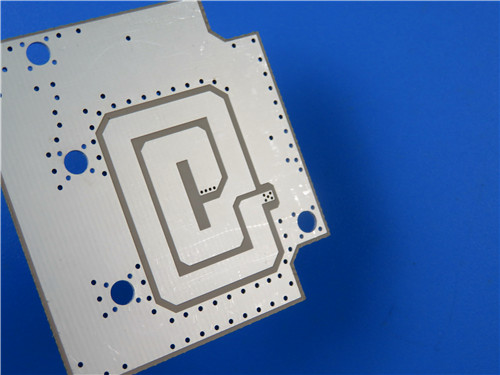

PCB Construction Details

Parameter Item	Technical Specification
Base Material	TF960 PTFE-Ceramic Composite Laminate
Layer Count	2-Layers
Board Dimensions	102 mm × 86 mm (1 Piece), tolerance ±0.15 mm
Minimum Trace/Space	5/8 mils
Minimum Hole Size	0.25 mm
Blind Vias	No Blind Vias Design
Finished Board Thickness	0.635 mm Rigid Board
Outer Layer Finished Copper Weight	1 oz (1.4 mils)
Via Plating Thickness	20 μm
Surface Finish	Immersion Silver
Top Silkscreen	White Silkscreen
Bottom Silkscreen	No Silkscreen
Top Solder Mask	Blue Solder Mask
Bottom Solder Mask	No Solder Mask
Pre-Shipment Test	100 % Electrical Testing



PCB Stackup Structure

This 2‑Layer rigid high‑frequency PCB adopts TF960 ceramic‑filled PTFE core with symmetrical copper configuration for stable microwave performance:



Copper_layer_1: 35 μm

TF960 Core Substrate: 0.635 mm (25 mil)

Copper_layer_2: 35 μm



5. PCB Statistical Parameters

Total Components: 49

Total Pads: 57

Thru Hole Pads: 32

Top SMT Pads: 25

Bottom SMT Pads: 0

Total Vias: 43

Total Nets: 2



6. Production & Quality Standards

Artwork Supply Format: Gerber RS-274-X

Accepted Standard: IPC-Class-2

Supply Scope: Worldwide Supply & Service



7. TF-Series PTFE-Ceramic Composite Substrate Knowledge

7.1 TF-Series Product Overview

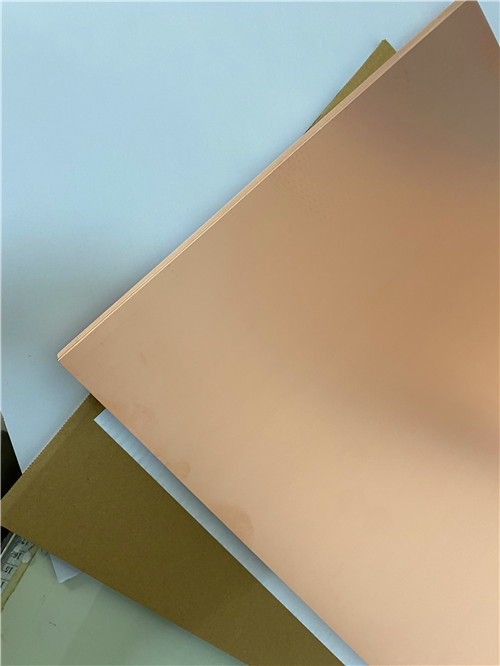

TF series substrates are composite dielectrics formulated with high-performance modified PTFE resin and micron-scale ceramic fillers, without woven glass-fabric reinforcement. Dielectric constant can be precisely tuned by adjusting ceramic-to-PTFE ratio to satisfy diverse microwave impedance targets. Available variants include unclad TF, single-sided copper-clad TF-1, double-sided copper-clad TF-2, and TF960-a dedicated high-DK grade optimized for repeatable dielectric behaviour and manufacturability for advanced RF and millimeter-wave circuits.

TF- series offers DK options from 3.0 up to 16.0, including standard values 3.0, 6.0, 9.2, 9.6, 10.2, 16.0. The material maintains reliable long-term performance from −80 °C to +200 °C and provides thickness selections ranging from 0.635 mm to 2.5 mm. Benefiting from radiation resistance and low-outgassing characteristics, TF-series laminates are widely adopted within aerospace and space-grade electronic hardware.



7.2 Material Advantages

Broad customizable dielectric-constant portfolio for microwave and millimeter-wave PCB projects Low dissipation factor ensures minimal high-frequency signal attenuation Wide operating-temperature window and outstanding thermal stability Radiation-resistant and low-outgassing for aerospace and satellite payload applications Compatible with standard thermoplastic PCB processing workflows to control manufacturing cost

8. Typical Application Scenarios

TF960 2-Layer high-frequency PCB fits a wide range of high-performance electronic systems: microwave/RF transceivers, 5G/6G Massive MIMO antennas, automotive ADAS radar, aerospace radar systems, satellite communication payloads, high-power RF amplifiers and test-and-measurement instruments such as vector network analyzers. It is also well-suited for phased-array antenna feed networks and high-reliability defense electronics hardware.

9.DataSheet

Property	TEST CONDITIONS	UNITS	TYPICAL VALUES (TF960)
Dielectric Constant	10 GHz	-	9.6±0.19
Dielectric Constant Tolerance	-	-	±2%
Dissipation Factor	10 GHz	-	0.0012
Thermal Coefficient of Dielectric Constant	-55℃ ~ 150℃	ppm/℃	-260
Copper Peel Strength	1 OZ, Normal Condition	N/mm	>0.6
Copper Peel Strength	1 OZ, After Alternating Humid Heat	N/mm	>0.4
Volume Resistivity	Normal Condition, 500V	MΩ·cm	>1×10⁹
Surface Resistivity	Normal Condition, 500V	MΩ	>1×10⁷
Coefficient of Thermal Expansion (X/Y/Z)	-55℃ ~ 150℃	ppm/℃	50, 50, 65
Moisture Absorption	20±2℃, 24 hours	%	≤0.05
Long-Term Operating Temperature	Temperature Chamber	℃	-80～200℃
Material Composition	-	-	PTFE, Ceramic, matched with ED copper foil



10. Product Summary

TF960 2-Layer rigid high-frequency PCB is a double-sided microwave circuit board based on 0.635 mm TF960 PTFE-ceramic composite core. With DK 9.6 ± 0.19 and ultra-low Df 0.0012 at 10 GHz, this immersion-silver finished PCB with blue top solder mask and white silkscreen supports 5/8 mils fine-line fabrication. Built to IPC-Class-2 and fully electrically tested before delivery, it combines FR4-compatible processability, low-moisture absorption, UL 94-V0 safety and aerospace-qualified low-outgassing performance, serving as a robust solution for 5G-6G Massive MIMO, automotive radar, satellite payloads and high-power RF amplifier hardware.
