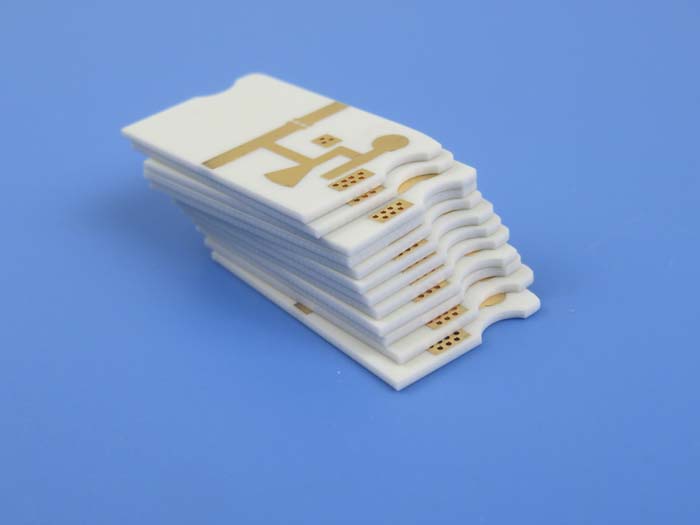

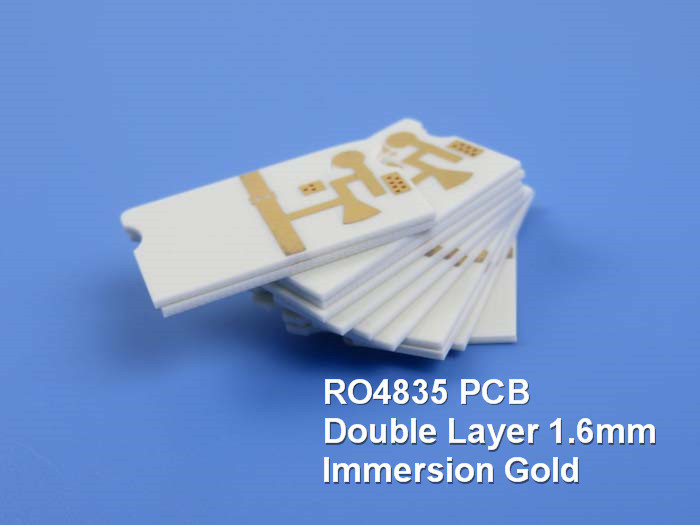

Double Layer Rogers RO4835 PCB 60mil 1.524mm Rogers Microwave PCB With Immersion Gold for 5G and Radar Applications

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.

General Description

This Rogers high-frequency PCB, crafted from RO4835 laminates, features a double-layer structure with a top signal layer and a bottom shielding layer, ensuring excellent signal integrity and interference suppression. Built on a 60mil substrate with 0.5oz starting copper, RO4835 PCB is finished with immersion gold plating, eliminating the need for solder mask or silkscreen to maintain high signal quality. Engineered to IPC Class II standards, each board undergoes 100% electrical testing before shipping, making RO4835 PCB a reliable choice for applications like 5G, radar, and aerospace where precise impedance control and low signal loss are crucial.

RO4003C 图2

PCB Specifications

Scrollable PCB Table

Click to expand/collapse the table



PCB SIZE	12 x 26mm=1up
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 17um(0.5 oz)+plate TOP layer
	RO4835 1.524mm
	copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:	110 mil / 110 mil
Minimum / Maximum Holes:	1.0 mm / 1.0 mm
Number of Different Holes:	1
Number of Drill Holes:	10
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	RO4835 1.524mm
Final foil external:	1.0 oz
Final foil internal:	N/A
Final height of PCB:	1.6 mm ±0.1
PLATING AND COATING
Surface Finish	Immersion Gold, 86.2%
Solder Mask Apply To:	N/A
Solder Mask Color:	N/A
Solder Mask Type:	N/A
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	N/A
Colour of Component Legend	N/A
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 1.0mm.
FLAMIBILITY RATING	94V-0
DIMENSION TOLERANCE
Outline dimension:	0.0059""
Board plating:	0.0029""
Drill tolerance:	0.002""
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
