IT-180A and FR-4 4-Layer 1.6mm PCB for Automotive Engine Room ECU and Telecommunications
IT-180A and FR-4 4-Layer 1.6mm PCB for Automotive Engine Room ECU and Telecommunications

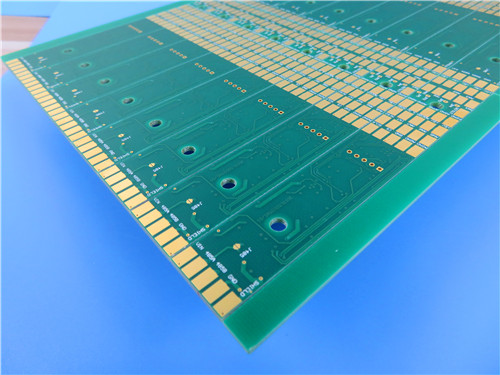

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
General Description
This 4-layer rigid PCB is made of FR-4 (IT-180) base material, complying with IPC-Class-2 quality standards. This IT-180A and FR-4 PCB has a finished thickness of 1.6mm and board dimensions of 130mm x 175mm (6 pieces per panel, ±0.15mm tolerance). Key features include 1oz (1.4 mils) finished copper weight for outer layers, 20μm via plating thickness, and immersion gold surface finish. Both top and bottom layers have white silkscreen and green solder mask, with countersink holes on the top side. This 4-Layer 1.6mm PCB supports blind vias (L1-L2), has a minimum trace/space of 4/6 mils and minimum hole size of 0.2mm. 100% electrical testing is conducted before shipment, artwork is supplied in Gerber RS-274-X format, and it is available worldwide.
PCB Construction Details
Construction Item |
Specification |
Base Material |
FR-4 (IT-180) |
Layer Count |
4 layers (rigid) |
Board Dimensions |
130mm x 175mm = 6PCS, ±0.15mm |
Minimum Trace/Space |
4/6 mils |
Minimum Hole Size |
0.2mm |
Vias Type |
Blind vias (L1-L2) |
Finished Board Thickness |
1.6mm |
Finished Cu Weight (Outer Layers) |
1oz (1.4 mils) |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion Gold |
Top Silkscreen |
White |
Bottom Silkscreen |
White |
Top Solder Mask |
Green |
Bottom Solder Mask |
Green |
Electrical Test Before Shipment |
100% |
Additional Hole Feature |
Countersink holes on Top side |
Additional Components & Features
The IT-180A and FR-4 PCB supports 59 components, with 137 total pads (86 thru-hole pads, 51 top SMT pads, 12 bottom SMT pads), 73 vias, and 4 nets. Its stack-up is: Copper_layer_1 (0.035mm) → Prepreg 7628H X 1 (0.21mm) → Copper_layer_2 (0.035mm) → IT-180ATC Core (1.03mm/40.5mil) → Copper_layer_3 (0.035mm) → Prepreg 7628H X 1 (0.21mm) → Copper_layer_4 (0.035mm).
Material Advantages (IT-180A)
IT-180ATC PCB is a high Tg (175℃ by DSC) filled epoxy with high thermal reliability and CAF resistance, suitable for 260℃ lead-free assembly. It has a CTE of 11-13 ppm/°C (X-axis) and 13-15 ppm/°C (Y-axis), T260 delamination time of 60 minutes, T288 of 20 minutes, DK of 4.4 (1GHz)/4.5 (1MHz), Df of 0.014 (1MHz)/0.015 (1GHz), 0.1% moisture resistance, and UL94-V0 flammability rating, with good through-hole reliability.
Typical Applications
It is ideal for Automotive Engine room ECU, backplanes, data storage, server and networking, and telecommunications.
Why Choose This PCB?
This 4-layer PCB combines IT-180 FR-4’s thermal and mechanical stability with precise construction (blind vias, immersion gold finish) and 100% electrical testing. Compliance with IPC-Class-2 and worldwide availability make it a reliable choice for diverse high-demand electronic projects.
Order Now for Automotive Engine Room ECU & Telecommunications!
This IT-180 FR-4 4-layer PCB meets the performance needs of automotive engine room ECUs and telecommunications equipment—order now to support your high-quality electronic project requirements.
