Rogers DiClad 880 High Frequency PCB 2-Layer 20mil 0.508mm Immersion Gold PCB for Digital Radio Antennas

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.



Introduction

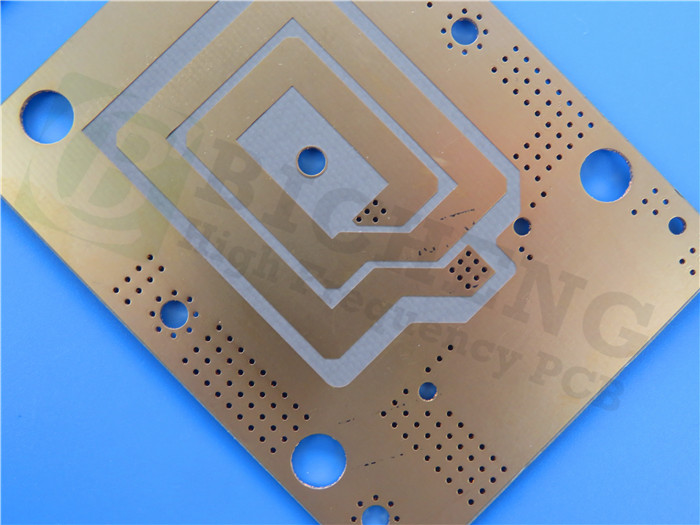

This Rogers high - frequency PCB is constructed from DiClad 880 laminates. It features a double - layer design, with the signal layer situated on the top surface and the shielding layer on the bottom. DiClad 880 PCB board is coated with an immersion gold finish, and it lacks both a solder mask and silkscreen.



Manufactured using 20mil substrates and starting with 0.5oz copper, Rogers DiClad 880 PCB adheres to the IPC Class II standard. This ensures a high level of quality and reliability. Prior to shipping, every single board undergoes a comprehensive 100% electrical test, guaranteeing that it meets the required performance specifications upon arrival.
