1.524mm Double Layer Rogers AD255C PCB Antenna Circuit Board for critical wireless applications with Immersion Gold
1.524mm Double Layer Rogers AD255C PCB Antenna Circuit Board for critical wireless applications with Immersion Gold
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
Introduction

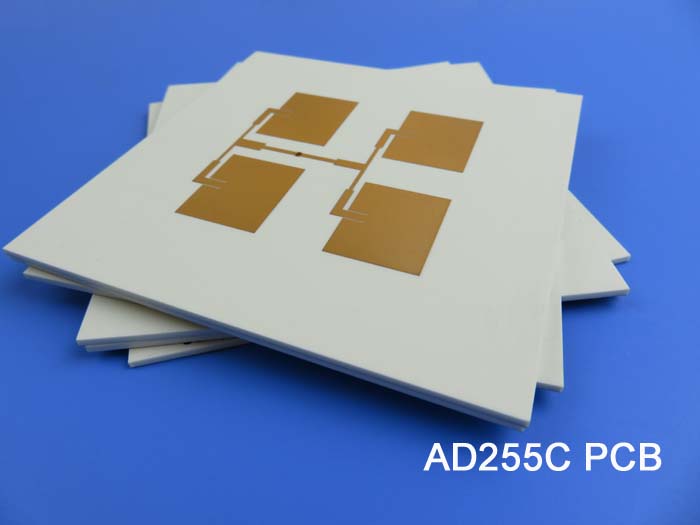

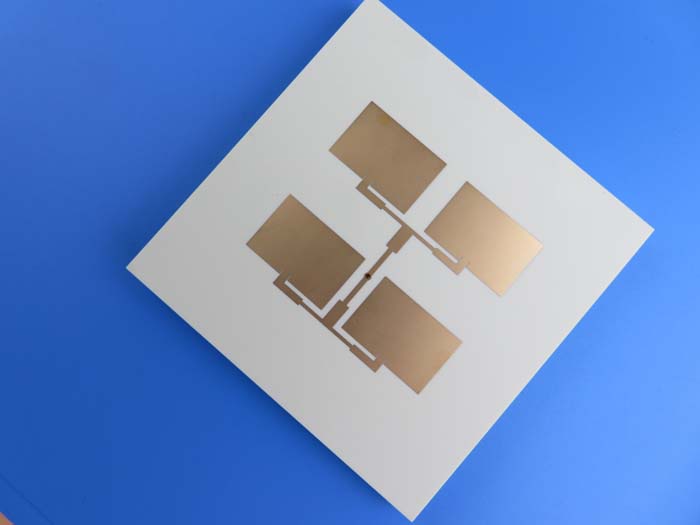

Rogers AD255C PCBs serve as the base material for this specialized antenna PCB, which features a double-layer design with top-layer antenna pads and a bottom-layer shielding copper plane.Fabricated on a 60mil substrate with 1oz electrodeposited copper on both sides, the entire board is immersion gold-plated (no solder mask or silkscreen) to ensure optimal conductivity and corrosion resistance. Manufactured to IPC Class II standards and rigorously 100% electrically tested prior to shipment, Rogers AD255C high frequency PCB delivers reliable performance for critical wireless applications, including 5G, IoT, and aerospace systems.
.jpg)
PCB Specifications
| PCB SIZE | 98 x 100mm=1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
| AD255C 1.524mm | |
| copper ------- 17um(0.5 oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 118 mil / 118 mil |
| Minimum / Maximum Holes: | 1.5 mm / 1.5 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 1 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | AD255C 1.524mm |
| Final foil external: | 1.0 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 1.6 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold, 90.8% |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 1.5mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059"" |
| Board plating: | 0.0029"" |
| Drill tolerance: | 0.002"" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Our Advantages
- More than 19+ years of high frequency PCB experience;
- Eligible products rate of first production: >99%
- ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;
- 16000㎡ workshop; 30000㎡ output capability per month;
- Experienced sales persons provide skilled customer services;
- No minimum order quantity and low cost sample;
- Prototype PCB capability and Volume Production capability;
- Customer complaint rate: <1%
- IPC Class 2 / IPC Class 3;
- Based in China serving the whole world.
Our PCB Capabilities(2022)
| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Material | RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc. |
| Maximum Size | Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm |
| Board Outline Tolerance | ±0.0059"" (0.15mm) |
| PCB Thickness | 0.0157"" - 0.3937"" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t＜0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295"" - 0.1969"" (0.075mm--5.00mm) |
| Minimum Track | 0.003"" (0.075mm) |
| Minimum Space | 0.003"" (0.075mm) |
| Outer Copper Thickness | 35µm--350µm (1oz-10oz) |
| Inner Copper Thickness | 17µm--350µm (0.5oz - 10oz) |
| Drill Hole(Mechanical) | 0.0079"" - 0.25"" (0.2mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039""-0.248"" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295"" (0.075mm) |
| Registration (Mechanical) | 0.00197"" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315"" (0.08mm) |
| Min Soldermask Clearance | 0.00197"" (0.05mm) |
| Plug via Diameter | 0.0098"" - 0.0236"" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc. |
