Rogers RO4003C 4-Layer 0.85mm RF PCB for Automotive Radar and Cellular Antennas
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
Product Overview

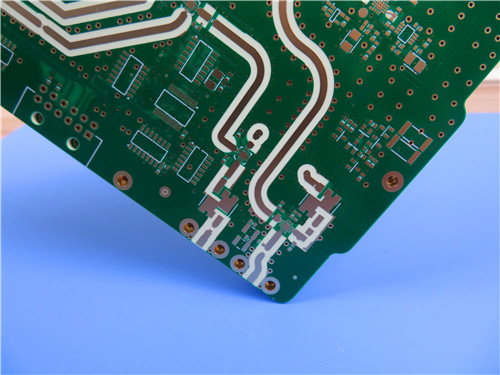

This product is a 4-layer high-frequency PCB constructed with Rogers RO4003C laminate and RO4450F bondply. Designed for radio frequency applications, it features a slim 0.85mm profile, immersion silver surface finish, and controlled impedance structure. Rogers RO4003C PCB incorporates blind vias between layers 2-3 and 3-4, supporting compact component placement while maintaining signal integrity in high-frequency environments.
PCB Construction Specifications
The following table details the complete technical specifications for this circuit board:
Parameter |
Specification |
Base Material |
Rogers RO4003C |
Layer Count |
4 layers |
Board Dimensions |
95.89mm × 55.87mm (±0.15mm) |
Finished Thickness |
0.85mm |
Minimum Trace/Space |
4/5 mils |
Minimum Hole Size |
0.3mm |
Blind/Buried Vias |
Layer 2-3, Layer 3-4 |
Copper Weight |
1oz (35μm) all layers |
Via Plating Thickness |
20μm |
Surface Finish |
Immersion Silver |
Solder Mask |
Green (Top), None (Bottom) |
Silkscreen |
White (Top), None (Bottom) |
Electrical Test |
100% tested |
Technical Configuration
4-Layer 0.85mmRogers RO4003C PCB supports 24 components with 55 total pads (43 thru-hole, 12 top SMT), interconnected through 23 vias across 5 nets. The stackup consists of Rogers 4003C cores (0.203mm and 0.406mm) with RO4450F bondply (0.101mm) for reliable multilayer bonding. Artwork files were supplied in Gerber RS-274-X format, and manufacturing complies with IPC-Class-2 quality standards.
Material Advantages
RO4003C PCB provides stable dielectric constant (3.38±0.05) and low dissipation factor (0.0027) at 10GHz, with thermal conductivity of 0.71 W/m/°K and Tg >280°C. The material processes like FR-4 but offers superior high-frequency performance. RO4450F bondply enables reliable multilayer construction with high thermal stability for sequential lamination cycles.
Typical Applications
• Cellular base station antennas and power amplifiers
• Automotive radar and sensor systems
• RF identification tags
• LNBs for direct broadcast satellites
Why Choose This PCB?
This design combines Rogers high-frequency materials with optimized layer stackup and immersion silver finish, providing reliable performance for cost-sensitive RF applications requiring consistent electrical characteristics.
Order Now for RF and Automotive Applications!
4-layer RO4003C PCB is available for prototyping and production quantities. Contact us to discuss how this board can meet your specific automotive radar or cellular antenna requirements.
