0.5mm-1.6mm TU-883 PCB Very Low Loss and High Thermal Reliability PCB with ENIG ENEPIG Pure gold
0.5mm-1.6mm TU-883 PCB Very Low Loss and High Thermal Reliability PCB with ENIG ENEPIG Pure gold
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
Brief Introduction
ThunderClad 2 (TU-883 PCB) is a ultra-low-loss material formulated with a high-performance resin system. Reinforced with standard woven E-glass, TU-883 material features an engineered resin composition that delivers an extremely low dielectric constant (Dk) and dissipation factor (Df)—key properties that make it ideal for high-speed, low-loss, radio frequency (RF), and wireless circuit applications.
ThunderClad 2 is fully compatible with environmentally friendly lead-free manufacturing processes, while also aligning with standard FR-4 production workflows to ensure ease of integration. TU-883 laminates offer a suite of enhanced performance attributes, including excellent moisture resistance, optimized coefficient of thermal expansion (CTE), superior chemical resistance, reliable thermal stability, and strong resistance to conductive anodic filament (CAF) formation.

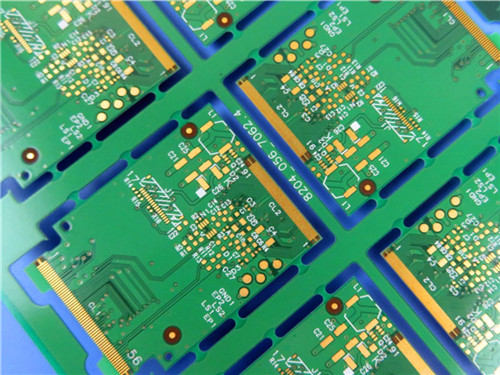

.jpg)
Features &Benefits
Excellent electrical properties
Dielectric constant less than 4.0
Dissipation factor less than 0.005
Stable and flat Dk/Df performance over frequency and temperature
Compatible with modified FR-4 processes
Excellent moisture resistance and Lead Free reflow process compatible
Improved z-axis thermal expansion
Anti-CAF capability
Excellent through-hole and soldering reliability
Halogen Free
Typical Properties of TU-883
| Typical Values | Test Condition | SPEC | |
| Thermal | |||
| Tg (DMA) | 220 °C | ||
| Tg (TMA) | 170 °C | E-2/105+des | N/A |
| Td (TGA) | 420 °C | ||
| CTE z-axis α1 | 35 ppm/°C | Pre-Tg | < 60 ppm/°C |
| CTE z-axis α2 | 240 ppm/°C | Post-Tg | < 300 ppm/°C |
| CTE z-axis | 2.50% | 50 to 260°C | < 3.0% |
| Thermal Stress, Solder Float, 288°C | > 60 sec | A | > 10 sec |
| T-260 | > 60 min | > 30 min | |
| T-288 | > 60 min | E-2/105+des | > 15 min |
| T-300 | > 60 min | ||
| Flammability | 94V-0 | E-24/125+des | 94V-0 |
| Electrical | |||
| Permittivity (RC63%) | |||
| 1GHz (SPC method) | 3.60 | ||
| 5GHz (SPC method) | 3.58 | C-24/23/50 | N/A |
| 10GHz (SPC method) | 3.57 | ||
| Loss Tangent (RC63%) | |||
| 1GHz (SPC method) | 0.0030 | ||
| 5GHz (SPC method) | 0.0037 | C-24/23/50 | N/A |
| 10GHz (SPC method) | 0.0046 | ||
| Volume Resistivity | > 1010 MΩ•cm | C-96/35/90 | > 106 MΩ•cm |
| Surface Resistivity | > 108 MΩ | C-96/35/90 | > 104 MΩ |
| Electric Strength | > 40 KV/mm | - | > 30 KV/mm |
| Dielectric Breakdown Voltage | > 50 KV | - | > 40 KV |
| Mechanical | |||
| Young’s Modulus | |||
| Warp Direction | 28 GPa | A | N/A |
| Fill Direction | 26 GPa | ||
| Flexural Strength | |||
| Lengthwise | > 60,000 psi | A | > 60,000 psi |
| Crosswise | > 50,000 psi | A | > 50,000 psi |
| Peel Strength, 1.0 oz. Cu foil | 4~6 lb/in | A | > 4 lb/in |
| Water Absorption | 0.08% | E-1/105+des+D-24/23 | < 0.8 % |
Our PCB Capability (TU-883) |
|
PCB Material: |
High Temperature Resin |
Designation: |
TU-883 |
Dielectric constant: |
3.60 at 1GHz |
Layer count: |
Double Layer, Multilayer, Hybrid PCB |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm) |
PCB thickness: |
0.5mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Matt Black, Blue, Matt Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, OSP, Immersion tin, Immersion Silver, ENEPIG, Pure gold etc.. |
Technology: |
HDI, Via in pad, Impedance Control, Blind via/Buried via, Edge Plating, BGA, Countsunk Holes etc. |
