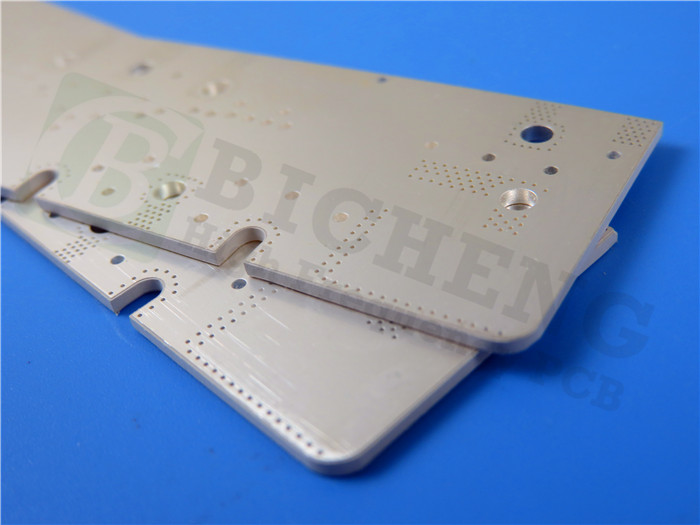

Rogers DiClad 880 PCB 20mil 30mil 60mil Low Loss PCB with Immersion Gold, Tin and Silver

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.

Introduction

Rogers DiClad 880 PCBs are constructed from woven fiberglass-reinforced PTFE-based composites that exclude ceramic fillers. By reducing the number of woven fiberglass plies and increasing the proportion of PTFE,  DiClad 880 PCBs achieve lower dielectric constant and dissipation factor values. In fact, their DK (dielectric constant) and DF (dissipation factor) metrics are comparable to those of RT/duroid 5880.

The dielectric constant of Rogers DiClad 880 circuit boards can be finely tuned through meticulous control of the mixing ratio between woven fiberglass and PTFE. An increased amount of fiberglass leads to a higher dielectric constant, while simultaneously enhancing dimensional stability. To ensure uniform performance in the XY plane, the woven fiberglass layers within the boards are aligned in the same direction. Thanks to the reinforcement provided by woven fiberglass, Rogers DiClad 880 laminate demonstrates superior dimensional stability in the XY direction compared to RT/duroid 5880 and RT/duroid 5870. However, this comes at the cost of a higher coefficient of thermal expansion in the Z-axis direction.

Features:

1. Extremely Low Loss Tangent at 0.0009
2. Excellent Dimensional Stability
3. Product Performance Uniformity

Benefits:

1. Electrical Properties are Highly Uniform Across Frequency
2. Consistent Mechanical Performance
3. Excellent Chemical Resistance

Typical Applications:

1. Commercial Phased Array Networks
2. Digital Radio Antennas
3. Filters, Couplers, LNAs
4. Low Loss Base Station Antennas
5. Radar Feed Networks
6. Missile Guidance Systems

Our PCB Capability (DiClad 880 PCB)

Our Advantages

1. Engineering design prevents problems from occurring in pre-production;
2. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;
3. AOI inspection;
4. Powerful PCB capabilities support your research and development, sales and marketing;
5. Delivery on time higher than 98% on-time-delivery rate;
6. Any Layer HDI PCBs;
7. 16000㎡ workshop; 30000㎡ output capability per month; 8000 types of PCB's per month;
8. Quick CADCAM checking and free PCB quotation;
9. Diversified shipping method: FedEx, DHL, TNT, EMS;
10. No MOQ, low cost for prototypes and small runs quantity;

Appendix: Typical Properties of DiClad 880
