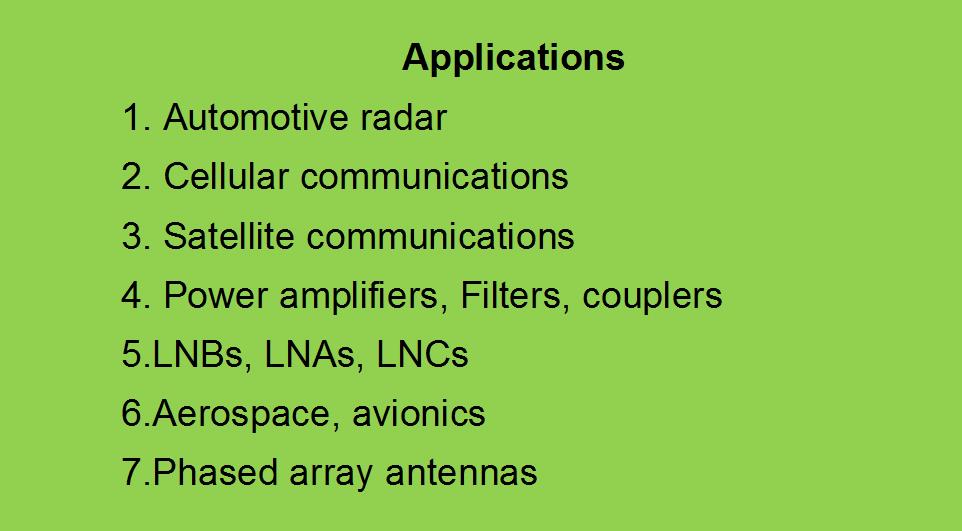

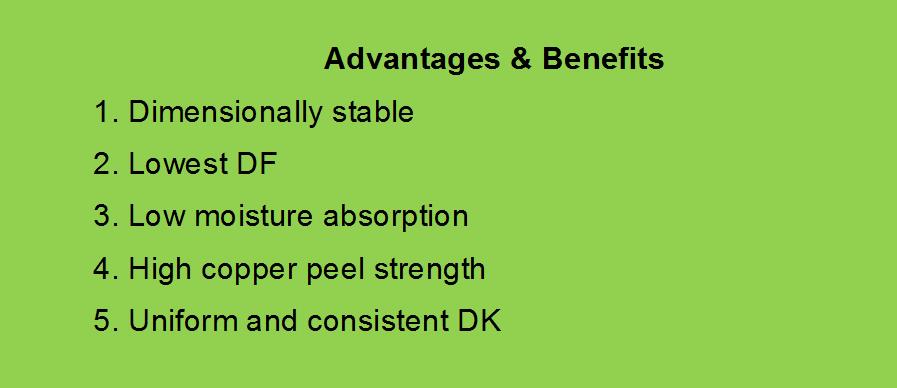

Taconic TLY-5 High Frequency PCB Material Introduction TLY laminates are manufactured with very lightweight woven fiberglass, which are from Taconic Company. They are more dimensionally stable than chopped fiber reinforced PTFE composites. Since they are more mechanically stable, it is suitable for high volume manufacturing. The low dissipation factor enables successful deployment for automotive radar applications designed at 77 GHz as well as other antennas in millimeter wave frequencies. We benefit from its following advantages: 1. Dimensionally stable: High volume fabrication becomes possible. 2. Lowest DF In the low dielectric constant range, the dissipation factor is approximately 0.0009 at 10 GHz. 3. Low moisture absorption It can work in severe environment. 4. High copper peel strength It’s high up to 2.32, dimensionally stable. 5. Uniform and consistent DK For most thicknesses, the dielectric constant can be specified anywhere within this range with a tolerance of +/-0.02 Typical applications include: Automotive radar Cellular communications Satellite communications Power amplifiers, Filters, couplers LNBs, LNAs, LNCs Aerospace, avionics Phased array antennas PCB Capability PCB Material: Lightweight Woven Fiberglass TLY Family (Dielectric constant ±0.02) TLY-5A (DK=2.17) Layer count: 1 Layer, 2 Layer, 4 Layer. Copper weight: 0.5oz, 1oz, 2oz PCB thickness: 0.2mm, 0.3mm, 0.6mm, 0.8mm, 1.6mm PCB Size: ≤400mm X 500mm There’re 6 members in TLY family. We have stock for TLY-5. Others are purchased according to clients’ requirement. Bicheng specializes in providing you with prototype, small batches and mass production service. If you have any questions, please feel free to contact us. Thank you for your reading.
TLY-5A-L (DK=2.17)
TLY-5 (DK=2.20)
TLY-5-L (DK=2.20)
TLY-3 (DK=2.33)
TLY-3FF (DK=2.33)
