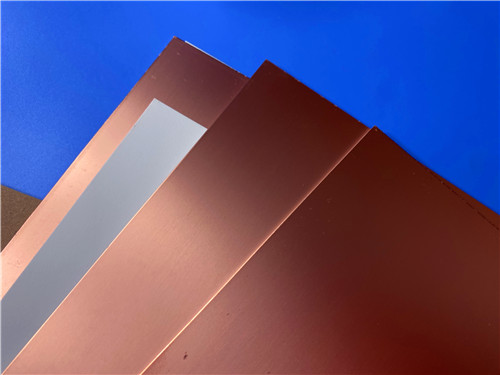

Taconic RF-30A PCB Substrates Introduction Taconic RF-30A is a organic-ceramic filled laminate in Taconic’s family of RF substrates. It is based on woven glass reinforcement. RF-30A laminate is a result of Taconic’s expertise in both ceramic filler and PTFE coating technology. Taconic RF-30A PCB material is the best choice for low cost, high volume commercial microwave and radio frequency applications. Core Benefits Improved PIMD Performance Taconic RF-30A high frequency laminate delivers exceptional Passive Intermodulation Distortion (PIMD) levels, a critical advantage for multi-frequency communication systems. When processed with state-of-the-art parameters and paired with CL1/CL1 cladding, it exceeds industry PIM requirements, achieving -153 dBc across key frequency bands (880–960 MHz, 1710–1880 MHz, 1920–2170 MHz) at 20 W power. Its stable PIM performance remains consistent even in microstrip transmission line applications, with minimal impact from external factors—whether with or without plated through-hole (PTH) structures. Enhanced PTH Quality & Multilayer Fabrication Ease Optimized with ceramic additives, RF-30A laminate features a low Z-axis coefficient of thermal expansion (CTE). This design significantly improves PTH reliability and streamlines the fabrication of multilayer circuits, reducing production complexities and boosting yield rates for high-volume manufacturing. Stable Mechanical Properties The substrate boasts low CTE values, superior dimensional stability, and high rigidity, ensuring RF components made with RF-30A are less susceptible to external environmental factors. This stability translates to consistent performance across the product lifecycle, even under fluctuating operating conditions. Stable Performance at High Frequencies As a low-loss dielectric substrate paired with low-profile copper foil, RF-30A maintains stable electrical properties across broadband frequency ranges. It minimizes insertion loss while supporting reliable signal transmission, making it ideal for high-frequency microwave and RF use cases. High Temperature Stability & Low Moisture Absorption RF-30A laminate exhibits excellent high temperature resistance, adapting to harsh operating environments. Its ultra-low moisture absorption rate, combined with a stable loss tangent, minimizes phase shift caused by temperature or humidity variations, ensuring signal integrity in diverse application scenarios. Excellent Peel Strength With outstanding peel strength for ½-ounce and 1-ounce reverse-treated (RT) copper foil, RF-30A is well-suited for applications requiring rework or repeated reflow processes. This feature enhances manufacturing flexibility and reduces the risk of substrate damage during production adjustments. Outstanding Price-to-Performance Ratio Balancing high-end performance with cost efficiency, RF-30A stands out as a cost-effective solution for high-volume commercial applications, delivering premium substrate capabilities without excessive price premiums. Taconic RF-30A Properties Properties Conditions Typical Value Unit Test Method Electrical Properties Dielectric Constant @ 1.9 GHz 2.97 ± 0.05 IPC-TM 650 2.5.5.5.1 mod Dissipation Factor @ 1.9 GHz 0.0013 IPC-TM 650 2.5.5.5.1 mod @ 10 GHz 0.0020 IPC-TM 650 2.5.5.5.1 mod Volume Resistivity 3.0 × 10³ Mohm-cm IPC-650 2.5.17.1 Surface Resistivity 2.0 × 10⁴ Mohms IPC-650 2.5.17.1 Thermal Properties Thermal Conductivity 0.42 W/m·K IPC-650 2.4.50 CTE (50-150°C) X 8 ppm/°C IPC-650 2.4.41 Y 11 ppm/°C Z 60 ppm/°C Mechanical Properties Specific Heat 0.95 J/g·K IPC-650 2.4.50 Density Specific Gravity 2.16 g/cm³ IPC-TM-650 2.3.5 Flexural Strength MD 126.5 (18,000) N/mm² (psi) IPC-650 2.4.18.3 CD 119.5 (17,000) N/mm² (psi) IPC-650 2.4.19 Tensile Strength MD 133.6 (19,000) N/mm² (psi) IPC-TM-650 2.4.18.3 CD 105.5 (15,000) N/mm² (psi) IPC-650 2.4.19 Dimensional Stability MD 0.049 % (30 mil) IPC-650 2.4.39 (After Etch) CD 0.025 % (60 mil) CD 0.041 % (30 mil) CD 0.026 % (60 mil) MD 0.049 % (30 mil) CD 0.019 % (60 mil) IPC-650 2.4.39 (After Stress) Chemical/Physical Properties Flammability Rating A Piece of RF-30A Laminate The image below shows a Taconic RF-30A RF laminate. Key Applications Antennas and their subcomponents RF passive components Power amplifiers (PA) Conclusion In summary, Taconic RF-30A laminate integrates Taconic’s core technological advantages in ceramic filling and PTFE coating, offering a balanced combination of superior performance, manufacturing adaptability, and cost efficiency. Taconic RF-30A PCB material ’s exceptional PIMD stability, reliable PTH quality, and robust environmental resilience address the critical demands of high-volume microwave and RF applications—especially in antenna systems, RF passive components, and power amplifiers. For businesses seeking a high-value substrate solution that maintains consistent performance while supporting scalable, cost-effective production, Taconic RF-30A emerges as a trusted and optimal choice.
