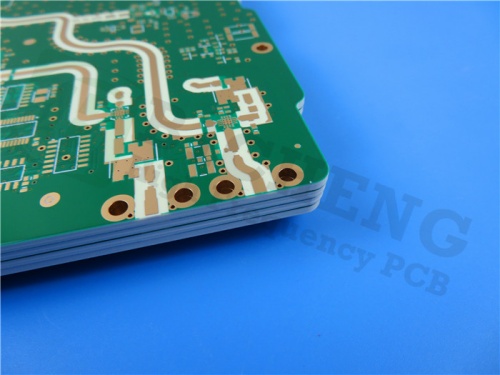

Rogers RO3210 Microwave PCB 2-Layer 0.635mm Circuit Board With Immersion Gold for Automotive Collision Avoidance Systems
Rogers RO3210 Microwave PCB 2-Layer 0.635mm Circuit Board With Immersion Gold for Automotive Collision Avoidance Systems
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
Brief Introduction
Rogers RO3210 High-Frequency PCB Materials represent a class of ceramic-filled, woven fiberglass reinforced laminates engineered to deliver exceptional electrical performance and mechanical stability. RO3210 PCB materials combine the superior surface smoothness characteristic of non-woven PTFE laminates with enhanced processing capabilities. A key advantage of Rogers RO3210 laminates lies in their compatibility with standard PTFE circuit board fabrication techniques, enabling cost-effective mass production and competitive market pricing. The material exhibits a stable dielectric constant of 10.2 with an ultra-low dissipation factor of 0.0027, making Rogers RO3210 PCB an ideal solution for high-frequency applications requiring consistent electrical properties and reliable performance.
.jpg)
Typical applications:
1. Automotive collision avoidance systems
2. Automotive global positions satellite antennas
3. Base station infrastructure
4. Datalink on cable systems
5. Direct broadcast satellites
6. LMDS and wireless broadband
7. Microstrip patch antennas
8. Power backplanes
9. Remote meter readers
10. Wireless telecommunications systems
PCB Specifications

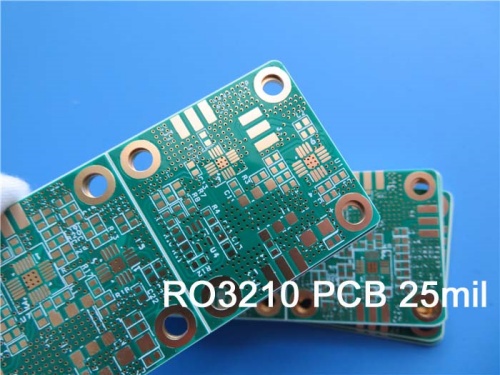

| Rogers RO3210 25mil 0.635mm High Frequency PCB for Automotive Collision Avoidance Systems | |
| PCB SIZE | 35 x 77 mm=2 designs = 2PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5 oz)+plate TOP layer |
| RO3210 0.635mm | |
| copper ------- 18um(0.5 oz)+plate BOT layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6 mil / 6 mil |
| Minimum / Maximum Holes: | 0.3 mm / 5.6 mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 182 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO3210 0.635mm |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 0.8 mm ±0.08 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (23.3% ) 0.05µm over 3µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, v-cut |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo brand |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), minimum size 0.3mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059"" |
| Board plating: | 0.0029"" |
| Drill tolerance: | 0.002"" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
