Low Profile R04350B High Frequency PCB Material





Introduction



RO4350B LoPro laminates use a proprietary Rogers' technology that allows reverse treated foil to bond to standard RO4350B dielectric. This results in a laminate with low conductor loss for improved insertion loss and signal integrity while maintaining all other desirable attributes of the standard RO4350B laminate system.



Features and Benefits:

R04350B PCB materials are reinforced hydrocarbon/ceramic laminates with very low profile reverse treated foil.

1. Lower insertion loss

2. Low PIM

3. Increased signal integrity

4. High circuit density



Low Z-axis coefficient of thermal expansion

1. Multi-layer board capability

2. Design flexibility



Lead-free process compatible

1. High temperature processing

2. Meets environmental concerns



CAF resistant



Some Typical Applications:



Digital applications such as servers, routers, and high speed back planes

Cellular base station antennas and power amplifiers

LNB’s for direct broadcast satellites

RF Identification Tags

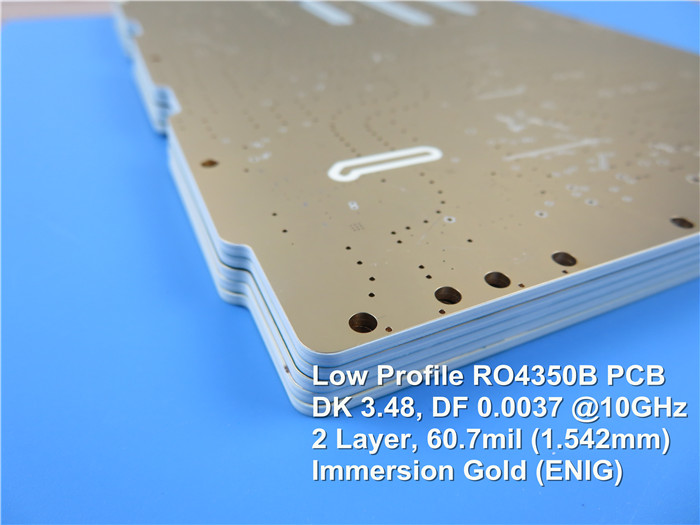

 Our PCB Capability (RO4350B LoPro)

PCB Material:

Hydrocarbon Ceramic Laminates

Designation:

RO4350B LoPro

Dielectric constant:

3.48±0.05

Layer count:

Double Layer, Multilayer, Hybrid PCB

Copper weight:

0.5oz (17 μm), 1oz (35μm), 2oz (70μm)

Laminate thickness:

10.7mil (0.272mm), 14mil (0.356mm), 17.3mil (0.439mm), 20.7mil(0.526mm), 30.7mil (0.780mm), 60.7mil(1.542mm)

PCB size:

≤400mm X 500mm

Solder mask:

Green, Black, Blue, Yellow, Red etc.

Surface finish:

Bare copper, HASL, ENIG, OSP, Immersion tin etc..



Typical Properties of RO4350B LoPro

Property

Typical Value

Direction

Units

Condition

Test Method

Dielectric Constant, Process

3.48 ± 0.05

Z

--

10 GHz/23°C

IPC-TM-650 2.5.5.5 Clamped Stripline

Dielectric Constant, Design

3.55

Z

--

8 to 40 GHz

Differential Phase Length Method

Dissipation Factor tan, d

0.0037??? 0.0031

Z

--

10 GHz/23°C 2.5 GHz/23°C

IPC-TM-650 2.5.5.5

Thermal Coeffifi cient of er

50

Z

ppm/°C

-50°C to 150°C

IPC-TM-650 2.5.5.5

Volume Resistivity

1.2 X 1010



MΩ?cm

COND A

IPC-TM-650 2.5.17.1

Surface Resistivity

5.7 X 109



COND A

IPC-TM-650 2.5.17.1

Electrical Strength

31.2(780)

Z

KV/mm(V/mil)

0.51mm(0.020”)

IPC-TM-650 2.5.6.2

Tensile Modulus

11473(1664)

Y

MPa(kpsi)

RT

ASTM D638

Tensile Strength

175(25.4)

Y

MPa(kpsi)

RT

ASTM D638

Flexural Strength

255(37)



MPa(kpsi)



IPC-TM-650 2.4.4

Dimensional Stability

<0.5

X,Y

mm/m(mils/inch)

after etch +E2/150°C

IPC-TM-650 2.4.39A

Coeffifi cient of Thermal Expansion

14

X

ppm/°C

-55 to 288°C

IPC-TM-650 2.1.41

16

Y

35

Z

Tg

>280



°C TMA

A

IPC-TM-650 2.4.24.3

Td

390



°C TGA



ASTM D3850

Thermal Conductivity

0.62



W/m/°K

80°C

ASTM C518

Moisture Absorption

0.06



%

48 hrs immersion 0.060” sample Temperature 50°C

ASTM D570

Density

1.86



gm/cm3

23°C

ASTM D792

Copper Peel Strength

0.88(5.0)



N/mm(pli)

after solder float 1 oz. TC Foil

IPC-TM-650 2.4.8

Flammability

V-0







UL 94

Lead-Free Process Compatible

Yes
