Rogers RO4350B Hybrid PCB 4-Layer 1.6mm RF Circuit Board for Millimeter Wave and Radar Systems
Rogers RO4350B Hybrid PCB 4-Layer 1.6mm RF Circuit Board for Millimeter Wave and Radar Systems
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.
Product Overview

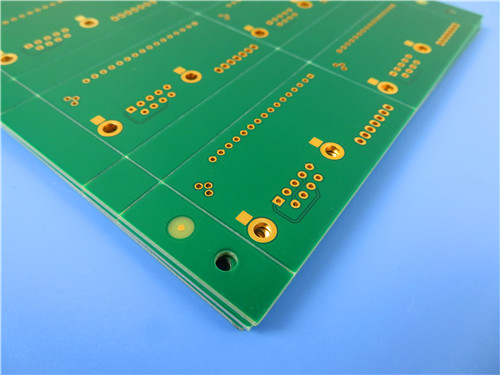

This 4-layer hybrid printed circuit board combines Rogers RO4350B high-frequency PCB material with S1000-2M FR-4 substrate, designed for demanding RF applications. Featuring a standard 1.6mm thickness and ENIG surface finish, the board incorporates blind vias and impedance-controlled traces to support high-frequency signal integrity. The mixed-material construction provides cost-effective RF performance while maintaining reliable mechanical properties.
PCB Construction Specifications
Parameter |
Specification |
Base Material |
RO4350B & S1000-2M (Hybrid) |
Layer Count |
4 layers |
Board Dimensions |
105mm × 95mm (8-up panel) |
Board Thickness |
1.6mm |
Minimum Trace/Space |
5/4 mils |
Minimum Hole Size |
0.35mm |
Blind Vias |
Top-L2, L3-Bottom |
Copper Weight |
1oz (35μm) all layers |
Via Plating |
20μm (0.35mm vias filled/capped) |
Surface Finish |
ENIG |
Solder Mask |
Green (Top), None (Bottom) |
Silkscreen |
White (Top), None (Bottom) |
Special Features |
Impedance control, Edge plating |
Quality Standard |
IPC-Class-2 |
Technical Configuration
The board supports 33 components with 242 total pads (125 thru-hole, 117 top SMT), interconnected through 49 vias across 3 nets. The stackup features RO4350B (0.254mm) for critical RF layers and S1000-2M (1.1mm) core for structural support, with 50-ohm impedance control on 5/9 mil traces. Artwork files are supplied in Gerber RS-274-X format.
Material Advantages
RO4350B laminate provides stable dielectric constant (3.48±0.05) and low dissipation factor (0.0037) at 10GHz, with high Tg >280°C and excellent dimensional stability. S1000-2M FR-4 offers enhanced mechanical processability, Tg 180°C, and superior anti-CAF performance. The hybrid construction balances RF performance with cost efficiency.
Typical Applications
• Millimeter wave applications and radar systems
• Point-to-point digital radio antennas
• Commercial airline broadband antennas
• Guidance systems and stripline circuits
Why Choose This PCB?
This hybrid design effectively combines the high-frequency performance of RO4350B with the mechanical reliability and cost advantages of FR-4, providing an optimized solution for mixed-signal RF applications requiring controlled impedance and thermal stability.
Order Now for RF and Millimeter Wave Applications!
This 4-layer hybrid PCB is available in panelized format for efficient production. Contact us to discuss your specific millimeter wave or radar system requirements and leverage this cost-effective RF solution for your next project.
