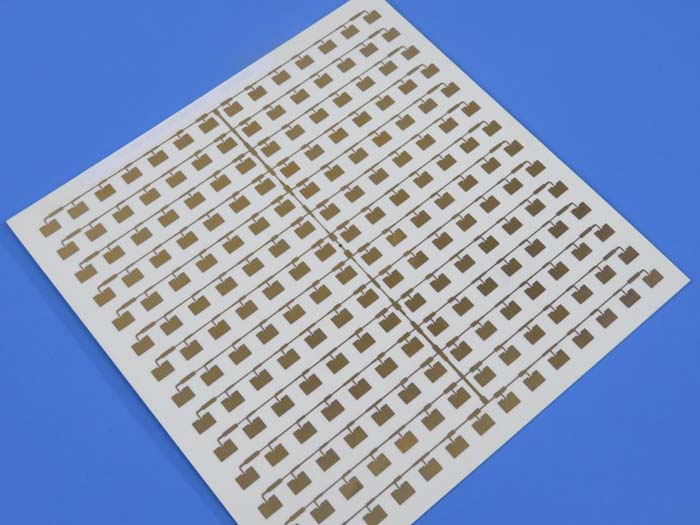

Rogers AD255C High Frequency Antenna PCB 20mil 30mil 40mil 60mil With Immersion Gold and Immersion Silver

Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.



Introduction

Rogers AD255C PCBs are high-performance, glass-reinforced PTFE composites meticulously designed to meet the rigorous demands of modern wireless antenna systems. AD255C PCB materials offer a tightly controlled dielectric constant of 2.55, ultra-low loss performance (dissipation factor of 0.0013 at 10 GHz with ED or reverse-treated copper), and exceptional passive intermodulation (PIM) stability, ensuring minimal signal distortion in high-power applications. Available in thicknesses ranging from 20 to 125 mils, AD255C substrates empower antenna designers to optimize impedance matching, reduce insertion loss, and enhance overall system efficiency across 5G, IoT, and aerospace applications.





Our PCB Capability (AD255C PCB)

PCB Capability (AD255C)
PCB Material:	Glass-reinforced, PTFE based Composites
Designation:	AD255C

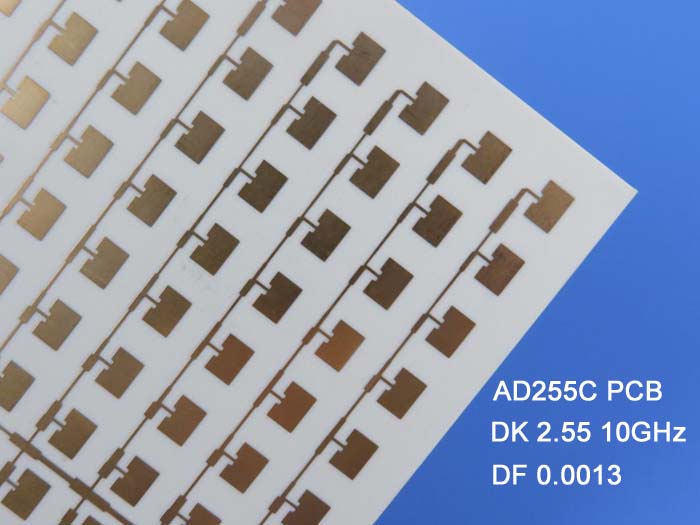

Dielectric constant:	2.55  (10 GHz)
Dissipation Factor	0.0013 (10 GHz)
Layer count:	Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight:	1oz (35µm), 2oz (70µm)
Dielectric thickness:	20mil (0.508mm), 30mil (0.762mm), 40mil (1.016mm), 60mil (1.524mm), 125mil (3.175mm)
PCB size:	≤400mm X 500mm
Solder mask:	Green, Black, Blue, Yellow, Red etc.
Surface finish:	Immersion gold, HASL, Immersion silver, Immersion tin, OSP, ENEPIG, Bare copper, Pure gold etc..



Typical Applications

Automotive telematics antenna systems

Cellular infrastructure base station antenna

Commercial satellite radio antenna
