Isola 370HR 6-Layer 1.6mm HDI PCB for High Density Industrial Electronics
Printed Circuit Boards are custom-made products; the images and specifications provided are for reference only.

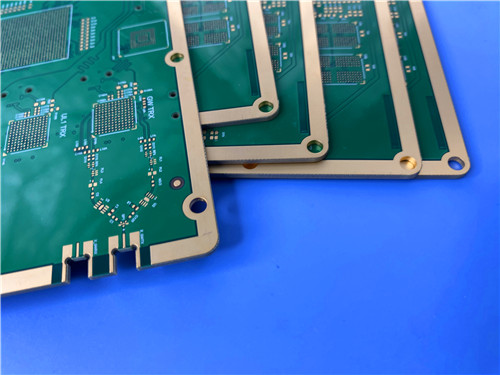

Overview of this Isola 370HR HDI PCB
This product is a high-reliability 6-layer HDI (High-Density Interconnect) printed circuit board engineered for demanding industrial and electronic applications. Built on the robust 370HR substrate, tIsola 370HR PCB is designed to ensure superior thermal performance and long-term reliability in complex operating environments. It features a controlled impedance design, ENIG (Electroless Nickel Immersion Gold) surface finish for excellent solderability, and a comprehensive 100% electrical test prior to shipment, guaranteeing functionality and quality. The board's 1.6mm thickness and 4/4 mil trace/space capability make it an ideal solution for compact, high-performance devices.
PCB Construction Details & Specifications
Specification Category |
Details |
Base Material |
Isola 370HR |
Layer Count |
6 Layers |
Board Dimensions |
40mm x 55mm (+/- 0.15mm) |
Finished Thickness |
1.6mm (62.0 mil) |
Copper Weight (Inner/Outer) |
1 oz (1.4 mils) |
Min. Trace/Space |
4/4 mils |
Min. Hole Size |
0.2mm |
Via Plating Thickness |
20 μm |
Blind & Buried Vias |
Top to Inner 1, Inner 2 to Inner 3 |
Surface Finish |
ENIG |
Solder Mask (Top/Bottom) |
Green |
Silkscreen (Top/Bottom) |
White |
Impedance Control |
50 ohms on top layer (10mil traces) |
Electrical Test |
100% tested |
This PCB supports a moderate component density with 31 total components and 46 pads, accommodating 29 thru-hole and 17 top-side SMT pads. The design incorporates 24 vias to facilitate interconnection across its 5 nets. The board is supplied with Gerber RS-274-X artwork data and is manufactured in compliance with the stringent IPC-Class-2 acceptance standard, ensuring consistent and reliable production quality for a worldwide market.
Material Advantages of Isola 370HR
The core of this PCB's reliability is the Isola 370HR material, a high-performance Tg 180°C FR-4 epoxy system. It offers exceptional thermal resilience, with a Td of 340°C and a T288 delamination time of 30 minutes. Its low Z-axis CTE (45ppm/°C) enhances reliability during thermal cycling. Electrically, it provides a stable Dk of 4.04 at 2GHz and a Df of 0.021 at 2GHz. Key attributes include superior resistance to Conductive Anodic Filament (CAF), a UL94-V0 flammability rating, and low moisture absorption (0.15%), making it a proven choice for multilayer applications requiring maximum durability.
Typical Applications
This 6-layer PCB is suited for a wide range of industries, including:
Computing, Storage & Peripherals
Consumer Electronics
Networking & Communications Equipment
Medical, Industrial, and Instrumentation Devices
Automotive and Transportation Systems
Aerospace and Defense Applications
Why Choose This PCB?
This board combines a proven HDI construction with the advanced material properties of Isola 370HR, delivering a solution that meets the needs of high thermal stress and signal integrity requirements. Its detailed impedance control and full electrical validation provide the performance and reliability necessary for critical applications across multiple industries.
Order Now for Industrial & Instrumentation Solutions!
This 6-layer Isola 370HR PCB is ready to serve as the robust foundation for your next-generation electronic devices. Contact us today to discuss your project requirements and secure a reliable supply of high-quality PCBs.
