1. Introduction of RF-35
RF-35 is an organic-ceramic laminate in the ORCER family of Taconic products. It is based on woven glass reinforcement. RF-35 is a result of Taconic's expertise in both ceramic fill technology and in coated PTFE fiberglass.

RF-35 is the best choice for low cost, high volume commercial microwave and radio frequency applications. And excellent peel strength for 1/2 ounce and 1 ounce copper (even in comparison to standard epoxy materials), a critical aspect whenever rework is required. And ultra low moisture absorption rate and low dissipation factor minimize phase shift with frequency.

2. Features (RF-35)

- Dielectric Constant at 1.9GHz: 3.5

- Dissipation Factor at 1.9GHz: 0.0018

- Dielectric Breakdown, 41 kV

- X CTE at 19 ppm/°C, Y CT at 24 ppm/°C, Z CTE at 64 ppm/°C

- Flammability: UL-94 V0

- Low Cost

- Excellent Peel Strength

- Exceptionally Low Dissipation Factor

- Low Moisture Absorption

- Enhanced Surface Smoothness

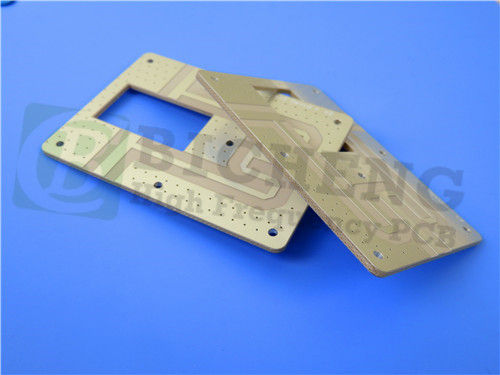

4.  PCB Stackup:  2-layer rigid PCB

Copper_layer_1 - 35 μm

RF-35 Core - 30mil (0.762 mm)

Copper_layer_2 - 35 μm

6.  PCB Statistics:

    Components:        8

    Total Pads:         22

    Thru Hole Pads:     12

    Top SMT Pads:      10

    Bottom SMT Pads:    0

    Vias:              9

    Nets:              2

7. Type of artwork supplied: Gerber RS-274-X

8. Quality standard: IPC-Class-2
