RT/duroid 6010.2LM High Frequency PCB
|
|
|
|
|
|
Introduction |
|
|

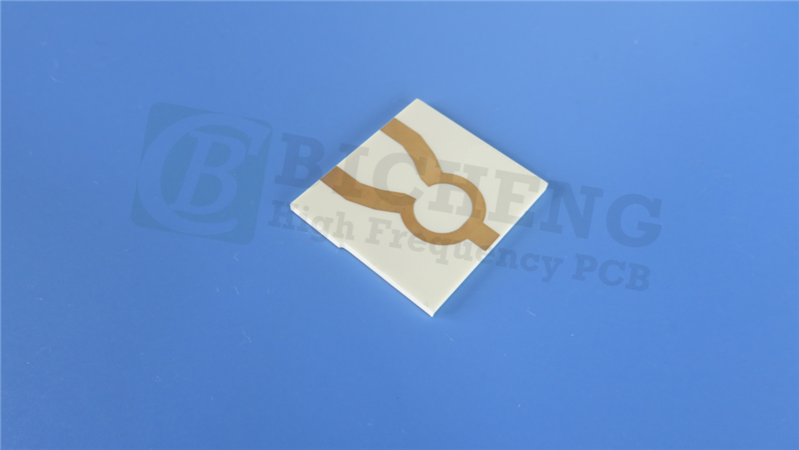

Rogers RT/duroid 6010.2LM laminates are ceramic-PTFE composites specifically engineered for electronic and microwave circuits that demand a high dielectric constant. With its high dielectric constants (Dk), these laminates enable circuit size reduction, providing more compact and efficient designs. They are particularly well-suited for applications operating within X-band frequencies or lower due to their low loss properties. |
|
|
|
|
|

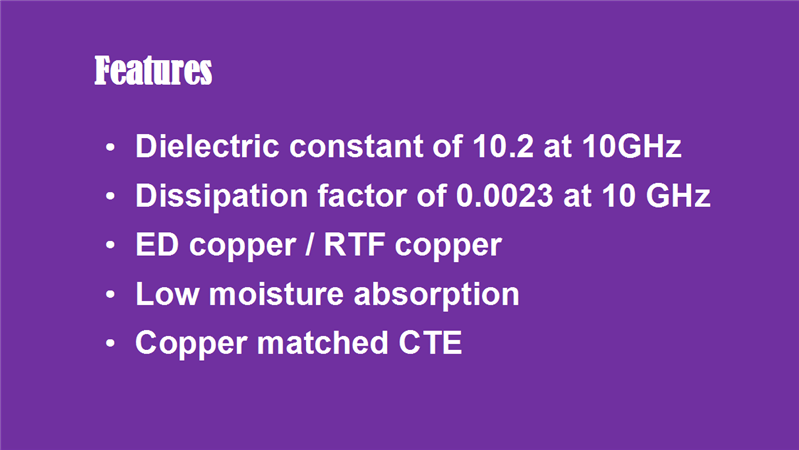

Features |
|
|
The RT/duroid 6010.2LM laminate offers several advantageous features: |
|
|
|
|
|
Dielectric Constant (Dk): With a value of 10.2 and a tight tolerance of +/- 0.25, the laminate ensures precise Dk control, resulting in consistent and repeatable circuit performance. |
|
|
|
|
|
Low Dissipation Factor: At just .0023 at 10 GHz, the laminate minimizes signal attenuation and distortion, facilitating reliable signal transmission. |
|
|
|
|
|
Copper Foil Options: The Rogers 6010.2LM laminate offers flexible copper foil options, allowing you to choose between Electro-Deposited (ED) copper and Reverse-Treated Foil (RTF) copper. This flexibility enables catering to specific requirements in PCB manufacturing, including considerations such as insertion loss and PIM performance. |
|
|
|
|
|
Moisture Absorption: The laminate exhibits low moisture absorption, enhancing its resistance to environmental conditions and preserving its electrical properties over time. |
|
|
|
|
|
Coefficient of Thermal Expansion (CTE): The CTE values for the XYZ axes are 24, 24, and 47 ppm/°C, respectively. This supports the reliability of plated through-holes in multi-layer boards by ensuring secure and robust connections between layers, contributing to the overall reliability of the circuit. |
|
|
|
|
|
|
|
|
|
|
|
PCB Capability |
|
|
Now let’s delve into our capabilities on 6010.2 materials. |
|
|
|
|
|
We can offer a variety of configurations to suit your needs, including Single Sided, Double Sided, Multi-layer, and Hybrid types to meet your specific design requirements. |
|
|
|
|
|
Copper weight options include 1oz (35µm) and 2oz (70µm) and dielectric thickness?includes 10mil (0.254mm), 25mil (0.635mm), 50mil (1.27mm), 75mil (1.90mm), and 100mil (2.54mm). |
|
|
|
|
|
We can accommodate the sizes up to 400mm X 500mm, and solder mask colors such as Green, Black, Blue, Yellow, Red etc are available. |
|
|
|
|
|
We also provide a diverse range of surface finish options, including Bare copper, HASL, ENIG, Immersion tin, Immersion Silver, OSP, Pure gold, and ENEPIG etc. |
|
|
| |
PCB Capability (RT/duroid 6010.2LM) |
PCB Material: |
Ceramic-PTFE composite |
Designator: |
RT/duroid 6010.2LM |
Dielectric constant: |
10.2 ±0.25 (process); 10.7 (design) |
Layer count: |
Single Sided, Double Sided, Multi-layer, Hybrid Construction |
Copper weight: |
1oz (35µm), 2oz (70µm) |
Dielectric thickness: |
10mil (0.254mm), 25mil (0.635mm), 50mil (1.27mm), 75mil (1.90mm), 100mil (2.54mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immersion tin, Immersion Silver, OSP, Pure gold, ENEPIG. |
|
|
|
|
|
|
|
Applications |
|
|
The utilization of RT/duroid 6010.2LM PCBs extends to various cutting-edge applications, including Patch Antennas, Satellite Communications Systems, Power Amplifiers, Aircraft Collision Avoidance Systems, and Ground Radar Warning Systems etc. |
|
|
|
|
|
