TF High Frequency PCB
|
|
|
|
|
|
Introduction |
|
|
Wangling’s TF laminates are a composite of microwave and temperature-resistant polytetrafluoroethylene (PTFE) resin material and ceramics. These laminates are free from fiberglass cloth and the dielectric constant is precisely adjusted by adjusting the ratio between ceramics and PTFE resin. With the application of special production processes, they demonstrate outstanding dielectric performance and offer a high level of reliability. |
|
|
|
|
|

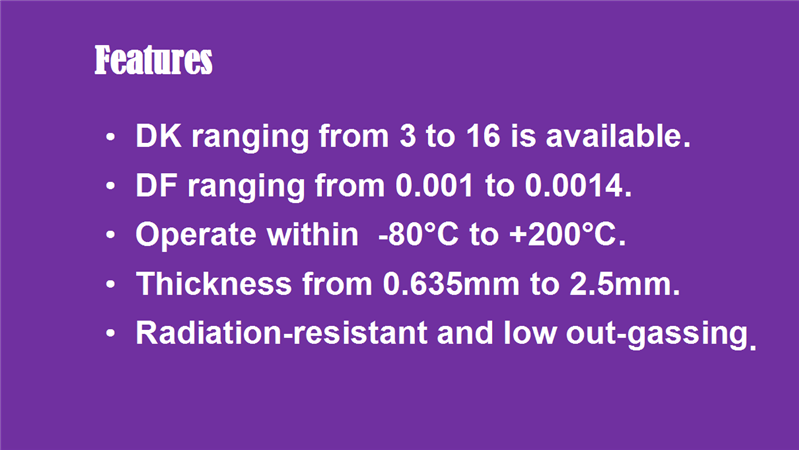

Features |
|
|
TF laminates exhibit a stable and wide range of dielectric constant, which ranges from 3 to 16, with common values including 3.0, 6.0, 9.2, 9.6, 10.2, and 16. |
|
|
|
|
|
TF laminates feature exceptionally low dissipation factor, with loss tangent values of 0.0010 for DK ranging from 3.0 to 9.5 at 10GHz, 0.0012 for DK from 9.6 to 11.0 at 10GHz, and 0.0014 for DK spanning 11.1 to 16.0 at 5GHz. |
|
|
|
|
|
With a long-term working temperature surpassing TP materials, they can operate within a wide range of -80°C to +200°C |
|
|
|
|
|
The laminates come in thickness options ranging from 0.635mm to 2.5mm, catering to various design requirements. |
|
|
|
|
|
They boast resistance to radiation and exhibit low outgassing properties. |
|
|
|
|
|
|
|
|
|
|
|
PCB Capability |
|
|
We provide a comprehensive range of PCB manufacturing capabilities to fulfill your specific requirements. |
|
|
|
|
|
At first, we can accommodate both Single Sided and Double Sided PCBs. |
|
|
|
|
|
Then you have the option to select from different copper weights, such as 1oz (35µm) and 2oz (70µm), to meet your conductivity needs. |
|
|
|
|
|
A?diverse selection of dielectric thicknesses are available in our house, ranging from 0.635mm to 2.5mm. |
|
|
|
|
|
Our manufacturing capabilities support PCB sizes up to 240mm X 240mm and various solder mask colours like Green, Black, Blue, Yellow, Red, and more. |
|
|
|
|
|
Additionally, we offer various surface finish options, including Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold, and ENEPIG etc. |
|
|
|
|
|
| |
PCB Capability (TF Series) |
PCB Material: |
Polyphenylene ether, ceramic |
Designation(TF Series) |
Designation |
DK |
DF |
TF300 |
3.0±0.06 |
0.0010 |
TF440 |
4.4±0.09 |
0.0010 |
TF600 |
6.0±0.12 |
0.0010 |
TF615 |
6.15±0.12 |
0.0010 |
TF920 |
9.2±0.18 |
0.0010 |
TF960 |
9.6±0.19 |
0.0012 |
TF1020 |
10.2±0.2 |
0.0012 |
TF1600 |
16.0±0.4 |
0.0014 |
Layer count: |
Single Sided, Double Sided PCB |
Copper weight: |
1oz (35µm), 2oz (70µm) |
Dielectric thickness(Dielectric thickness or overall thickness) |
0.635mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm |
PCB size: |
≤240mm X 240mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold, ENEPIG etc.. |
|
|
|
|
|
|
|
Applications |
|
|
TF high-frequency PCBs are utilized in applications of microwave and millimeter-wave domains, such as millimeter-wave radar sensors, antennas, transceivers, modulators, multiplexers, as well as power supply equipment and automatic control equipment. |
|
|
|
|
|
