Rogers’ RO3210 high-frequency circuit materials are ceramic-filled laminates reinforced with woven fiberglass, designed to deliver exceptional electrical efficiency and mechanical strength at competitive prices.

As an extension of the RO3000 series, RO3210 materials are specifically engineered to enhance mechanical stability, making them a standout choice in the industry.

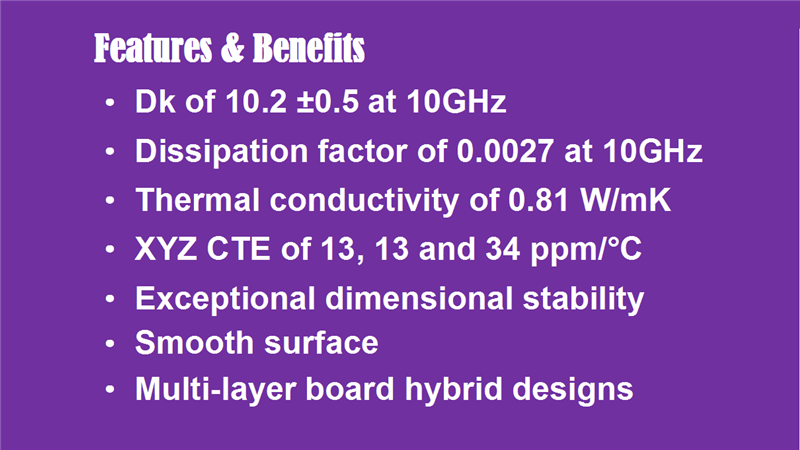

Features and Benefits

RO3210 materials boast a dielectric constant (Dk) of 10.2, with tolerance of ± 0.5, allowing for more compact designs and providing the possibility of miniaturization.

With a dissipation factor of .0027 at 10 GHz, it minimizes signal loss and distortion.

RO3210 features a high thermal conductivity of 0.81 W/mK and excellent CTE value on X, Y and Z axis.

The RO3210 material offers exceptional dimensional stability, elevating the precision and reliability of the final PCBs and bolstering production yields.

Its surface smoothness facilitates finer line etching tolerances, enabling the creation of intricate circuit designs with heightened accuracy.

Moreover, the RO3210 is adept at integrating into epoxy multi-layer board hybrid designs, providing a blend of versatility and reliability for intricate and sophisticated circuit configurations.

PCB Capabilities

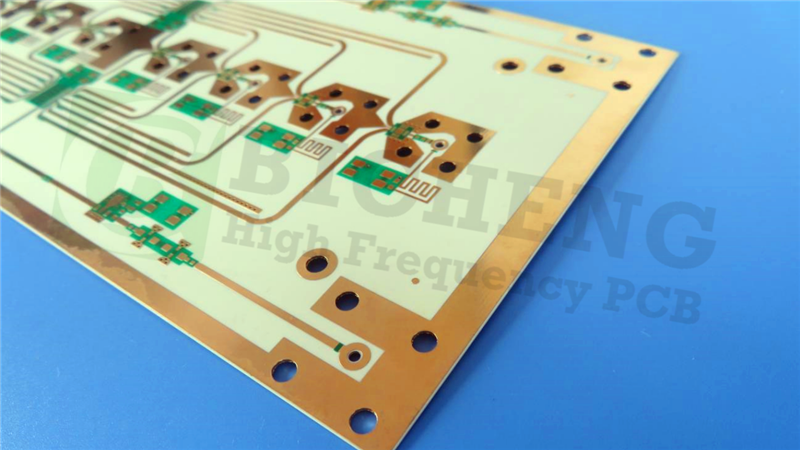

We specialize in manufacturing high-quality PCBs using RO3210 material, customized to meet a diverse range of specifications for your unique projects.

We can provide you with single-layer to complex multi-layer and hybrid PCB designs.

This board is available with two distinct copper weight options: 1oz (35µm) and 2oz (70µm), allowing you to choose the level of conductivity that aligns best with your specific requirements.

You have the choice between two thickness options: 25 mils (0.635mm) and 50 mils (1.27mm), providing versatility in design and functionality.

Our capabilities extend to PCBs with a maximum size of 400mm X 500mm, ensuring compatibility with a wide range of board dimensions.

We provide solder masks in various colors like green, black, blue, yellow and red etc.

A?variety of surface finishes such as bare copper, HASL, immersion tin, immersion silver, immersion gold, pure gold, ENEPIG, OSP are available in house.

Applications

RO3210 PCBs are extensively utilized in a diverse range of fields, including automotive collision avoidance systems, automotive GPS antennas, wireless telecommunications systems, microstrip patch antennas for wireless communications, and direct broadcast satellites etc.

Thank you. I’ll see you next time.
