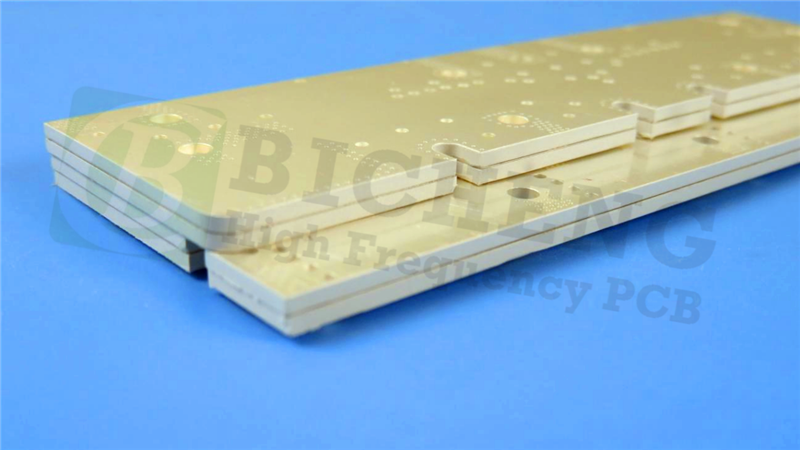

RT/duroid 6006 High Frequency PCB
|
|
|
|
|
|
Introduction |
|
|
Rogers RT/duroid 6006 stands out as a ceramic-PTFE composite meticulously crafted for electronic and microwave circuit applications that demand a superior dielectric constant. These materials are engineered to offer a high level of dielectric constant (Dk), facilitating the reduction of circuit size with remarkable efficiency. Known for their minimal loss characteristics, RT/duroid 6006 excels in operations within the X-band spectrum or lower frequencies. Its precise Dk and thickness control ensure consistent circuit performance. |
|
|
|
|
|

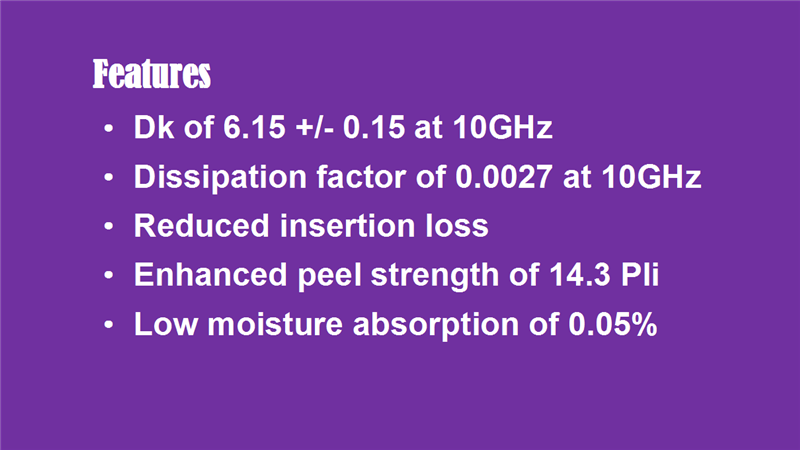

Features |
|
|
The outstanding characteristics of RT/duroid 6006 encompass a dielectric constant (Dk) of 6.15 +/- 0.15 and an impressively low dissipation factor of only 0.0027 at 10GHz, guaranteeing minimal signal attenuation. |
|
|
|
|
|
Clad with both standard and reverse treated electrodeposited copper foil, RT/duroid 6006?laminates offer choices for reducing insertion loss or enhancing peel strength. |
|
|
|
|
|
Furthermore, Their low moisture absorption rate and ability to support reliable plated through-holes in multi-layer boards elevate them as a top-tier choice for electronic and microwave circuits. |
|
|
|
|
|
|
|
|
|
|
|
PCB Capability (RT/duroid 6006) |
|
|
Our manufacturing capabilities are extensive and versatile, covering a wide range of specifications to meet diverse needs. |
|
|
|
|
|
We excel in producing PCBs with various layer counts, including Single Sided, Double Sided, Multi-layer, and Hybrid Configurations. |
|
|
|
|
|
You can choose from copper weights of 1oz (35µm) or 2oz (70µm) and select PCB thicknesses from standard 25 mils, 50 mils and 75 mils. Additional non-standard thicknesses available from 5 mils to 200 mils in increments of 5 mils. |
|
|
|
|
|
Our production capabilities extend to PCB sizes up to 400mm x 500mm, offering flexibility for different project requirements. |
|
|
|
|
|
When it comes to aesthetics and functionality, we provide a spectrum of solder mask colors such as Green, Black, Blue, Yellow, and Red, among others. |
|
|
|
|
|
Additionally, our surface finish options are comprehensive, including Bare copper, HASL, ENIG, Immersion silver, Immersion tin, ENEPIG, OSP, Pure gold, and so on. |
|
|
|
|
|
| |
PCB Capability (RT/duroid 6006) |
PCB Material: |
Ceramic-PTFE Composites |
Designation: |
RT/duroid 6006 |
Dielectric constant: |
6.15 |
Dissipation Factor |
0.0027 10GHz |
Layer count: |
Single Sided, Double Sided, Multi-layer, Hybrid Configuration |
Copper weight: |
1oz (35µm), 2oz (70µm) |
PCB thickness: |
5mil (0.127mm), 10mil (0.254mm), 25mil (0.635mm), 50mil (1.27mm), 75mil (1.905mm), 100mil(2.54mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, ENEPIG, OSP, Pure gold etc.. |
|
|
|
|
|
|
|
Applications |
|
|
RT/duroid 6006 PCBs find their place in a variety of applications, such as patch antennas, satellite communication systems, power amplifiers, aircraft collision avoidance systems, and ground radar warning systems etc. |
|
|
|
|
|
Thank you. I’ll see you next time. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
